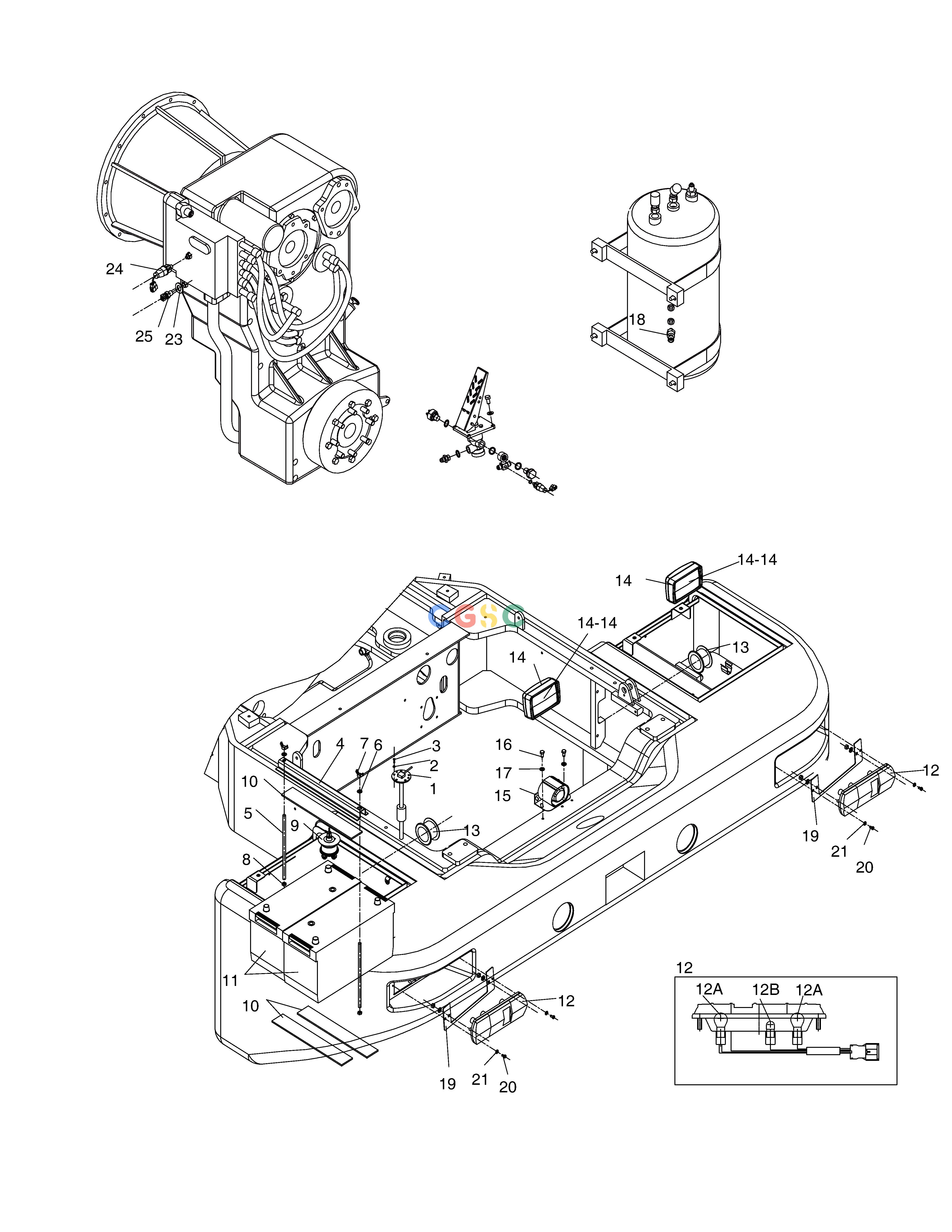

斗山零件查询ELECTRIC PARTS(6) - REAR FRAME-ZF T/M SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
358 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300619-01499
|
[-] |
|
|
| 1. |
301316-00031
|
[1] |
|
|
| 10. |
180304-00001
|
[3] |
|
|
| 11. |
300101-00236
|
[2] |
BATTERY
|
|
| 12. |
301005-00827
|
[2] |
LAMP,COMBINATION
|
301005-00827A
|
| 12. |
301005-00827A
|
[2] |
LAMP,COMBINATION;REAR
|
|
| 12A. |
300710-00029
|
[2] |
. BULB,HALOGEN
|
|
| 12B. |
300710-00004
|
[1] |
. BULB,HALOGEN;LAMP COMBINATIO
|
|
| 13. |
131009-00001
|
[2] |
|
|
| 14. |
301005-00099
|
[2] |
LAMP,WORKING
|
|
| 14-14. |
300710-00006
|
[1] |
. BULB,HALOGEN
|
|
| 15. |
K1054730
|
[1] |
BUZZER,BACK
|
|
| 16. |
S0508653
|
[2] |
BOLT
|
|
| 17. |
S5010513
|
[3] |
WASHER
|
|
| 18. |
301309-00104
|
[1] |
SENSOR,PRESSURE
|
|
| 18. |
301309-00217
|
[1] |
SENSOR,PRESSURE
|
|
| 19. |
110406-02430
|
[2] |
|
|
| 2. |
S5000213
|
[5] |
. WASHER
|
|
| 20. |
S3458953
|
[4] |
SCREW M6X1.0X12
|
|
| 21. |
S5010313
|
[4] |
WASHER
|
|
| 23. |
K1042239D1
|
[1] |
SEAL
|
|
| 24. |
301413-00087A
|
[1] |
|
|
| 25. |
301317-00105
|
[1] |
SENSOR
|
|
| 3. |
S3450853
|
[5] |
SCREW
|
|
| 4. |
K1040910
|
[1] |
|
|
| 5. |
120112-00003
|
[2] |
|
|
| 6. |
S5010613
|
[2] |
WASHER
|
|
| 7. |
S4540603
|
[2] |
NUT;WING M10X1.5
|
|
| 8. |
S4012633
|
[2] |
NUT
|
|
| 9. |
K1054731
|
[1] |
|
|
