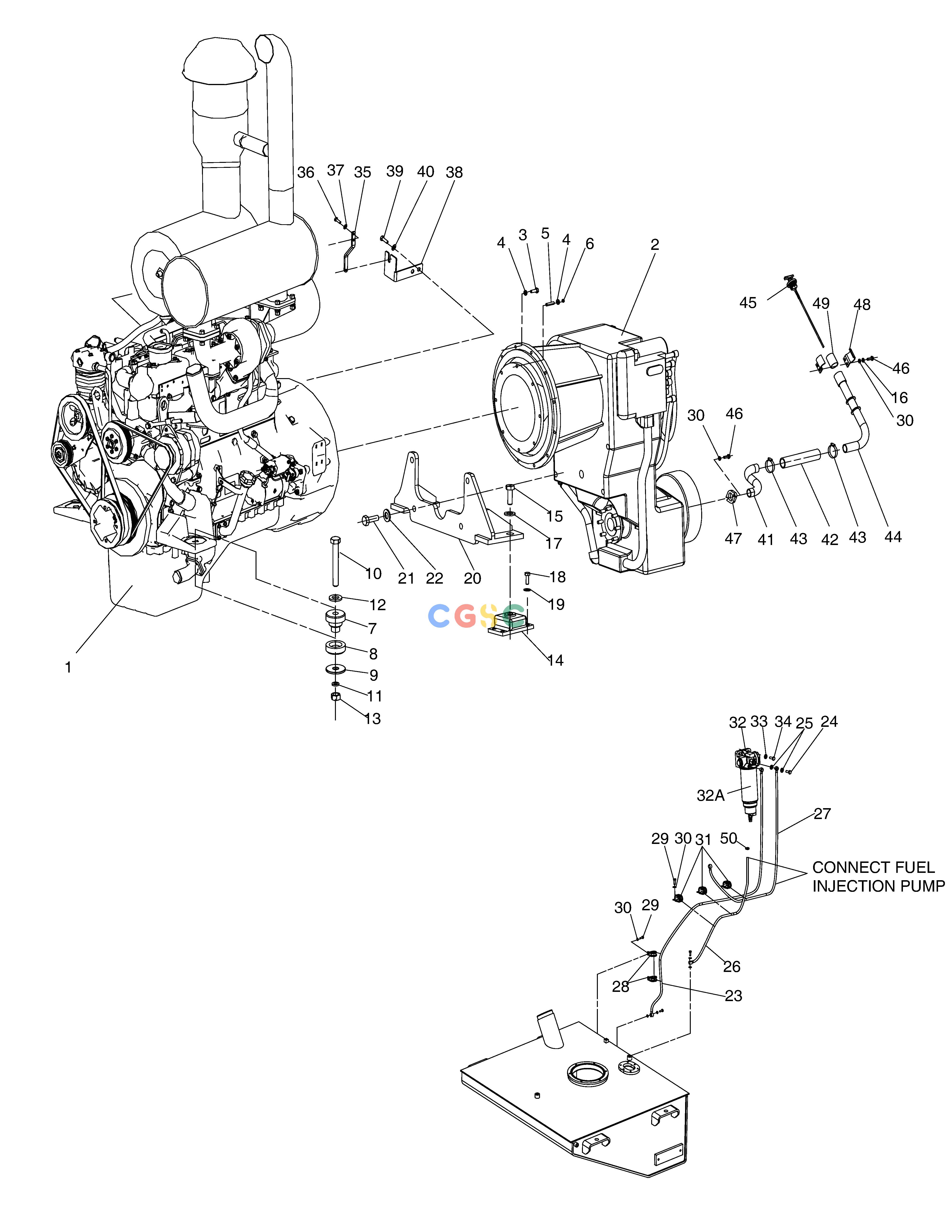

斗山零件查询ENGINE & TRANSMISSION ASS'Y-ZF T/M SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
415 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
150109-00740
|
[-] |
ENGINE & TRANSMISSION ASSY
|
|
| 1. |
150109-01254A
|
[1] |
ENGINE ASSY;DOOSAN
|
|
| 10. |
S0776063
|
[2] |
BOLT,HEX
|
|
| 11. |
S5103303
|
[2] |
WASHER;SPRING
|
|
| 12. |
S5011313
|
[2] |
WASHER
|
|
| 13. |
S4033333
|
[2] |
NUT M24X2.0
|
|
| 14. |
K1040762A
|
[2] |
CUSHION
|
|
| 15. |
K1042168A
|
[2] |
BOLT
|
|
| 16. |
S5102503
|
[2] |
. WASHER
|
|
| 17. |
S5011413
|
[2] |
WASHER;PLAIN
|
|
| 18. |
S0521363
|
[8] |
BOLT
|
|
| 19. |
S5010913
|
[8] |
WASHER
|
|
| 2. |
130902-02102
|
[1] |
TRANSMISSION GROUP
|
|
| 20. |
110406-01719B
|
[1] |
BRACKET
|
|
| 21. |
S0527563
|
[4] |
BOLT,HEX
|
|
| 22. |
S5011113
|
[4] |
. WASHER
|
|
| 23. |
420107-00218
|
[1] |
HOSE
|
|
| 24. |
120112-00781
|
[5] |
BOLT
|
|
| 25. |
K1042239D1
|
[10] |
SEAL
|
|
| 26. |
420107-00219A
|
[1] |
HOSE
|
|
| 27. |
420107-00220
|
[1] |
HOSE
|
|
| 28. |
124-00208D2
|
[2] |
CLAMP
|
|
| 29. |
S0508653
|
[4] |
BOLT
|
|
| 3. |
120112-00779
|
[12] |
BOLT
|
|
| 30. |
S5010513
|
[6] |
WASHER
|
|
| 31. |
DS2876006
|
[2] |
CLIP
|
|
| 32. |
400403-00301
|
[1] |
FILTER,FUEL
|
|
| 32A. |
400403-00222
|
[1] |
. FILTER,FUEL
|
|
| 33. |
S0512463
|
[2] |
BOLT
|
|
| 34. |
S5010603
|
[2] |
WASHER
|
|
| 35. |
110406-01720
|
[1] |
BRACKET
|
|
| 36. |
NA00114
|
[2] |
BOULON A 6 PANS
|
|
| 37. |
NA01315
|
[2] |
RONDELLE
|
|
| 38. |
110406-01721A
|
[1] |
BRACKET
|
|
| 39. |
S0514853
|
[2] |
BOLT
|
|
| 4. |
S5102603
|
[20] |
. WASHER
|
|
| 40. |
S5010703
|
[2] |
WASHER;PLAIN
|
|
| 41. |
420204-00277B
|
[1] |
PIPE
|
|
| 41. |
420204-00277A
|
[1] |
PIPE
|
420204-00277B
|
| 42. |
DS2076003
|
[1] |
HOSE,OIL
|
|
| 43. |
S8450023
|
[2] |
CLAMP
|
|
| 44. |
420204-00310A
|
[1] |
PIPE
|
|
| 45. |
800217-00046
|
[1] |
INDICATOR
|
|
| 46. |
S0509053
|
[4] |
. BOLT
|
|
| 47. |
400602-00449
|
[1] |
GASKET
|
|
| 48. |
K1045783A
|
[2] |
CLAMP
|
|
| 49. |
180308-00295
|
[1] |
RUBBER
|
|
| 5. |
120112-00780A
|
[8] |
BOLT
|
|
| 50. |
S8450016
|
[1] |
. CLAMP
|
|
| 6. |
S4012633
|
[8] |
NUT
|
|
| 7. |
K1040755A
|
[2] |
CUSHION,RUBBER
|
|
| 8. |
K1040758
|
[2] |
CUSHION,RUBBER
|
|
| 9. |
K1040759
|
[2] |
WASHER
|
|
