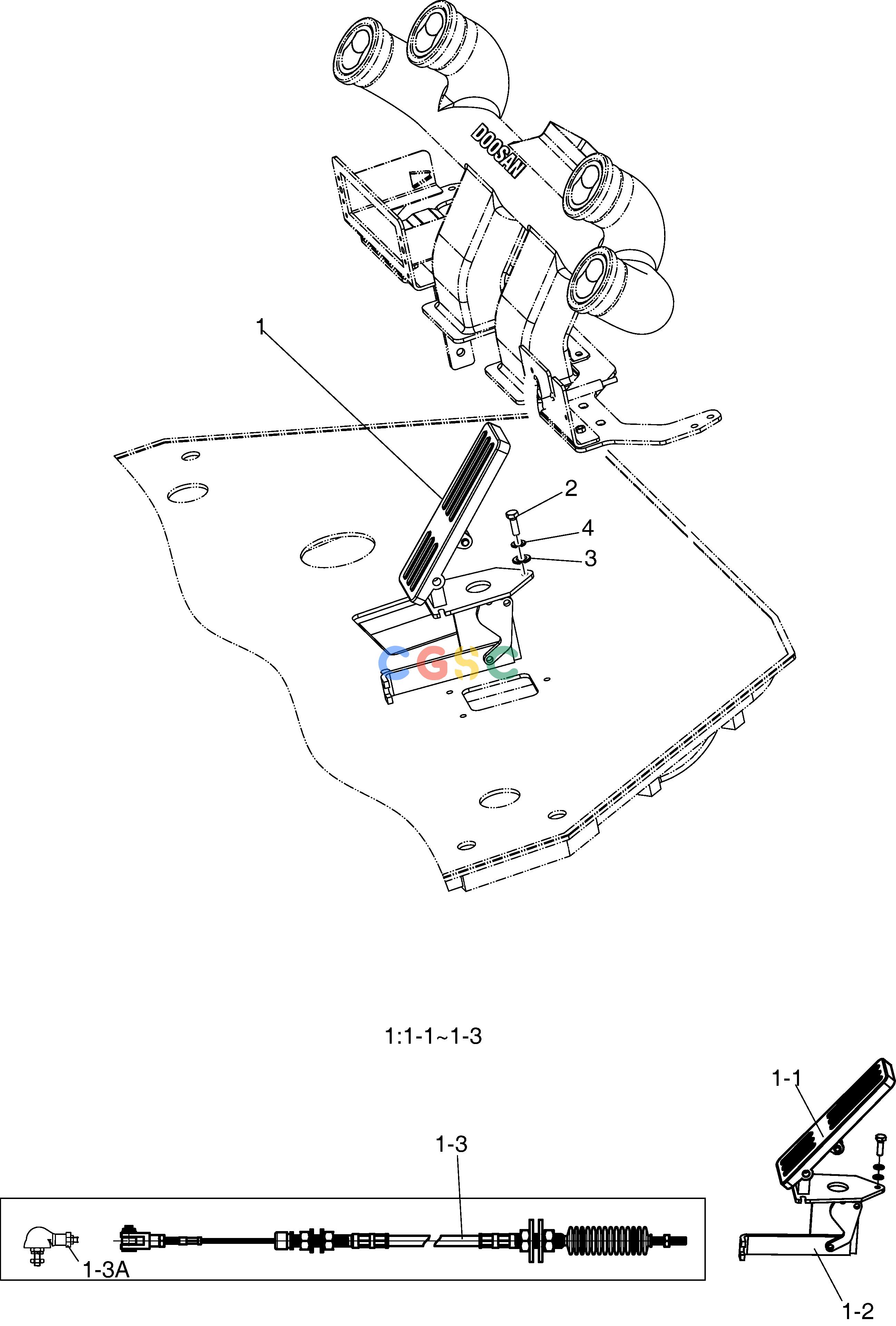

斗山零件查询ENGINE CONTROL ASS'Y SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
531 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
150126-00052
|
[-] |
CONTROL,ENGINE
|
|
| -. |
150126-00052A
|
[-] |
CONTROL,ENGINE
|
|
| -. |
150126-00052B
|
[-] |
CONTROL,ENGINE
|
|
| 1. |
220105-00071
|
[1] |
PEDAL
|
220105-00071A
|
| 1. |
220105-00071A
|
[1] |
PEDAL
|
220105-00071B
|
| 1. |
220105-00071B
|
[1] |
PEDAL
|
|
| 1-1. |
220105-00130
|
[1] |
. PEDAL
|
|
| 1-2. |
110406-03502
|
[1] |
. BRACKET
|
|
| 1-3. |
130712-01732
|
[1] |
. SHAFT
|
|
| 1-3A. |
110601-00030
|
[1] |
.. JOINT,BALL
|
|
| 2. |
S0505053
|
[3] |
BOLT
|
|
| 3. |
S5010303
|
[3] |
WASHER
|
|
| 4. |
S5102303
|
[3] |
. WASHER
|
|
