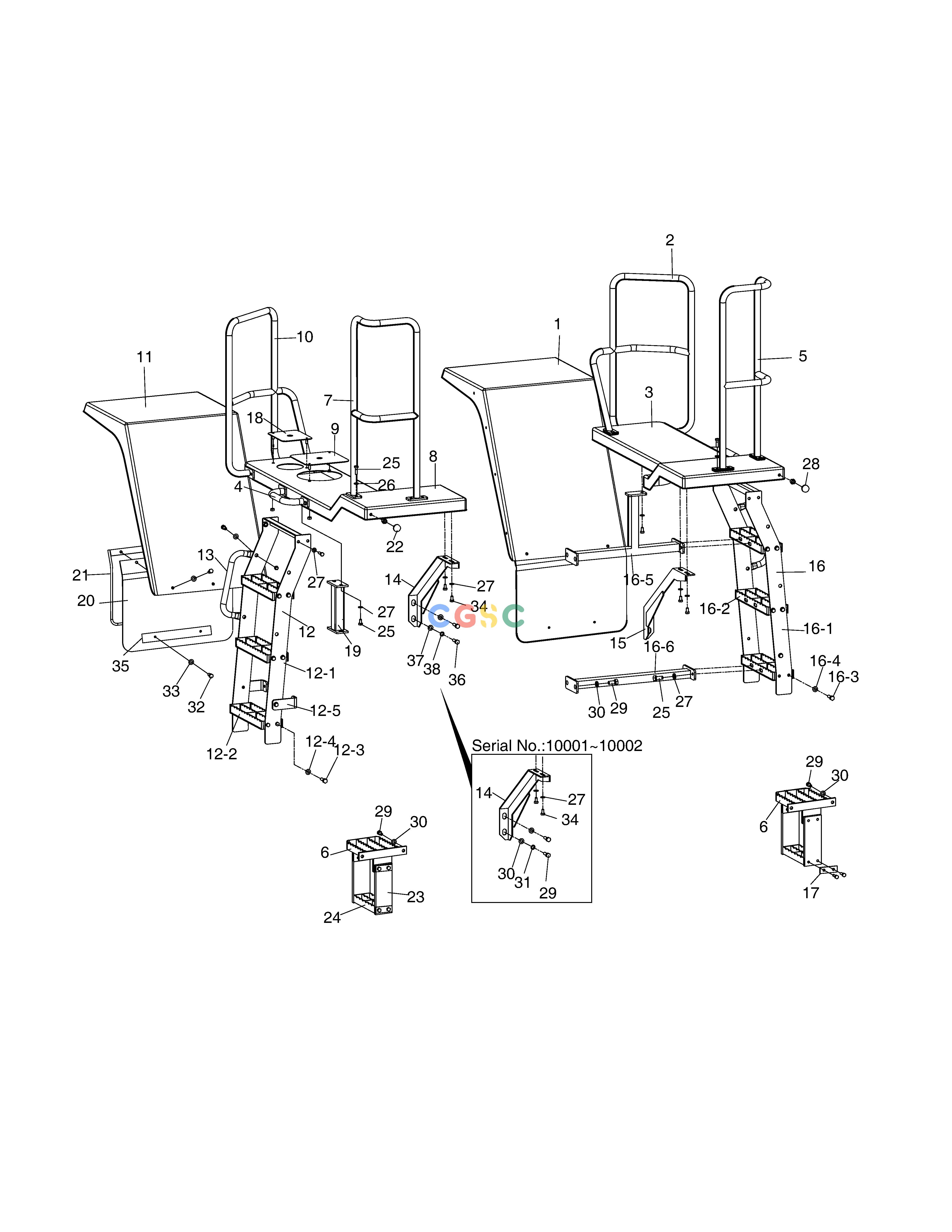

斗山零件查询FENDER & LADDER SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
462 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
180307-00374
|
[-] |
FENDER & LADDER ASSY
|
|
| 1. |
180307-00372A
|
[1] |
FENDER;RIGHT
|
|
| 10. |
101582-00210A
|
[1] |
RAIL,HAND;LEFT,FRONT
|
101582-00210B
|
| 10. |
101582-00210B
|
[1] |
RAIL,HAND
|
|
| 11. |
180307-00373A
|
[1] |
FENDER;LEFT
|
|
| 12. |
110932-00087A
|
[1] |
LADDER;LEFT
|
110932-00087B
|
| 12. |
110932-00087B
|
[1] |
LADDER
|
|
| 12-1. |
250201-02331
|
[1] |
. PLATE
|
250201-02331A
|
| 12-1. |
250201-02331A
|
[1] |
. PLATE
|
|
| 12-2. |
220107-00021A
|
[3] |
. REST,FOOT
|
|
| 12-3. |
S0512263
|
[14] |
BOLT
|
|
| 12-3. |
S0512263
|
[16] |
BOLT
|
|
| 12-4. |
S5010613
|
[14] |
WASHER
|
|
| 12-4. |
S5010613
|
[16] |
WASHER
|
|
| 12-5. |
250201-01670
|
[2] |
. PLATE
|
250201-01670A
|
| 12-5. |
250201-01670A
|
[2] |
. PLATE
|
|
| 13. |
101582-00211
|
[2] |
RAIL,HAND
|
|
| 14. |
110406-00115
|
[1] |
BRACKET;LEFT
|
|
| 14. |
110406-02634
|
[1] |
BRACKET;LEFT
|
|
| 15. |
110406-00116A
|
[1] |
BRACKET;RIGHT
|
|
| 15. |
110406-02630
|
[1] |
BRACKET;RIGHT
|
|
| 16. |
110932-00088A
|
[1] |
LADDER
|
110932-00088B
|
| 16. |
110932-00088B
|
[1] |
LADDER
|
|
| 16-1. |
250201-02331
|
[1] |
. PLATE
|
|
| 16-1. |
250201-02531
|
[1] |
. PLATE
|
|
| 16-2. |
220107-00021A
|
[3] |
. REST,FOOT
|
|
| 16-3. |
S0512263
|
[16] |
BOLT
|
|
| 16-3. |
S0512263
|
[8] |
BOLT
|
|
| 16-4. |
S5010613
|
[12] |
WASHER
|
|
| 16-4. |
S5010613
|
[16] |
WASHER
|
|
| 16-5. |
110406-01733A
|
[1] |
. BRACKET
|
110406-01733B
|
| 16-5. |
110406-01733B
|
[1] |
. BRACKET
|
|
| 16-6. |
110406-01734B
|
[1] |
. BRACKET
|
|
| 16-6. |
110406-01734A
|
[1] |
. BRACKET
|
110406-01734B
|
| 17. |
250201-01629
|
[8] |
PLATE
|
|
| 18. |
250201-01681A
|
[1] |
PLATE
|
|
| 19. |
110406-01735
|
[1] |
BRACKET
|
110406-01735A
|
| 19. |
110406-01735A
|
[1] |
BRACKET
|
|
| 2. |
101582-00206A
|
[1] |
RAIL,HAND
|
101582-00206B
|
| 2. |
101582-00206B
|
[1] |
RAIL,HAND
|
|
| 20. |
180308-00299A
|
[2] |
RUBBER
|
180308-00299B
|
| 20. |
180308-00299B
|
[2] |
RUBBER
|
|
| 21. |
110406-02406
|
[2] |
BRACKET
|
|
| 22. |
K1041151
|
[2] |
RUBBER
|
|
| 23. |
110926-00059
|
[4] |
HANGER
|
|
| 24. |
220107-00027
|
[2] |
REST,FOOT
|
|
| 25. |
S0512063
|
[37] |
WASHER
|
|
| 25. |
S0512063
|
[51] |
WASHER
|
|
| 26. |
S5010613
|
[32] |
WASHER
|
|
| 26. |
S5010613
|
[47] |
WASHER
|
|
| 27. |
DS0401190
|
[15] |
WASHER
|
|
| 27. |
DS0401190
|
[17] |
WASHER
|
|
| 28. |
S0512363
|
[16] |
BOLT
|
|
| 29. |
S0515063
|
[16] |
BOLT
|
|
| 29. |
S0515063
|
[20] |
BOLT
|
|
| 3. |
101561-00019A
|
[1] |
PLATFORM;RIGHT
|
101561-00019B
|
| 3. |
101561-00019B
|
[1] |
PLATFORM
|
|
| 30. |
S5010713
|
[16] |
WASHER;PLAIN
|
|
| 30. |
S5010713
|
[20] |
WASHER;PLAIN
|
|
| 31. |
S5102703
|
[4] |
WASHER
|
|
| 32. |
S0508853
|
[10] |
. BOLT
|
|
| 33. |
S5010513
|
[10] |
WASHER
|
|
| 34. |
S0511853
|
[4] |
BOLT
|
|
| 35. |
250201-02362
|
[2] |
PLATE
|
|
| 36. |
S0521363
|
[4] |
BOLT
|
|
| 37. |
S5010903
|
[4] |
WASHER;PLAIN
|
|
| 38. |
S5102903
|
[4] |
WASHER
|
|
| 4. |
101582-00207A
|
[2] |
RAIL,HAND
|
|
| 5. |
101582-00208A
|
[1] |
RAIL,HAND;RIGHT,REAR
|
101582-00208B
|
| 5. |
101582-00208B
|
[1] |
RAIL,HAND
|
|
| 6. |
250106-00420
|
[2] |
PLATE,FLOOR
|
|
| 7. |
101582-00209A
|
[1] |
RAIL,HAND;LEFT,REAR
|
101582-00209B
|
| 7. |
101582-00209B
|
[1] |
RAIL,HAND
|
|
| 8. |
101561-00020A
|
[1] |
PLATFORM;LEFT
|
|
| 8. |
101561-00053
|
[1] |
PLATFORM;LEFT
|
101561-00053A
|
| 8. |
101561-00053A
|
[1] |
PLATFORM;LEFT
|
|
| 9. |
250201-01986
|
[1] |
PLATE
|
|
