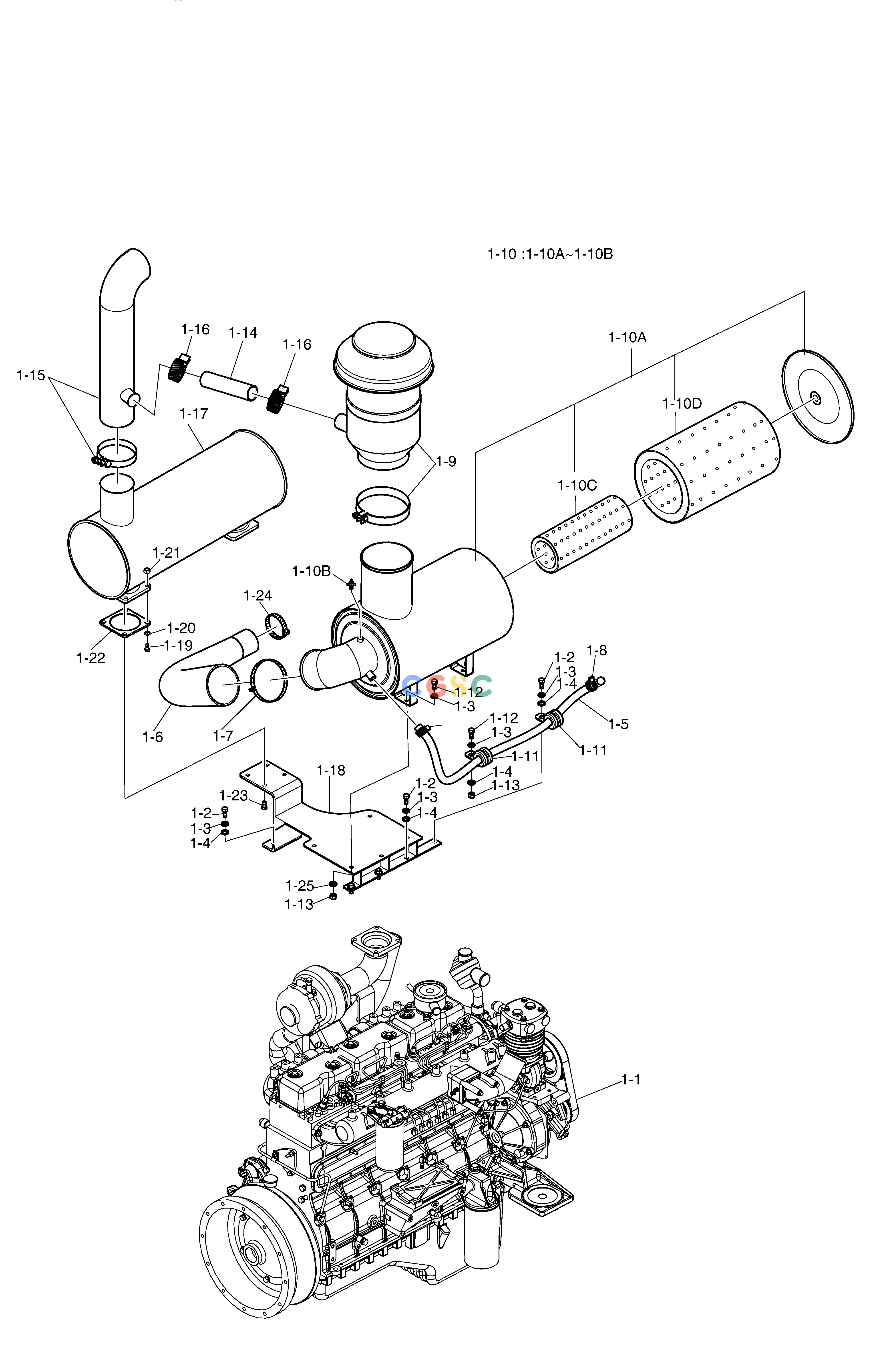

斗山零件查询ENGINE-ZF T/M SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
547 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
150109-01254A
|
[-] |
ENGINE ASSY;DOOSAN
|
|
| 1-1. |
DE08-PBL00
|
[1] |
. ENGINE ASSY;DISD DL507 SAE2
|
|
| 1-10. |
400414-00391A
|
[1] |
. CLEANER ASSY,AIR
|
|
| 1-10A. |
400414-00392
|
[1] |
.. CLEANER ASSY,AIR
|
|
| 1-10B. |
800217-00103
|
[1] |
.. INDICATOR,DUST
|
|
| 1-10C. |
400504-00209
|
[1] |
ELEMENT,AIR CLEANER
|
|
| 1-10D. |
400504-00210
|
[1] |
.. ELEMENT,AIR CLEANER
|
|
| 1-11. |
124-00208D5
|
[2] |
CLIP
|
|
| 1-12. |
S0512253
|
[5] |
BOLT M10X1.5X30
|
|
| 1-13. |
S4012633
|
[5] |
NUT
|
|
| 1-14. |
420108-01089
|
[1] |
. HOSE
|
|
| 1-15. |
420203-00427
|
[1] |
. PIPE,EXHAUST
|
|
| 1-16. |
S8450044
|
[2] |
CLAMP;HOSE
|
|
| 1-17. |
240103-00645
|
[1] |
MUFFLER
|
|
| 1-18. |
110406-03019
|
[1] |
. BRACKET
|
|
| 1-19. |
S0760763
|
[4] |
BOLT
|
|
| 1-2. |
S0511853
|
[7] |
BOLT
|
|
| 1-20. |
S5010703
|
[8] |
WASHER;PLAIN
|
|
| 1-21. |
120311-00162
|
[8] |
NUT,LOCK
|
|
| 1-22. |
400602-00715
|
[1] |
GASKET
|
|
| 1-23. |
S0760563
|
[4] |
BOLT
|
|
| 1-24. |
S8450066
|
[1] |
CLAMP;HOSE
|
|
| 1-25. |
DS0401063
|
[4] |
WASHER,PLAIN
|
|
| 1-3. |
S5102603
|
[12] |
. WASHER
|
|
| 1-4. |
S5010613
|
[8] |
WASHER
|
|
| 1-5. |
420108-01090
|
[1] |
. HOSE
|
|
| 1-6. |
420108-01091
|
[1] |
. HOSE
|
|
| 1-7. |
S8450127
|
[1] |
CLAMP;HOSE
|
|
| 1-8. |
S8450023
|
[2] |
CLAMP
|
|
| 1-9. |
400415-00033
|
[1] |
. CLEANER,PRE
|
|
