斗山零件查询FRAME SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
211 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

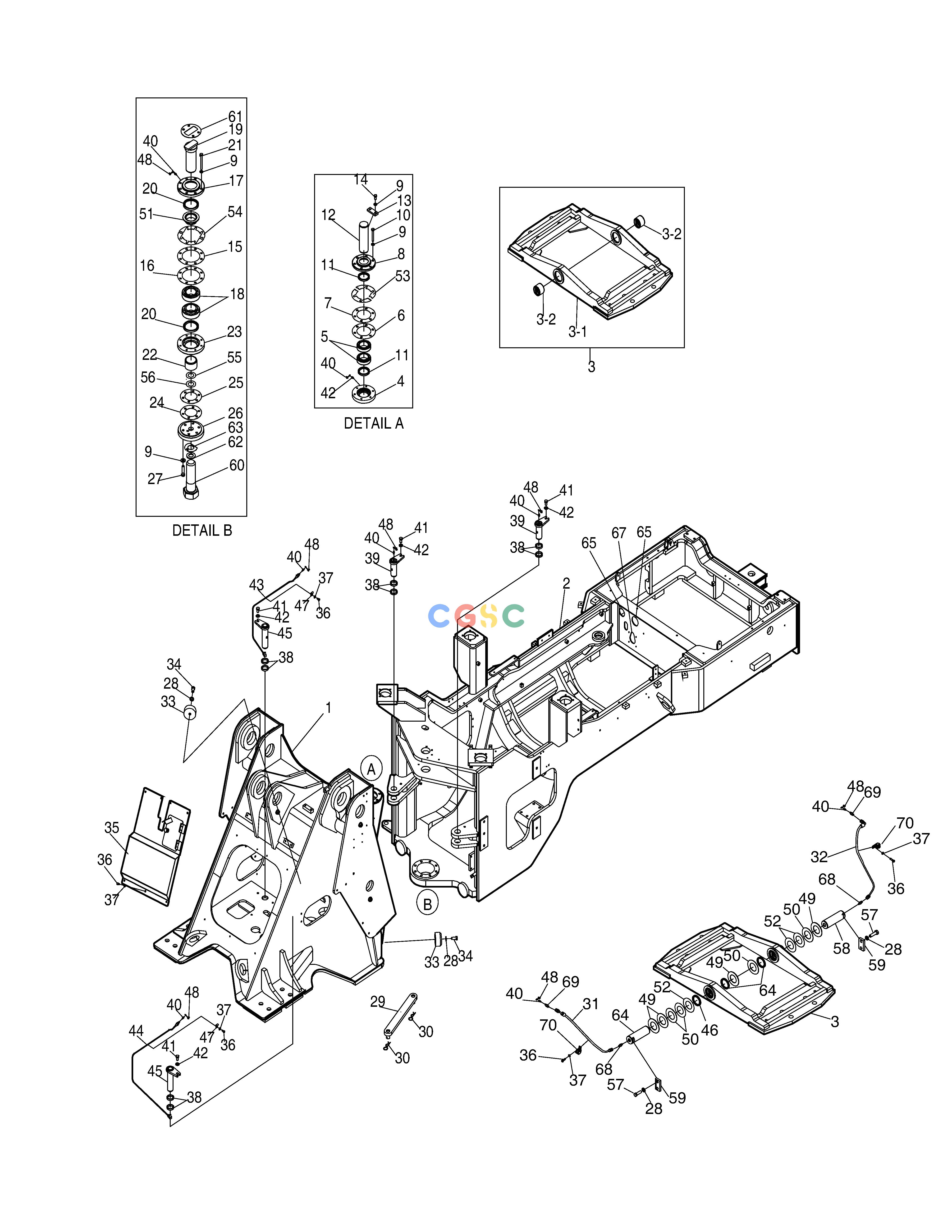

160609-02530
|
[-] |
FRAME ASSY
|
|
| 1. |
160612-00116C
|
[1] |
FRAME,FRONT
|
160612-00116E
|
| 1. |
160612-00116E
|
[1] |
FRAME,FRONT
|
|
| 1. |
160612-00116G
|
[1] |
FRAME,FRONT
|
|
| 10. |
S0561563
|
[6] |
BOLT
|
|
| 11. |
DS5501045
|
[2] |
SEAL;DUST
|
|
| 12. |
K1042093
|
[1] |
PIN;UPPER HINGE
|
|
| 13. |
K1042094
|
[1] |
PLATE
|
|
| 14. |
S0515253
|
[6] |
. BOLT
|
|
| 15. |
110947-00051
|
[8] |
SHIM
|
|
| 16. |
K1042096
|
[4] |
SHIM
|
|
| 17. |
K1042097
|
[1] |
CAP;END
|
|
| 18. |
K1042340
|
[2] |
BEARING
|
|
| 19. |
120501-01817
|
[1] |
PIN
|
|
| 2. |
160615-00219C
|
[1] |
FRAME,REAR
|
|
| 2. |
160615-00219G
|
[1] |
FRAME,REAR
|
|
| 2. |
160615-00219H
|
[1] |
FRAME,REAR
|
|
| 20. |
DS5501046
|
[2] |
SEAL;DUST
|
|
| 21. |
S0562163
|
[8] |
BOLT,HEX
|
|
| 22. |
110951-00678
|
[1] |
SPACER
|
|
| 23. |
K1042100
|
[1] |
CAP;END
|
|
| 24. |
110947-00050
|
[8] |
SHIM
|
|
| 25. |
K1042102
|
[4] |
SHIM
|
|
| 26. |
110508-08824
|
[1] |
COVER
|
|
| 27. |
S0560566
|
[6] |
BOLT
|
|
| 28. |
S5010903
|
[6] |
WASHER;PLAIN
|
|
| 29. |
K1042104
|
[1] |
PLATE
|
|
| 3. |
160611-00051
|
[1] |
FRAME,CHASSIS ASSY
|
|
| 3-1. |
160611-00052
|
[1] |
. FRAME,CHASSIS
|
|
| 3-2. |
130702-00073
|
[2] |
. BUSHING
|
|
| 30. |
K1042105
|
[2] |
PIN
|
|
| 31. |
420105-00943
|
[1] |
HOSE,HYDRAULIC
|
|
| 32. |
420105-00944
|
[1] |
HOSE,HYDRAULIC
|
|
| 33. |
110956-00185
|
[2] |
STOPPER;PLASTIC
|
|
| 34. |
S0521363
|
[4] |
BOLT
|
|
| 35. |
110508-05391
|
[1] |
COVER
|
|
| 36. |
S0508653
|
[9] |
BOLT
|
|
| 37. |
S5010513
|
[9] |
WASHER
|
|
| 38. |
K1042108
|
[8] |
SPACER;HINGE
|
|
| 39. |
120501-00888A
|
[2] |
PIN,STEER
|
|
| 4. |
K1042089
|
[1] |
CAP;END
|
|
| 40. |
S6710041
|
[7] |
NIPPLE,GREASE
|
|
| 41. |
S0518053
|
[4] |
BOLT
|
|
| 42. |
S5010813
|
[4] |
WASHER;PLAIN
|
|
| 43. |
420205-00103
|
[1] |
PIPE,GREASE
|
|
| 44. |
420205-00104
|
[1] |
PIPE,GREASE
|
|
| 45. |
120501-00889A
|
[2] |
PIN,STEER
|
|
| 46. |
DS5501047
|
[4] |
SEAL;DUST
|
|
| 47. |
2124-1027D19
|
[2] |
CLIP;PIPE
|
|
| 48. |
160-00020
|
[7] |
CAP
|
|
| 49. |
110947-00046
|
[3] |
SHIM
|
|
| 5. |
K1042106
|
[2] |
BEARING
|
|
| 50. |
110947-00047
|
[4] |
SHIM
|
|
| 51. |
110951-00116
|
[1] |
SPACER
|
|
| 52. |
110947-00072
|
[4] |
SHIM
|
|
| 53. |
110947-00074
|
[4] |
SHIM
|
|
| 54. |
110947-00075
|
[4] |
SHIM
|
|
| 55. |
110947-00213
|
[4] |
SHIM
|
|
| 56. |
110947-00214
|
[5] |
SHIM
|
|
| 57. |
S0565263
|
[2] |
BOLT
|
|
| 58. |
120501-02015A
|
[1] |
PIN
|
|
| 59. |
250201-00947A
|
[2] |
PLATE
|
|
| 6. |
K1042090
|
[4] |
SHIM
|
|
| 60. |
120112-00612
|
[1] |
BOLT
|
|
| 61. |
250117-00065
|
[1] |
PLATE,FIXED
|
|
| 62. |
120810-00020
|
[1] |
WASHER
|
|
| 63. |
120813-00019
|
[1] |
WASHER,STOP
|
|
| 64. |
120501-00705B
|
[1] |
PIN
|
|
| 65. |
131009-00060
|
[2] |
BUSHING
|
|
| 67. |
131009-00061
|
[1] |
BUSHING
|
|
| 68. |
430201-00947
|
[2] |
ADAPTER
|
|
| 69. |
430201-00946
|
[2] |
ADAPTER
|
|
| 7. |
110947-00052
|
[8] |
SHIM
|
|
| 70. |
124-00208D2
|
[2] |
CLAMP
|
|
| 8. |
K1042092
|
[1] |
CAP;END
|
|
| 9. |
120804-00023
|
[26] |
WASHER,HARD
|
|
