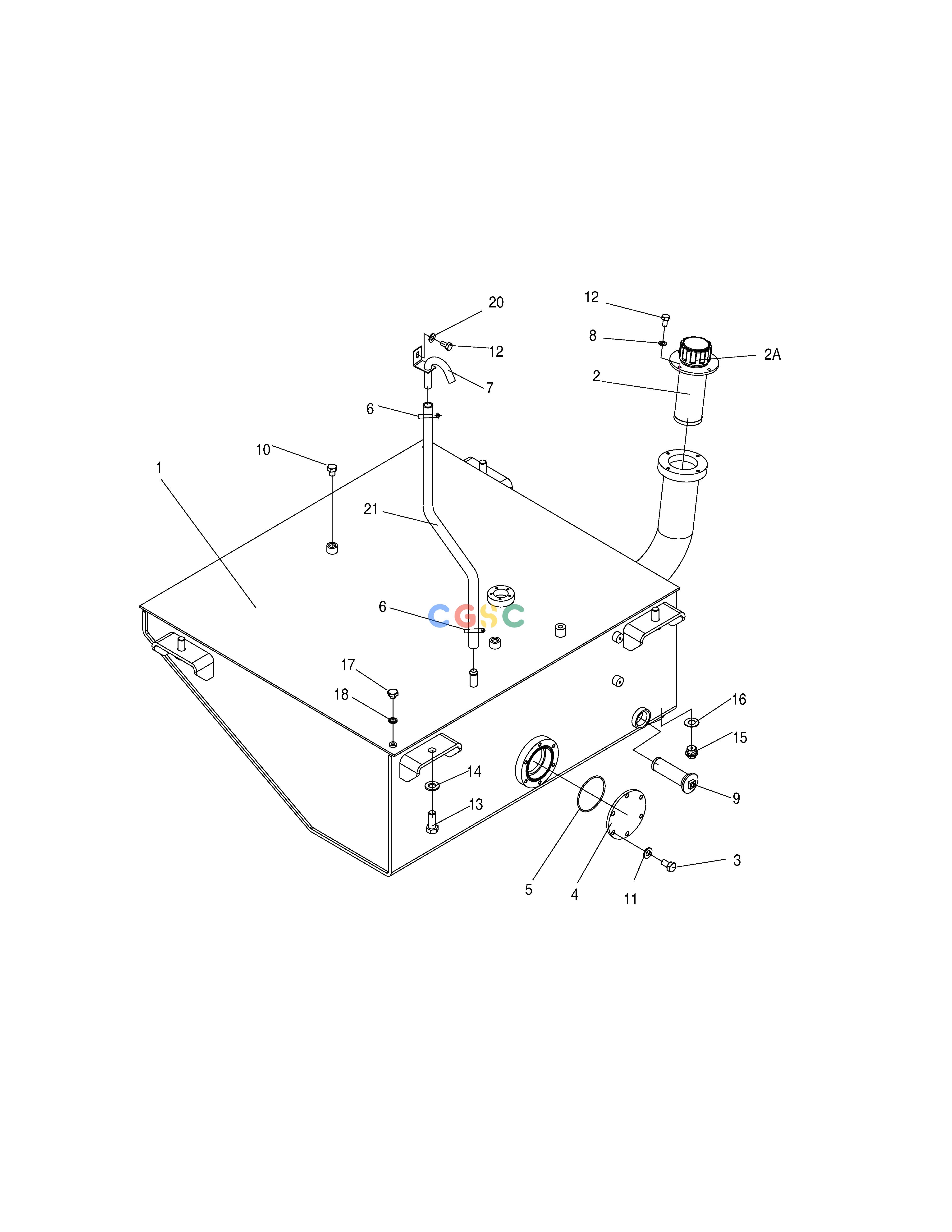

斗山零件查询FUEL TANK SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
979 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
450103-00383
|
[-] |
|
|
| 1. |
450103-00274B
|
[1] |
TANK,FUEL
|
|
| 10. |
S0520763
|
[2] |
BOLT
|
|
| 11. |
S5010613
|
[6] |
WASHER
|
|
| 12. |
S0508653
|
[5] |
BOLT
|
|
| 13. |
S0527566
|
[4] |
BOLT M20X2.5X45
|
|
| 14. |
DS0401207
|
[4] |
WASHER,HARD
|
|
| 15. |
430221-00195
|
[1] |
PLUG
|
|
| 16. |
K1041989
|
[1] |
WASHER
|
|
| 17. |
K1055643
|
[2] |
PLUG
|
|
| 18. |
K1042239D6
|
[2] |
RING;SEAL
|
|
| 2. |
400403-00145
|
[1] |
FILTER,FUEL
|
|
| 20. |
S5000513
|
[1] |
. WASHER;PLAIN
|
|
| 21. |
420108-00558
|
[1] |
|
|
| 2A. |
400505-00053
|
[1] |
|
|
| 3. |
S0511853
|
[6] |
BOLT
|
|
| 4. |
K1041051A
|
[1] |
FLANGE
|
|
| 5. |
S8011050
|
[1] |
O-RING
|
|
| 6. |
S8450016
|
[2] |
. CLAMP
|
|
| 7. |
420204-00183
|
[1] |
PIPE,FUEL
|
|
| 8. |
S5020513
|
[4] |
WASHER
|
|
| 9. |
400408-00018
|
[1] |
FILTER,SUCTION
|
|
