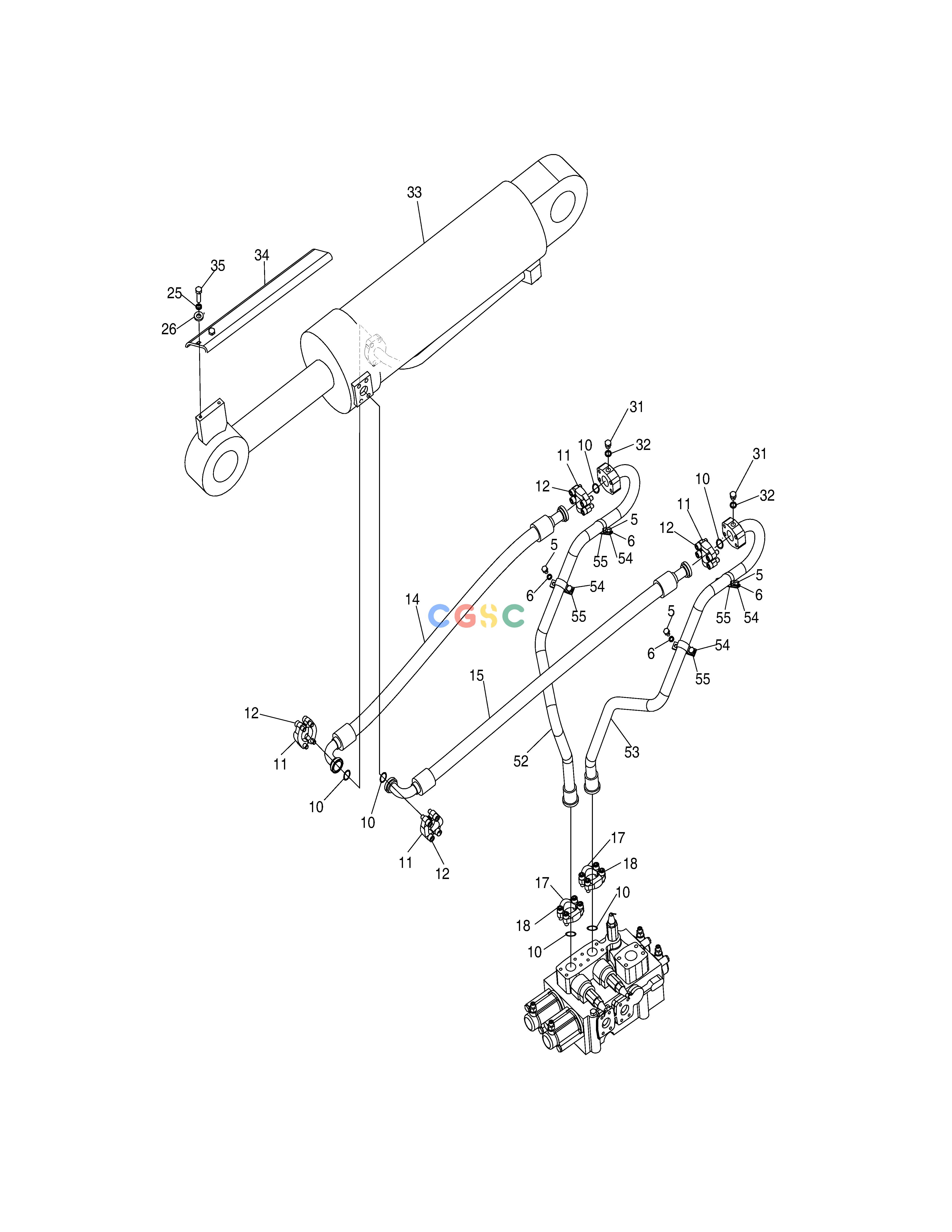

斗山零件查询MAIN PIPING（2）-ZF T/M SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
969 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-07144
|
[-] |
|
|
| 10. |
DS2851049
|
[6] |
O-RING
|
|
| 11. |
430215-00070
|
[8] |
FLANGE
|
|
| 12. |
S2215266
|
[16] |
BOLT
|
|
| 14. |
420105-00068
|
[1] |
HOSE,HYDRAULIC
|
|
| 15. |
420105-00067A
|
[1] |
HOSE,HYDRAULIC
|
|
| 17. |
430215-00067
|
[4] |
FLANGE
|
|
| 18. |
S2212266
|
[6] |
BOLT
|
|
| 25. |
S5102703
|
[1] |
WASHER
|
|
| 26. |
S5010703
|
[1] |
WASHER;PLAIN
|
|
| 31. |
430221-00159
|
[2] |
PLUG
|
|
| 32. |
K1042239D1
|
[2] |
SEAL
|
|
| 33. |
400310-00137C
|
[1] |
CYLINDER,BUCKET
|
|
| 34. |
250102-00036C
|
[1] |
PLATE
|
250102-00036E
|
| 34. |
250102-00036E
|
[1] |
PLATE;CYLINDER;BUCKET
|
|
| 35. |
S0515253
|
[2] |
. BOLT
|
|
| 5. |
S0511853
|
[4] |
BOLT
|
|
| 52. |
420207-00307A
|
[1] |
PIPE
|
|
| 53. |
420207-00308A
|
[1] |
PIPE
|
|
| 54. |
K1041046
|
[4] |
CLAMP
|
|
| 55. |
110947-00177
|
[4] |
SHIM
|
|
| 6. |
S5102603
|
[4] |
. WASHER
|
|
