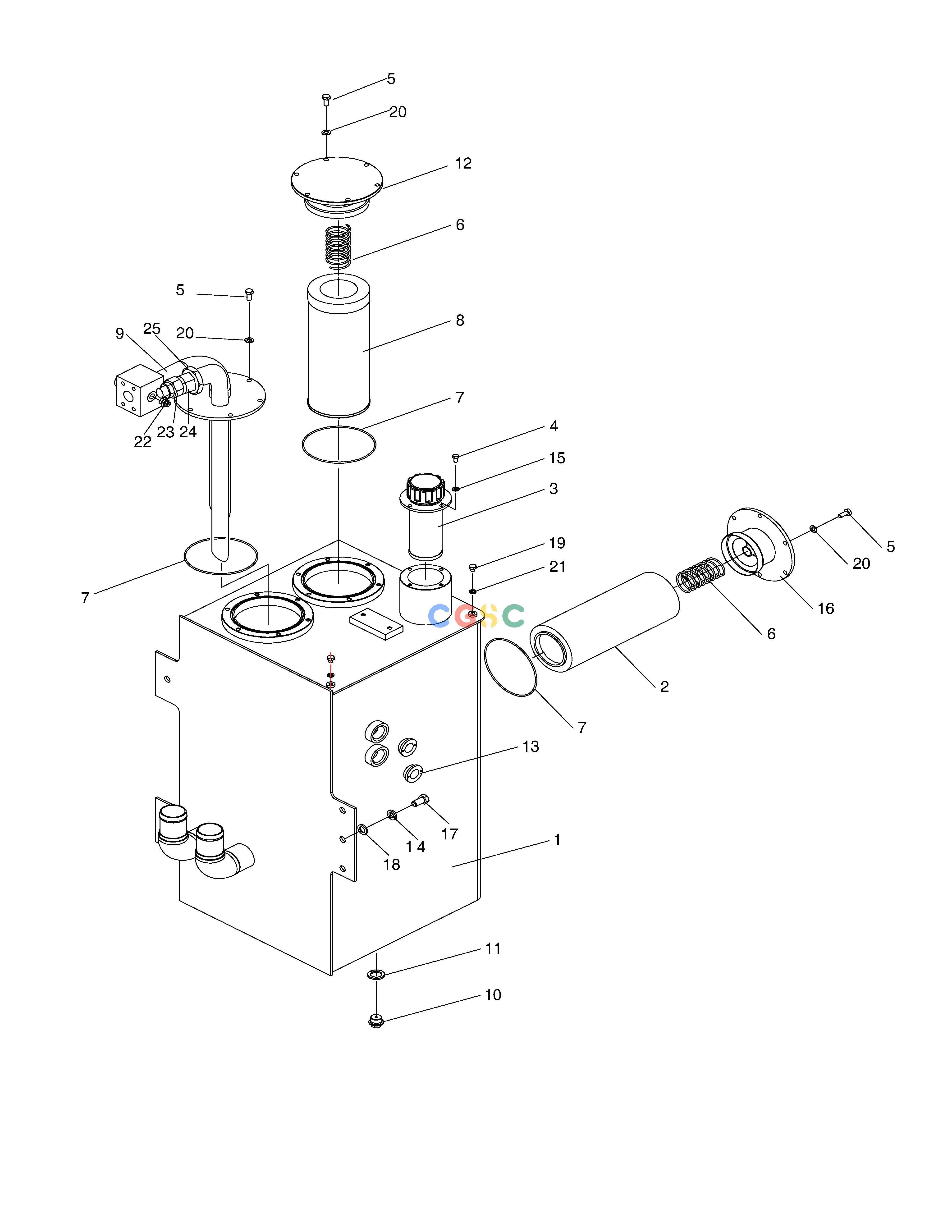

斗山零件查询OIL TANK-ZF T/M SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
867 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
450105-00370
|
[-] |
|
|
| 1. |
450105-00368B
|
[1] |
TANK,HYDRAULIC
|
|
| 10. |
430221-00195
|
[1] |
PLUG
|
|
| 11. |
K1041989
|
[1] |
WASHER
|
|
| 12. |
110508-00138A
|
[1] |
COVER,FILTER
|
|
| 13. |
K1041195
|
[2] |
GAUGE;LEVEL
|
|
| 14. |
S5102903
|
[5] |
WASHER
|
|
| 15. |
S5010513
|
[4] |
WASHER
|
|
| 16. |
110508-08615
|
[1] |
|
|
| 17. |
S0521263
|
[5] |
BOLT M16X2.0X30
|
|
| 18. |
S5010913
|
[5] |
WASHER
|
|
| 19. |
K1055643
|
[2] |
PLUG
|
|
| 2. |
400406-00263
|
[1] |
|
|
| 20. |
S5010603
|
[18] |
WASHER
|
|
| 21. |
K1042239D6
|
[2] |
RING;SEAL
|
|
| 22. |
430201-00167
|
[1] |
ADAPTER
|
|
| 23. |
430201-00191
|
[1] |
ADAPTER
|
|
| 24. |
410111-00149
|
[1] |
VALVE,HYDRAULIC
|
|
| 24. |
410111-00251
|
[1] |
VALVE,HYDRAULIC
|
|
| 25. |
401109-00111
|
[1] |
SEALRING
|
|
| 3. |
400406-00030
|
[1] |
FILTER;SUCTION
|
|
| 4. |
S0508653
|
[4] |
BOLT
|
|
| 5. |
S0512053
|
[18] |
BOLT
|
|
| 6. |
K1040862
|
[2] |
SPRING
|
|
| 7. |
DS2851053
|
[3] |
O-RING
|
|
| 8. |
400406-00013
|
[1] |
FILTER;RETURN
|
|
| 9. |
420207-01792C
|
[1] |
PIPE
|
|
