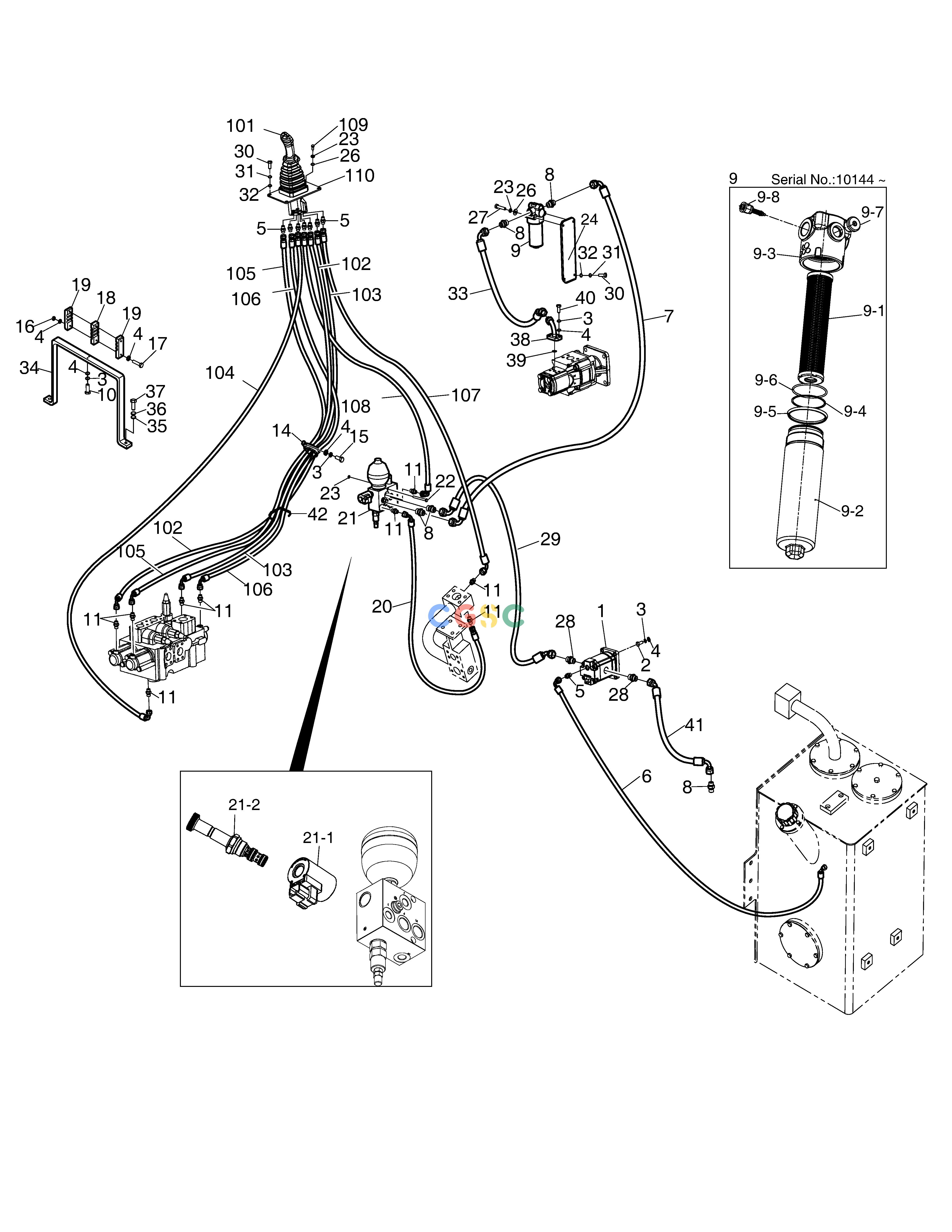

斗山零件查询PILOT PIPING ASS'Y(CSP)-ZF T/M SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
925 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-07145
|
[-] |
PIPING
|
|
| 1. |
400702-00074
|
[1] |
MOTOR,FAN
|
|
| 10. |
S0508853
|
[2] |
. BOLT
|
|
| 101. |
410120-00044
|
[1] |
VALVE,PILOT
|
|
| 102. |
420107-00009
|
[1] |
HOSE,OIL
|
|
| 103. |
420107-00041
|
[1] |
HOSE
|
|
| 104. |
420107-00340
|
[1] |
HOSE,OIL
|
|
| 105. |
420107-00010
|
[1] |
HOSE,OIL
|
|
| 106. |
420107-00042
|
[1] |
HOSE
|
|
| 107. |
420107-00341
|
[1] |
HOSE,OIL
|
|
| 108. |
420107-00343
|
[5] |
HOSE
|
|
| 109. |
S0504653
|
[4] |
. BOLT
|
|
| 11. |
430201-00556
|
[7] |
ADAPTER
|
|
| 110. |
250122-00314A
|
[1] |
PLATE,SUPPORT
|
|
| 14. |
124-00209D4
|
[1] |
CLIP
|
|
| 15. |
S0508653
|
[1] |
BOLT
|
|
| 16. |
S4012533
|
[2] |
NUT
|
|
| 17. |
S0556653
|
[2] |
BOLT M8X1.25X65
|
|
| 18. |
120202-00003A
|
[1] |
CLAMP,HOSE
|
|
| 19. |
120202-00002
|
[2] |
CLAMP,HOSE
|
|
| 2. |
S0509263
|
[4] |
BOLT
|
|
| 20. |
420107-00245B
|
[1] |
HOSE
|
|
| 21. |
410116-00494C
|
[1] |
VALVE
|
|
| 21-1. |
300715-00138
|
[1] |
. COIL
|
|
| 21-2. |
850424-00102
|
[1] |
. MAGNET
|
|
| 22. |
S2206166
|
[2] |
BOLT
|
|
| 23. |
S5102303
|
[4] |
. WASHER
|
|
| 24. |
110436-00256
|
[1] |
BRACKET
|
|
| 26. |
S5010303
|
[2] |
WASHER
|
|
| 27. |
S0515453
|
[2] |
BOLT
|
|
| 28. |
430201-00557
|
[4] |
ADAPTER
|
|
| 29. |
420107-00240
|
[1] |
HOSE
|
|
| 3. |
S5102503
|
[9] |
. WASHER
|
|
| 30. |
S0512063
|
[6] |
WASHER
|
|
| 31. |
S5102603
|
[6] |
. WASHER
|
|
| 32. |
S5010603
|
[6] |
WASHER
|
|
| 33. |
420107-00238B
|
[1] |
HOSE
|
|
| 34. |
250122-00025A
|
[1] |
PLATE,SUPPORT
|
|
| 35. |
S0515053
|
[2] |
BOLT M12X1.75X25
|
|
| 36. |
S5010703
|
[4] |
WASHER;PLAIN
|
|
| 37. |
S5102703
|
[2] |
WASHER
|
|
| 38. |
420207-01795B
|
[1] |
PIPE
|
|
| 39. |
DS2851046
|
[1] |
RING,O
|
|
| 4. |
S5010503
|
[11] |
WASHER
|
|
| 40. |
S0509053
|
[4] |
. BOLT
|
|
| 41. |
420107-00242B
|
[1] |
HOSE
|
|
| 42. |
2124-1622D2
|
[2] |
CLIP
|
|
| 5. |
430201-00556
|
[8] |
ADAPTER
|
|
| 6. |
420107-00241B
|
[1] |
HOSE
|
|
| 7. |
420107-00239A
|
[1] |
HOSE
|
|
| 8. |
430201-00180
|
[5] |
ADAPTER
|
|
| 9. |
400407-00013
|
[1] |
FILTER,PILOT(CSP)
|
|
| 9-1. |
400504-00287
|
[1] |
. ELEMENT,OIL FILTER
|
|
| 9-2. |
110913-00354
|
[1] |
. CASE
|
|
| 9-3. |
160601-01440
|
[1] |
. BODY
|
|
| 9-4. |
111102-00175
|
[1] |
. RING,BACK UP
|
|
| 9-5. |
400602-00849
|
[1] |
. GASKET
|
|
| 9-6. |
401107-01704
|
[1] |
. SEAL,O-RING
|
|
| 9-7. |
430221-01251
|
[1] |
. PLUG
|
|
| 9-8. |
410116-01041
|
[1] |
. VALVE
|
|
