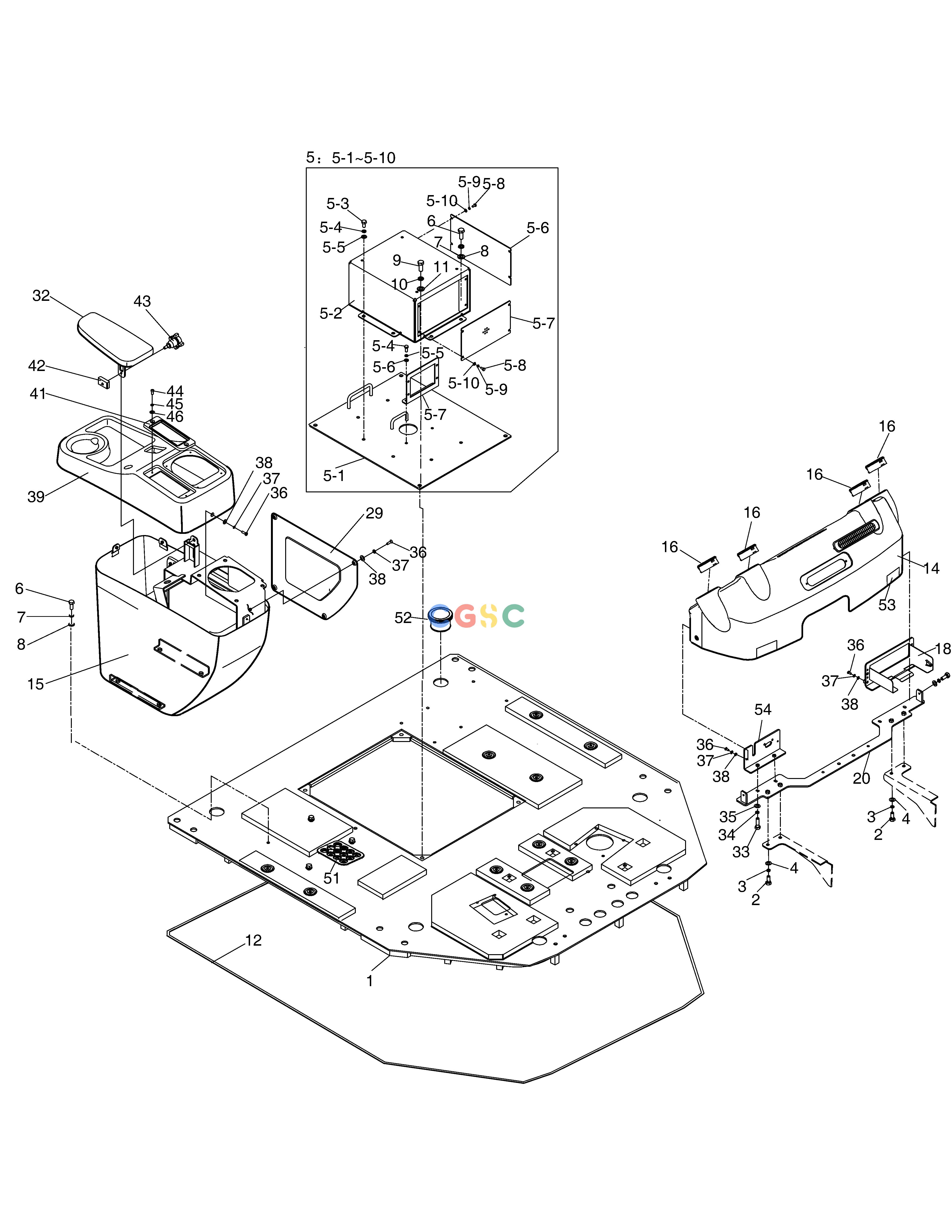

斗山零件查询STAND ASS'Y （Ⅱ）-ZF T/M SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
299 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
110953-00061C
|
[-] |
STAND ASSY
|
|
| -. |
110953-00061E
|
[-] |
STAND ASSY
|
|
| 1. |
250106-00301B
|
[1] |
PLATE,FLOOR
|
250106-00301E
|
| 1. |
250106-00301E
|
[1] |
PLATE,FLOOR
|
|
| 10. |
S5102703
|
[4] |
WASHER
|
|
| 11. |
S5010713
|
[4] |
WASHER;PLAIN
|
|
| 12. |
K1041173
|
[1] |
RUBBER
|
|
| 14. |
300427-00573
|
[1] |
PANEL;CABIN
|
|
| 15. |
110405-00006C
|
[1] |
BRACKET;CABIN
|
|
| 16. |
430218-00021
|
[4] |
NOZZLE;CABIN
|
|
| 18. |
110406-00077B
|
[1] |
BRACKET;CABIN
|
|
| 2. |
S0508866
|
[4] |
BOLT
|
|
| 20. |
250201-00044C
|
[1] |
PLATE;CABIN
|
|
| 29. |
250103-00011A
|
[1] |
PLATE;CABIN
|
|
| 3. |
S5102503
|
[4] |
. WASHER
|
|
| 32. |
230201-00123B
|
[1] |
. REST,ARM;CABIN
|
|
| 33. |
S0504853
|
[2] |
BOLT M6X1.0X20
|
|
| 34. |
S5102303
|
[2] |
. WASHER
|
|
| 35. |
S5010313
|
[2] |
WASHER
|
|
| 36. |
S3450848
|
[11] |
SCREW,MACHINE
|
|
| 37. |
S5102203
|
[11] |
WASHER
|
|
| 38. |
S5000213
|
[11] |
. WASHER
|
|
| 39. |
250105-00077A
|
[1] |
PLATE,CABIN
|
|
| 4. |
S5010513
|
[4] |
WASHER
|
|
| 41. |
250105-00079A
|
[1] |
PLATE,CABIN
|
|
| 42. |
250101-00003
|
[1] |
. PLATE,BAFFLE;CABIN
|
|
| 43. |
K1006333
|
[1] |
. KNOB;ARM REST
|
|
| 44. |
S3661363
|
[2] |
BOLT KIT
|
|
| 45. |
S5102103
|
[2] |
WASHER
|
|
| 46. |
S5000113
|
[2] |
WASHER
|
|
| 5. |
110406-01447A
|
[1] |
BRACKET
|
|
| 5-1. |
250104-00028
|
[1] |
. PLATE;CABIN
|
|
| 5-10. |
S5010303
|
[8] |
WASHER
|
|
| 5-2. |
110431-00057A
|
[2] |
. BRACKET,STAND
|
|
| 5-3. |
S0511853
|
[4] |
BOLT
|
|
| 5-4. |
S5102603
|
[4] |
. WASHER
|
|
| 5-5. |
S5010613
|
[4] |
WASHER
|
|
| 5-6. |
250201-00043C
|
[1] |
. PLATE;CABIN
|
|
| 5-7. |
250201-00041C
|
[1] |
. PLATE;CABIN
|
|
| 5-8. |
S0504653
|
[8] |
. BOLT
|
|
| 5-9. |
S5102303
|
[8] |
. WASHER
|
|
| 51. |
131009-00008A
|
[1] |
BUSHING,RUBBER;CABIN
|
|
| 52. |
131009-00010A
|
[1] |
BUSHING,RUBBER;CABIN
|
|
| 53. |
180308-00051
|
[2] |
RUBBER;CABIN
|
|
| 54. |
110406-02338A
|
[1] |
|
|
| 6. |
S0512056
|
[7] |
BOLT,HEX;M10X25
|
|
| 7. |
S5102603
|
[7] |
. WASHER
|
|
| 8. |
S5010613
|
[7] |
WASHER
|
|
| 9. |
S0515266
|
[4] |
BOLT
|
|
