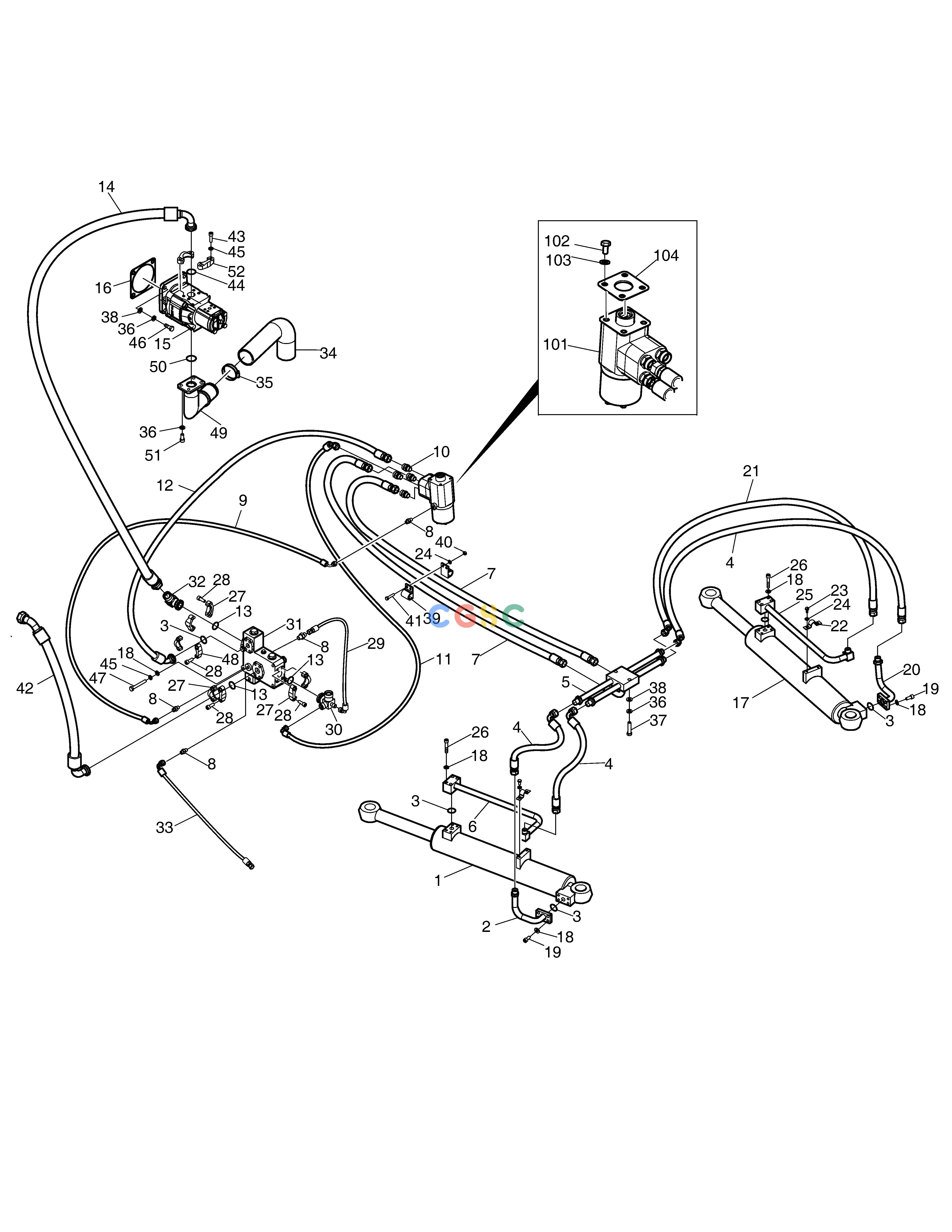

斗山零件查询STEERING PIPING-ZF T/M SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
606 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-06555
|
[-] |
|
|
| 1. |
K1042143
|
[1] |
CYLINDER;STEERING(R.H)
|
|
| 10. |
430216-00015C
|
[4] |
JOINT
|
|
| 101. |
190202-00024A
|
[1] |
STEERING UNIT
|
|
| 101. |
190202-00060
|
[1] |
STEERING UNIT;CABIN
|
|
| 102. |
S0511853
|
[4] |
BOLT
|
|
| 103. |
S5010603
|
[4] |
WASHER
|
|
| 103. |
S5102603
|
[4] |
. WASHER
|
|
| 104. |
180304-00008
|
[1] |
CUSHION
|
|
| 11. |
420107-00225
|
[1] |
|
|
| 12. |
420107-00229
|
[1] |
|
|
| 13. |
DS2851048
|
[3] |
O-RING
|
|
| 14. |
420107-00246A
|
[1] |
|
|
| 15. |
400910-00141A
|
[1] |
PUMP,GEAR
|
|
| 16. |
400625-00005A
|
[1] |
GASKET,PTO
|
|
| 17. |
K1042144
|
[1] |
CYLINDER;STEERING(L.H)
|
|
| 18. |
S5010613
|
[19] |
WASHER
|
|
| 19. |
S2212066
|
[8] |
BOLT
|
|
| 2. |
K1040876B
|
[1] |
PIPE
|
|
| 20. |
420207-00655
|
[1] |
PIPE
|
|
| 21. |
420107-00146A
|
[1] |
HOSE,OIL
|
|
| 21. |
420107-00146
|
[1] |
HOSE,OIL
|
420107-00146A
|
| 22. |
K1040877A
|
[2] |
CLAMP,PIPE
|
|
| 23. |
S0508653
|
[4] |
BOLT
|
|
| 24. |
S5010513
|
[8] |
WASHER
|
|
| 25. |
420207-00656
|
[1] |
PIPE
|
|
| 26. |
S2212766
|
[8] |
BOLT;SOCKET M10X1.5X55
|
|
| 27. |
430215-00073
|
[6] |
FLANGE
|
|
| 28. |
S2212266
|
[16] |
BOLT
|
|
| 29. |
420107-00230B
|
[1] |
HOSE
|
|
| 3. |
DS2851002
|
[5] |
O-RING
|
|
| 30. |
430201-00552A
|
[1] |
ADAPTER
|
|
| 31. |
410116-00188
|
[1] |
VALVE
|
|
| 32. |
430216-00047
|
[1] |
JOINT
|
|
| 33. |
420107-00227
|
[1] |
HOSE
|
420107-00227A
|
| 33. |
420107-00227A
|
[1] |
HOSE
|
|
| 34. |
420107-00232
|
[1] |
|
|
| 35. |
S8450066
|
[4] |
CLAMP;HOSE
|
|
| 36. |
S5102703
|
[10] |
WASHER
|
|
| 37. |
S0560863
|
[2] |
BOLT
|
|
| 38. |
S5010703
|
[6] |
WASHER;PLAIN
|
|
| 39. |
120208-00163
|
[2] |
CLAMP
|
|
| 4. |
420107-00144
|
[3] |
HOSE,OIL
|
420107-00144A
|
| 4. |
420107-00144A
|
[3] |
HOSE,OIL
|
|
| 40. |
S4012533
|
[2] |
NUT
|
|
| 41. |
S0556153
|
[2] |
BOLT M8X1.25X40
|
|
| 42. |
420107-00224A
|
[1] |
|
|
| 43. |
S2212366
|
[4] |
BOLT
|
|
| 44. |
DS2851049
|
[1] |
O-RING
|
|
| 45. |
S5102603
|
[7] |
. WASHER
|
|
| 46. |
S0515353
|
[4] |
BOLT M12X1.75X35
|
|
| 47. |
S0559253
|
[3] |
BOLT M10X1.5X85
|
|
| 48. |
430215-00072
|
[2] |
FLANGE
|
|
| 49. |
420207-01790A
|
[1] |
PIPE ASSY,HYDRAULIC
|
|
| 5. |
420207-01791
|
[1] |
PIPE
|
|
| 50. |
DS2851051
|
[1] |
O-RING
|
|
| 51. |
S2215066
|
[4] |
BOLT;SOCKET M12X1.75X25
|
|
| 52. |
430215-00071
|
[2] |
FLANGE,SPLIT
|
|
| 6. |
K1040879B
|
[1] |
PIPE
|
|
| 7. |
420107-00231
|
[2] |
HOSE
|
|
| 8. |
430201-00179
|
[3] |
ADAPTER
|
|
| 9. |
420107-00226B
|
[1] |
HOSE
|
|
