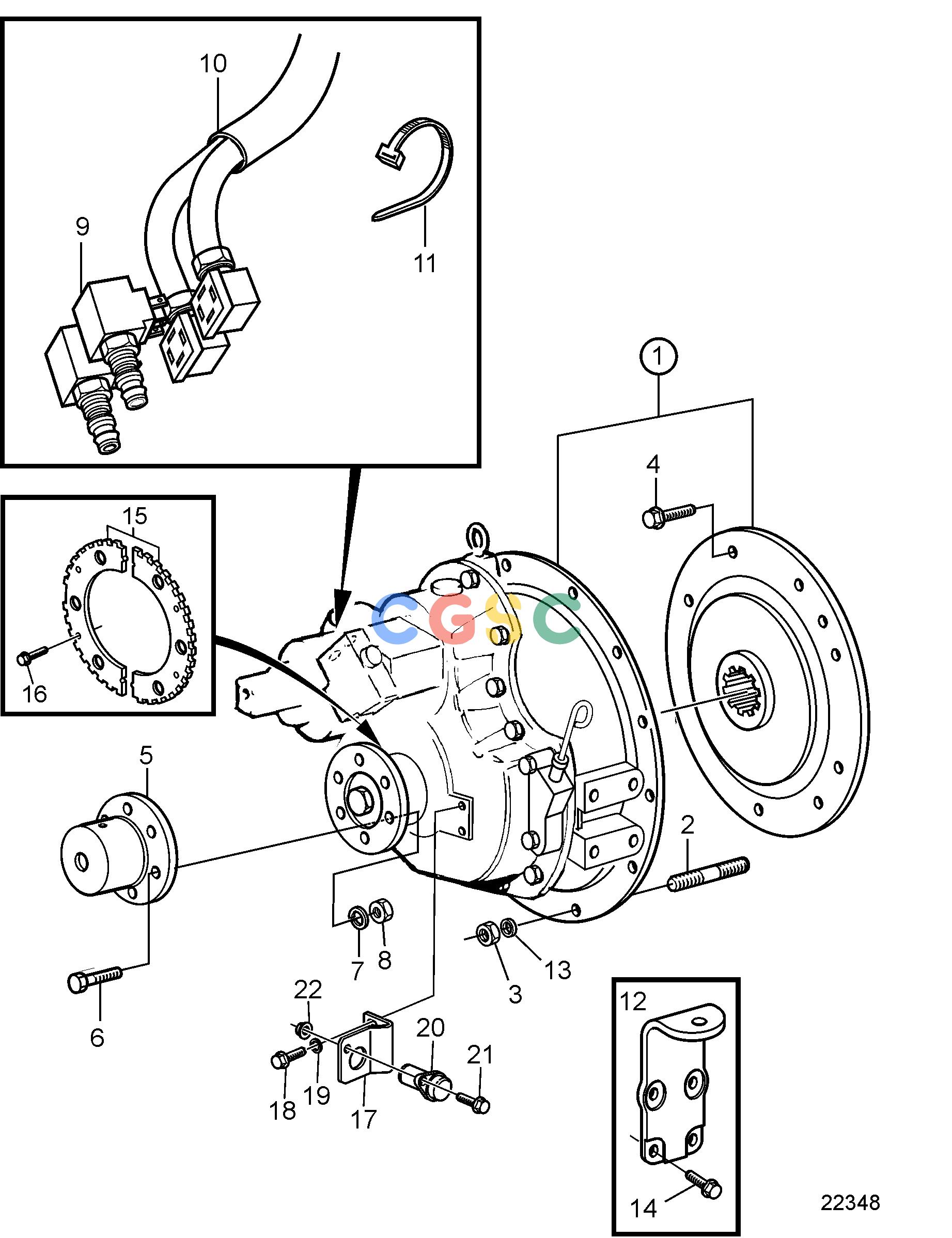

沃尔沃零件查询D9A2A; D9A2A D9-425; D9A2A D9-500; D9A2A D9-500 (R4); D9A2A D9-575; D9A2B D9-425; D9A2B D9-500 (R5); D9A2B D9-575; D9A2C D9-425; D9A2D D9TransmissionsReverse Gear MG 5075A-EEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
435 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
479972
|
[12] |
Stud
|
|
| 3. |
990980
|
[12] |
Lock nut
|
|
| 4. |
984755
|
[8] |
Flange screw
|
|
| 5. |
863994
|
[1] |
Clutch flange
|
|
| 6. |
955739
|
[8] |
Hexagon screw
|
|
| 7. |
941912
|
[8] |
Spring washer
|
|
| 8. |
950378
|
[8] |
Lock nut
|
|
| 9. |
3828564
|
[1] |
Shift valve, kit
|
12V
|
| 9. |
3828565
|
[1] |
Shift valve, kit
|
24V
|
| 10. |
3594240
|
[1] |
Wiring harness
|
|
| 11. |
948211
|
[1] |
Cable tie
|
|
| 12. |
3838221
|
[2] |
Engine anchorage
|
|
| 13. |
942336
|
[12] |
Spring washer
|
|
| 14. |
968435
|
[8] |
Flange screw
|
|
| 15. |
3819857
|
[2] |
Sensor wheel
|
|
| 16. |
984725
|
[4] |
Flange screw
|
|
| 17. |
3843690
|
[1] |
Bracket
|
|
| 18. |
984733
|
[2] |
Flange screw
|
|
| 19. |
941907
|
[2] |
Spring washer
|
|
| 20. |
20513343
|
[1] |
Sensor
|
|
| 21. |
984725
|
[1] |
Flange screw
|
|
| 22. |
990949
|
[1] |
Flange lock nut
|
|
