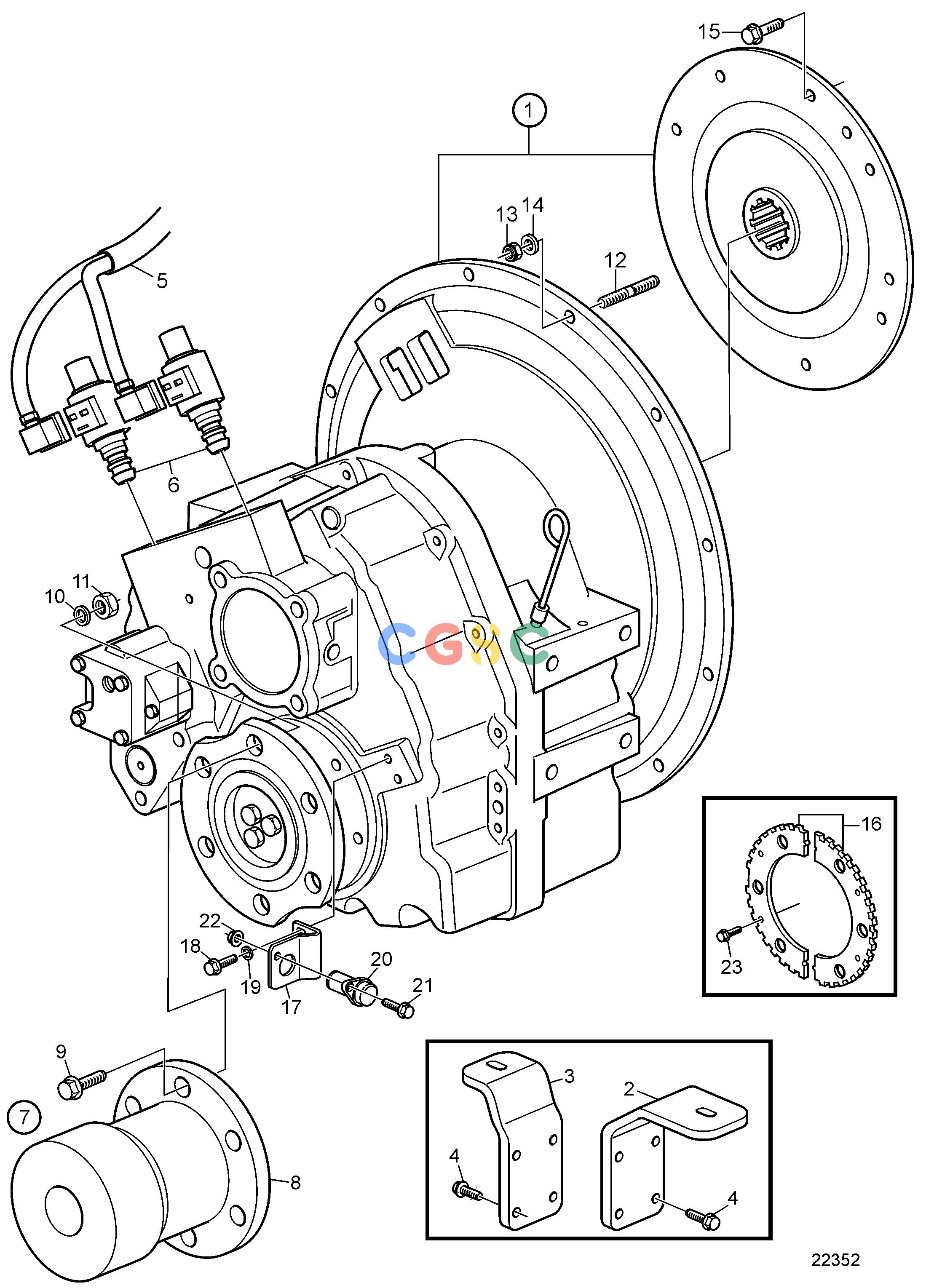

沃尔沃零件查询D9A2A; D9A2A D9-425; D9A2A D9-500; D9A2A D9-500 (R4); D9A2A D9-575; D9A2B D9-425; D9A2B D9-500 (R5); D9A2B D9-575; D9A2C D9-425; D9A2D D9TransmissionsReverse Gear MG5065AEEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
268 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
3840122
|
[1] |
Engine anchorage, right
|
|
| 3. |
3840121
|
[1] |
Engine anchorage, left
|
|
| 4. |
968436
|
[8] |
Flange screw
|
|
| 5. |
3594240
|
[1] |
Wiring harness
|
|
| 6. |
3587982
|
[2] |
Shift valve
|
12V
|
| 6. |
3587981
|
[2] |
Shift valve
|
24V
|
| 7. |
3828558
|
[1] |
Clutch flange, Set
|
|
| 8. |
3828556
|
[1] |
Clutch flange
|
|
| 9. |
955739
|
[6] |
Hexagon screw
|
|
| 10. |
941912
|
[6] |
Spring washer
|
|
| 11. |
950378
|
[6] |
Lock nut
|
|
| 12. |
479972
|
[12] |
Stud
|
|
| 13. |
990980
|
[12] |
Lock nut
|
|
| 14. |
942336
|
[12] |
Spring washer
|
|
| 15. |
984755
|
[8] |
Flange screw
|
|
| 16. |
3819857
|
[2] |
Sensor wheel
|
|
| 17. |
3819925
|
[1] |
Bracket
|
|
| 18. |
984733
|
[2] |
Flange screw
|
|
| 19. |
941907
|
[2] |
Spring washer
|
|
| 20. |
20513343
|
[1] |
Sensor
|
|
| 21. |
984725
|
[1] |
Flange screw
|
|
| 22. |
990949
|
[1] |
Flange lock nut
|
|
| 23. |
984723
|
[4] |
Flange screw
|
|
