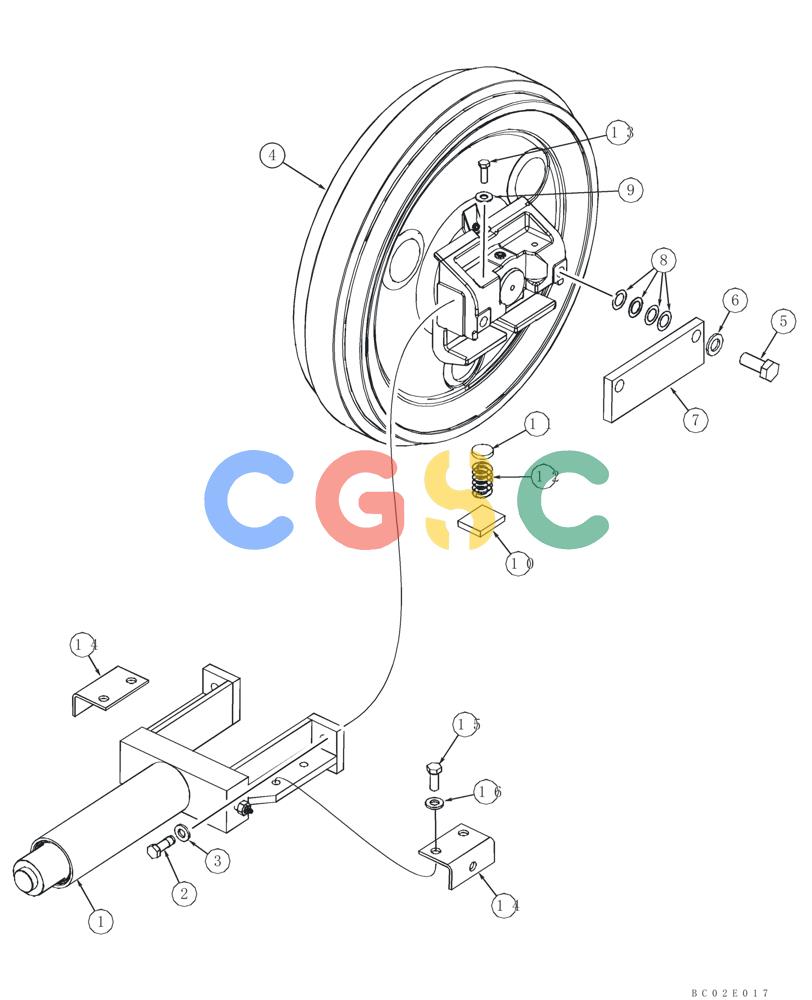

纽荷兰零件查询(DC85) - CRAWLER DOZER (8/04-) (05-04) - TRACK ADJUSTER AND IDLER - MOUNTING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
327 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 435383A1 | [1] | YOKE | CASAdjuster; Right-Hand; See Figure 05-05 |
| 1A. | 435384A1 | [1] | YOKE | CASAdjuster; Left-Hand; See Figure 05-05; Not Illustrated |
| 2. | 410-9824 | [4] | BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8 | BRR1/2 x 1-1/2 |
| 3. | 496-21053 | [4] | WASHER,17/32" x 1 1/16" x .134" | CAS Superseded by part number: 86624188 |
| 4. | 87353998 | [2] | IDLER, FRONT; See Figure 05-06; Replaces 86987773; Not Available As An Assembly, Order Components | |
| 5. | 413-1228 | [8] | BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5 | CAS3/ x 1-3/4 Superseded by part number: 88725 |
| 6. | 495-11081 | [8] | WASHER,3/4", SAE | CAS Superseded by part number: 87381 |
| 7. | 87353997 | [4] | PLATE, TRACK; Replaces 86987767 | |
| 8. | D35268 | [1] | SHIM,1/32" Thk | CAS |
| 9. | 495-21044 | [8] | WASHER,3/8" | CAS(7/16 x 1 x 5/64) Superseded by part number: 80702, 87779090 |
| 10. | 106919A1 | [8] | SPACER | CAS |
| 11. | R33245 | [8] | SPRING SEAT | CAS |
| 12. | 188866A1 | [8] | SHOCK ABSORBER | CAS |
| 13. | 413-618 | [8] | BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5 | CAS |
| 14. | 430455A1 | [4] | BRACKET | BUR |
| 15. | 413-820 | [8] | BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5 | CAS Superseded by part number: 87670, 72187215 |
