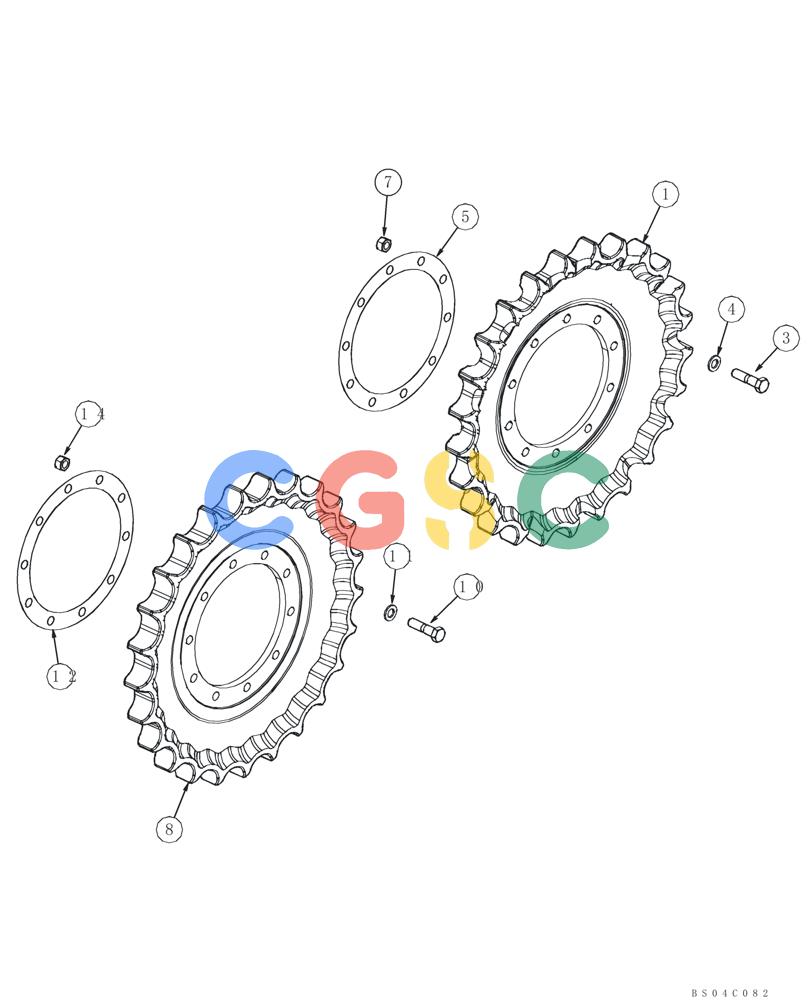

纽荷兰零件查询(DC85) - CRAWLER DOZER (8/04-) (05-03) - SPROCKET, TRACK New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
739 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 86981861 | [2] | DRIVING SPROCKET | BUR25T; Sealed and Lubricated Track (S.A.L.T.); Not Illustrated Superseded by part number: 404056A1 |
| 1. | 86981864 | [2] | DRIVING SPROCKET | BUR25T; Relieved; RECOMMENDED FOR PACKING CONDITIONS ONLY Superseded by part number: 404060A1 |
| 3. | 86982082 | [20] | 3/4 x 2-3/4 | |
| 4. | D34666 | [20] | WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk | CAS |
| 5. | 404152A1 | [1] | SHIM | BUR |
| 7. | 29-1012 | [20] | NUT,3/4"-10, G8 | CASUse Loctite No. 242 |
| . . | ZPX24236 | [1] | SEALANT, THREAD | MKTLoctite, No. 242, 50 ml |
| 8. | 86981854 | [2] | DRIVING SPROCKET | BUR25T; Sealed and Lubricated Track (S.A.L.T.) Superseded by part number: 403555A1 |
| 8. | 86981858 | [2] | DRIVING SPROCKET | BUR25T; Relieved; Not Illustrated; RECOMMENDED FOR PACKING CONDITIONS ONLY Superseded by part number: 403559A1 |
