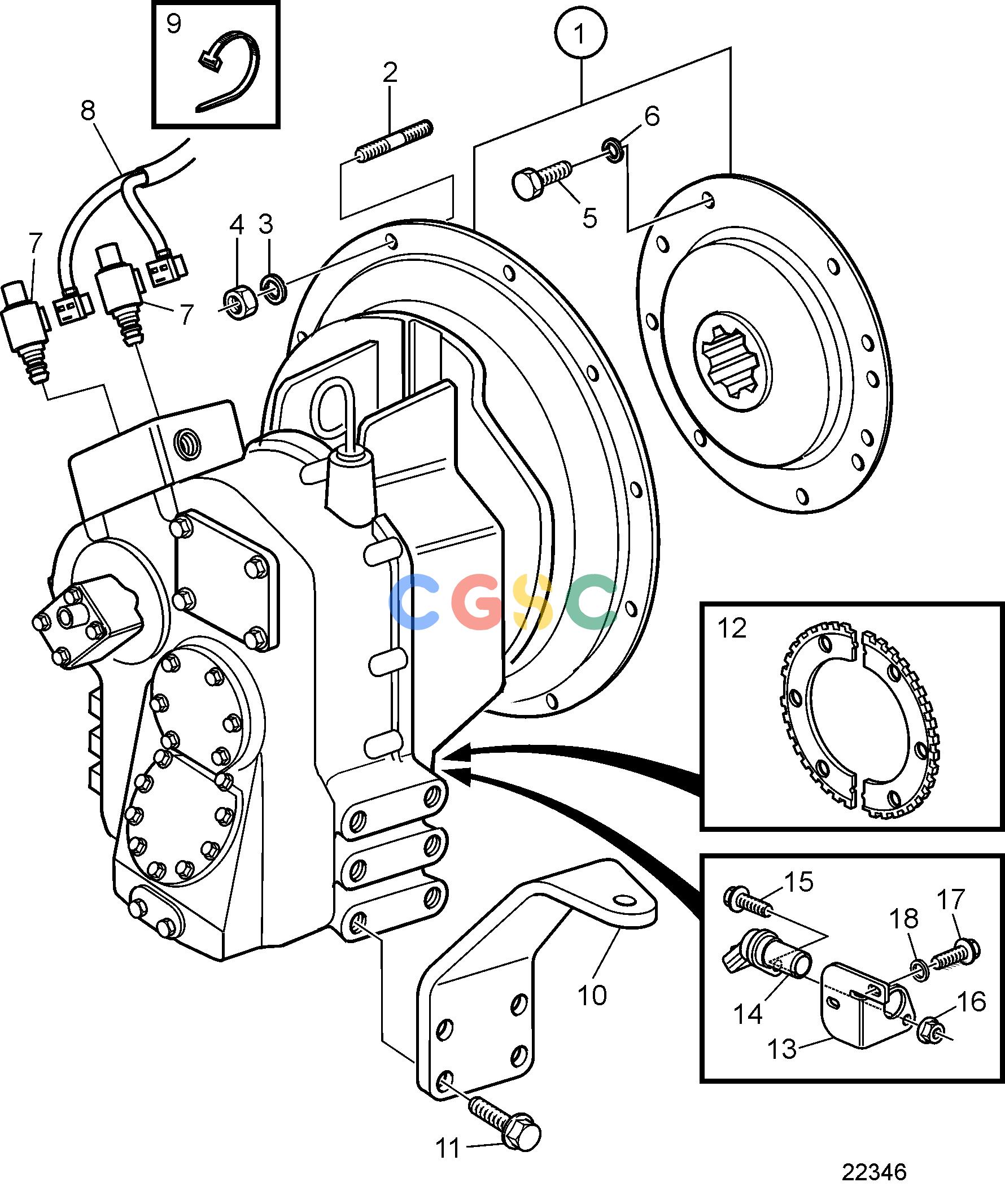

沃尔沃零件查询D9A2A; D9A2A D9-425; D9A2A D9-500; D9A2A D9-500 (R4); D9A2A D9-575; D9A2B D9-425; D9A2B D9-500 (R5); D9A2B D9-575; D9A2C D9-425; D9A2D D9TransmissionsReverse Gear ZF280IVEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
646 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
479972
|
[12] |
Stud
|
|
| 3. |
823575
|
[12] |
Spacer sleeve
|
|
| 4. |
990980
|
[12] |
Lock nut
|
|
| 5. |
959238
|
[8] |
Hex. socket screw
|
|
| 6. |
940097
|
[8] |
Washer
|
|
| 7. |
3827257
|
[1] |
Solenoid, kit
|
12V
|
| 7. |
3826414
|
[1] |
Solenoid, kit
|
24V
|
| 8. |
3594238
|
[1] |
Wiring harness
|
|
| 9. |
948211
|
[1] |
Cable tie
|
|
| 10. |
3589514
|
[2] |
Engine anchorage
|
|
| 11. |
968435
|
[8] |
Flange screw
|
|
| 12. |
3842084
|
[2] |
Gear ring
|
|
| 13. |
3841063
|
[1] |
Bracket
|
|
| 14. |
20513343
|
[1] |
Sensor
|
|
| 15. |
984725
|
[1] |
Flange screw
|
|
| 16. |
990949
|
[1] |
Flange lock nut
|
|
| 17. |
967949
|
[2] |
Flange screw
|
|
| 18. |
949607
|
[2] |
Spring washer
|
|
