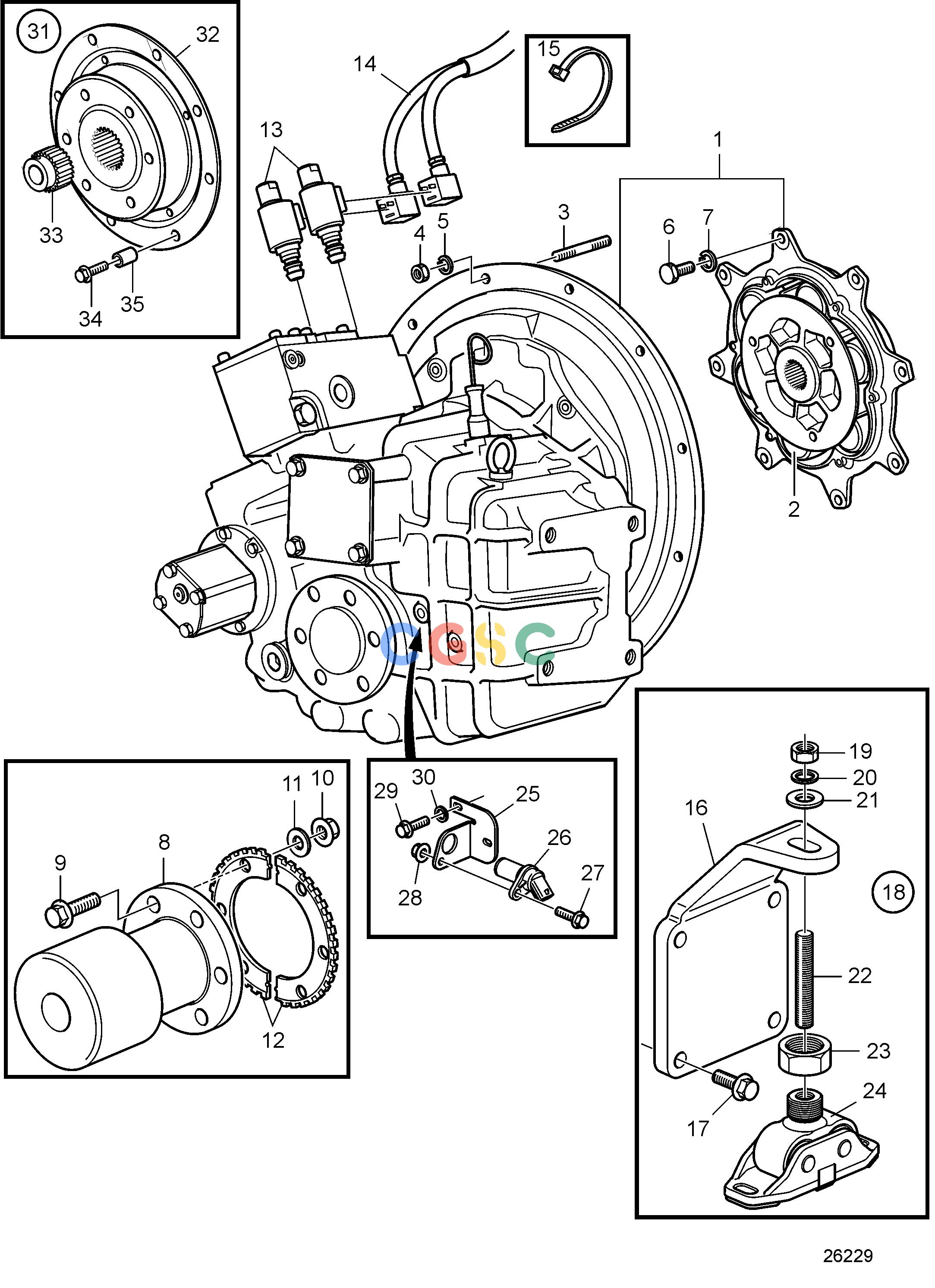

沃尔沃零件查询D9A2A; D9A2A D9-425; D9A2A D9-500; D9A2A D9-500 (R4); D9A2A D9-575; D9A2B D9-425; D9A2B D9-500 (R5); D9A2B D9-575; D9A2C D9-425; D9A2D D9TransmissionsReverse Gear ZF286A-EEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
500 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
21509617
|
[1] |
Roller kit
|
Kit include 8pcs rubber rollers
|
| 3. |
479972
|
[12] |
Stud
|
|
| 4. |
990980
|
[12] |
Lock nut
|
|
| 5. |
942336
|
[12] |
Spring washer
|
|
| 6. |
984756
|
[8] |
Flange screw
|
|
| 7. |
940097
|
[8] |
Washer
|
|
| 8. |
842106
|
[1] |
Companion flange
|
|
| 9. |
955739
|
[6] |
Hexagon screw
|
|
| 10. |
950378
|
[6] |
Lock nut
|
|
| 11. |
941912
|
[6] |
Spring washer
|
|
| 12. |
3842084
|
[2] |
Gear ring
|
|
| 13. |
3843685
|
[2] |
Solenoid valve kit
|
12V
|
| 13. |
3589000
|
[2] |
Solenoid valve kit
|
24V
|
| 14. |
3594238
|
[1] |
Wiring harness
|
|
| 15. |
948211
|
[1] |
Cable tie
|
|
| 16. |
3840126
|
[2] |
Engine anchorage
|
L=135mm
|
| 17. |
968435
|
[8] |
Flange screw
|
|
| 18. |
3817318
|
[2] |
Rubber cushion kit
|
|
| 19. |
990973
|
[1] |
Hexagon nut
|
|
| 20. |
990697
|
[1] |
Lock washer
|
|
| 21. |
120224
|
[1] |
Washer
|
|
| 22. |
3817323
|
[1] |
Adjusting screw
|
|
| 23. |
3839409
|
[1] |
Hexagon nut
|
|
| 24. |
3817321
|
[1] |
Bracket
|
|
| 25. |
3841063
|
[1] |
Bracket
|
|
| 26. |
20513343
|
[1] |
Sensor
|
|
| 27. |
984725
|
[1] |
Flange screw
|
|
| 28. |
990949
|
[1] |
Flange lock nut
|
|
| 29. |
967949
|
[2] |
Flange screw
|
|
| 30. |
949607
|
[2] |
Spring washer
|
|
| 31. |
21711410
|
[1] |
Flexible coupling
|
|
| 32. |
21711213
|
[1] |
Flexible coupling
|
|
| 33. |
21711424
|
[1] |
Hub
|
|
| 34. |
984757
|
[8] |
Flange screw
|
|
| 35. |
995056
|
[8] |
Spacer sleeve
|
|
