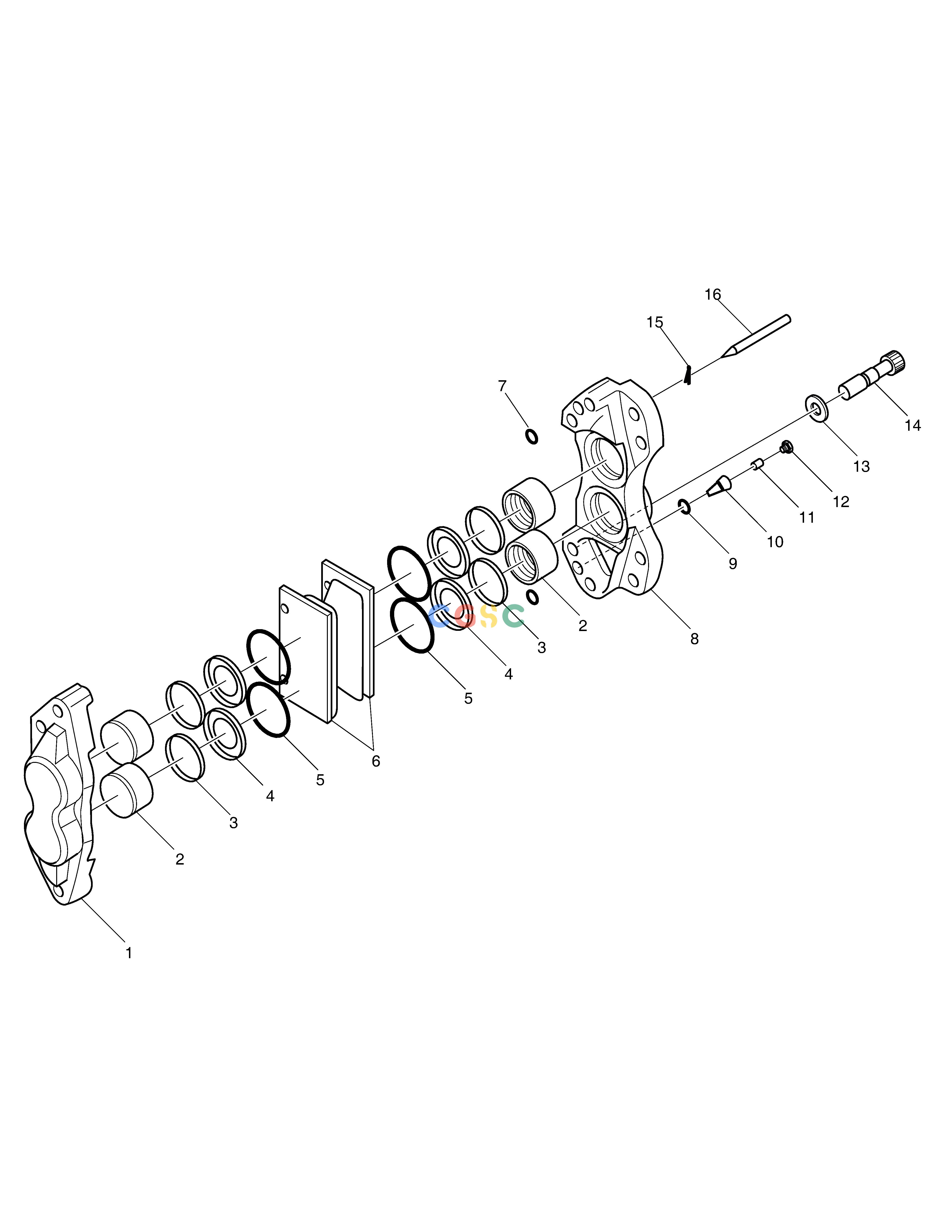

斗山零件查询AXLE ASS'Y - BRAKE ASS'Y(JS) SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
663 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
130104-00096B
|
[1] |
BRAKE UNIT
|
|
| 1. |
130104-00302
|
[1] |
BRAKE,EXTERIOR
|
|
| 10. |
430208-00697
|
[2] |
CONNECTER
|
|
| 11. |
410116-01074
|
[2] |
VALVE,DEFLATING
|
|
| 12. |
430221-01290
|
[2] |
PLUG,RUBBER
|
|
| 13. |
120808-00908
|
[4] |
WASHER
|
|
| 14. |
120112-01667
|
[4] |
BOLT
|
|
| 15. |
120501-03579
|
[2] |
PIN,SPLIT
|
|
| 16. |
120112-01668
|
[2] |
BOLT;PIN
|
|
| 2. |
130602-01549
|
[4] |
PISTON
|
|
| 3. |
401109-00166
|
[4] |
SEALRING
|
|
| 4. |
102203-00112
|
[4] |
SHIELD,DUST
|
|
| 5. |
401003-00829
|
[4] |
RING;BLOCK
|
|
| 6. |
130106-00137
|
[2] |
DISK,BRAKE
|
|
| 7. |
401002-01675
|
[2] |
RING,O
|
|
| 8. |
130104-00303
|
[1] |
BRAKE,INNER
|
|
| 9. |
401002-01676
|
[2] |
RING,O
|
|
