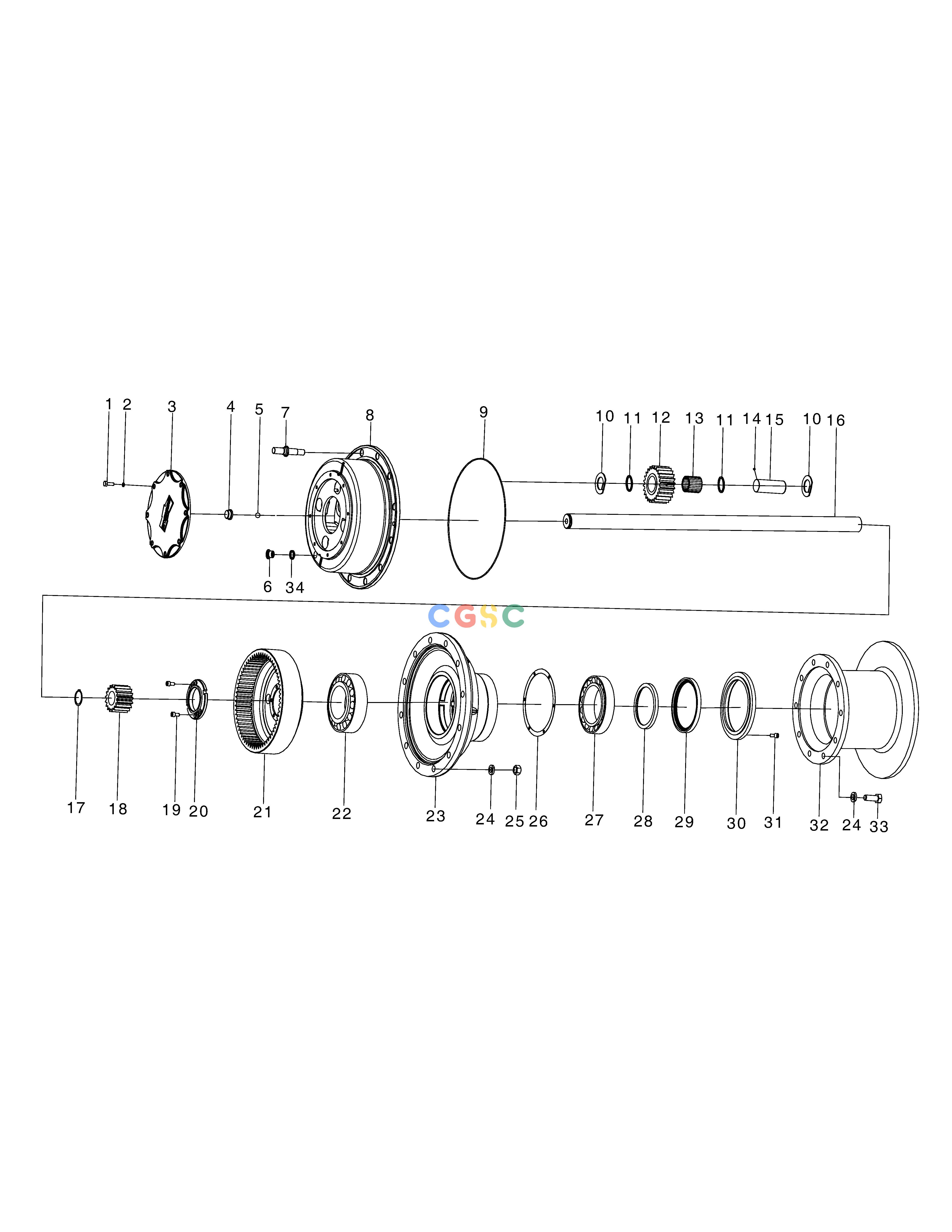

斗山零件查询AXLE ASS'Y - DRIVING AXLE ASS'Y(DISD) SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
678 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
130429-00081A
|
[1] |
REDUCER ASSY,WHEEL
|
|
| -. |
130429-00081B
|
[1] |
REDUCER ASSY,WHEEL
|
|
| 1. |
S0512253
|
[8] |
BOLT M10X1.5X30
|
|
| 10. |
120808-00182A
|
[8] |
WASHER
|
|
| 11. |
110951-00322
|
[8] |
SPACER
|
|
| 12. |
130413-00008B
|
[4] |
GEAR,PLANET
|
130413-00008C
|
| 12. |
130413-00008C
|
[4] |
GEAR,PLANET
|
|
| 13. |
140104-00038
|
[108] |
BEARING,NEEDLE
|
|
| 14. |
S6250180
|
[4] |
BALL,STEEL
|
|
| 15. |
130712-00400
|
[4] |
SHAFT
|
|
| 16. |
130712-00401A
|
[1] |
SHAFT,AXLE
|
|
| 17. |
S6500521
|
[1] |
RING,RETAINING;SHAFT
|
|
| 18. |
130425-00012B
|
[1] |
GEAR,SUN
|
|
| 19. |
120106-00402A
|
[2] |
BOLT,HEX
|
|
| 2. |
S5100603
|
[8] |
WASHER
|
|
| 20. |
120312-00133B
|
[1] |
NUT,ADJUSTING
|
|
| 21. |
130422-00030C
|
[1] |
GEAR,RING
|
|
| 22. |
140107-00179
|
[1] |
BEARING ASSY,TAPER ROLLER
|
|
| 23. |
900122-00052A
|
[1] |
HUB
|
|
| 24. |
S5101103
|
[22] |
WASHER;SPRING
|
|
| 25. |
S4033133
|
[12] |
NUT
|
|
| 26. |
400602-00268A
|
[1] |
GASKET
|
|
| 27. |
140107-00178
|
[1] |
BEARING ASSY,TAPER ROLLER
|
|
| 28. |
110949-00143B
|
[1] |
SLEEVE
|
|
| 29. |
401106-00170
|
[1] |
SEAL,OIL
|
401106-00399
|
| 29. |
401106-00399
|
[1] |
SEAL,OIL
|
|
| 3. |
110910-00951
|
[1] |
CAP,END
|
|
| 30. |
401102-00030B
|
[1] |
HOLDER,OIL SEAL
|
401102-00030C
|
| 30. |
401102-00030C
|
[1] |
HOLDER,OIL SEAL
|
|
| 31. |
S2208863
|
[6] |
BOLT
|
|
| 32. |
130106-00027B
|
[1] |
DISK,BRAKE
|
|
| 33. |
S0727653
|
[10] |
BOLT,HEX
|
|
| 34. |
120808-00614
|
[1] |
WASHER,SEAL
|
|
| 4. |
101555-00083A
|
[1] |
PAD
|
|
| 5. |
S6250280
|
[1] |
BALL;STEEL
|
|
| 6. |
430221-00755
|
[1] |
PLUG,MAGNETIC
|
|
| 7. |
120112-00481
|
[12] |
BOLT,HUB
|
120112-00481A
|
| 7. |
120112-00481A
|
[12] |
BOLT,HUB
|
|
| 8. |
100502-00108C
|
[1] |
CARRIER,PLANETARY GEAR
|
100502-00108E
|
| 8. |
100502-00108E
|
[1] |
CARRIER,PLANETARY GEAR
|
|
| 9. |
401002-00394
|
[1] |
RING,O
|
|
