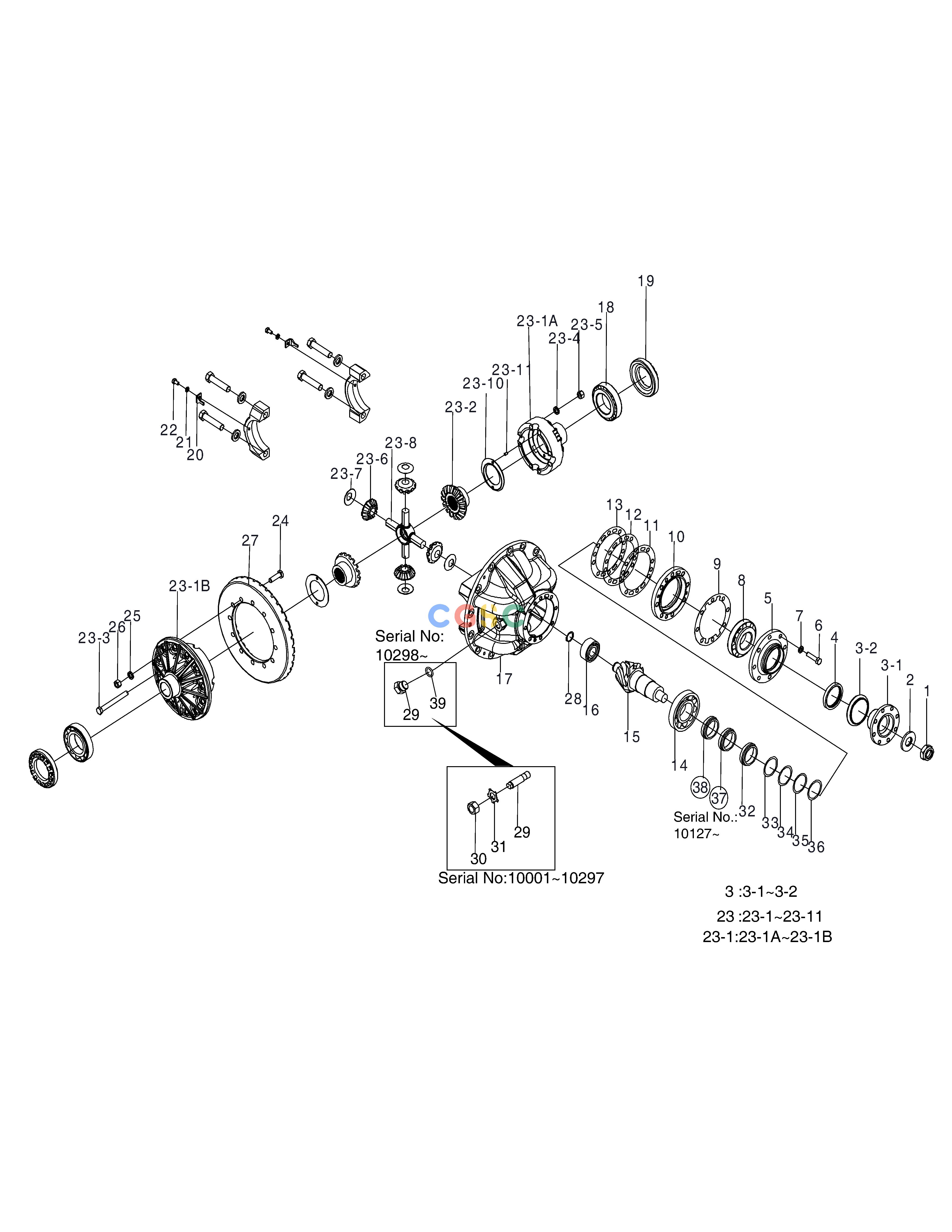

斗山零件查询AXLE ASS'Y - MAIN TRANSMISSION(DISD) SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
375 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
130418-00657
|
[1] |
GEAR KIT;FRONT AXLE
|
|
| . |
130418-00658
|
[1] |
GEAR KIT;REAR AXLE
|
|
| -. |
130429-00020E
|
[1] |
REDUCER ASSY,MAIN;FRONTAXLE
|
|
| -. |
130429-00021E
|
[1] |
REDUCER ASSY,MAIN;REAR AXLE
|
130429-00021G
|
| -. |
130429-00021G
|
[1] |
REDUCER ASSY,MAIN;REAR AXLE
|
130429-00021H
|
| -. |
130429-00020G
|
[1] |
REDUCER ASSY,MAIN;FRONTAXLE
|
130429-00020H
|
| -. |
130429-00020H
|
[1] |
REDUCER ASSY,MAIN;FRONT
|
130429-00092C
|
| -. |
130429-00092C
|
[1] |
REDUCER ASSY,MAIN,FRONT
|
|
| -. |
130429-00021H
|
[1] |
REDUCER ASSY,MAIN;REAR
|
130429-00021K
|
| -. |
130429-00021K
|
[1] |
REDUCER ASSY,MAIN;REAR
|
|
| 1. |
120311-00054
|
[1] |
NUT,LOCK
|
|
| 10. |
140204-00020A
|
[1] |
SUPPORT,BEARING
|
140204-00020B
|
| 10. |
140204-00020B
|
[1] |
SUPPORT,BEARING
|
|
| 11. |
110947-00101
|
[2] |
SHIM S=0.2
|
|
| 12. |
110947-00102
|
[2] |
SHIM S=0.15
|
|
| 13. |
110947-00103
|
[2] |
SHIM S=0.1
|
|
| 14. |
140107-00177
|
[1] |
BEARING ASSY,TAPER ROLLER
|
|
| 15. |
130419-00023B
|
[1] |
PINION;FRONT AXLE
|
|
| 15. |
130419-00024B
|
[1] |
PINION;REAR AXLE
|
|
| 16. |
140107-00175
|
[1] |
BEARING,ROLLER
|
|
| 17. |
110913-00103B
|
[1] |
CASE,MAIN REDUCTION
|
|
| 18. |
140107-00174
|
[2] |
BEARING,TAPER ROLLER
|
|
| 19. |
120312-00132A
|
[2] |
NUT,ADJUSTING
|
|
| 2. |
120810-00093
|
[1] |
WASHER,PLAIN
|
|
| 20. |
250117-00044
|
[2] |
PLATE,FIXED
|
|
| 21. |
S0711851
|
[2] |
BOLT
|
|
| 22. |
S5100603
|
[2] |
WASHER
|
|
| 23. |
130411-00011C
|
[1] |
DIFFERENTIAL ASSY
|
|
| 23. |
130411-00037B
|
[1] |
DIFFERENTIAL ASSY
|
|
| 23-1. |
101529-00800
|
[1] |
. CASE,DIFFERENTIAL
|
|
| 23-1. |
110913-00294B
|
[1] |
. CASE,DIFFERENTIAL
|
|
| 23-10. |
120808-00181
|
[2] |
. WASHER
|
|
| 23-11. |
120501-00733A
|
[4] |
. PIN
|
|
| 23-1A. |
110913-00101A
|
[1] |
.. CASE,DIFFERENTIAL
|
|
| 23-1B. |
110913-00102A
|
[1] |
.. CASE,DIFFERENTIAL
|
|
| 23-2. |
130411-00012A
|
[2] |
. GEAR,DIFFERENTIAL
|
|
| 23-2. |
120808-00767A
|
[2] |
. WASHER
|
|
| 23-3. |
S0767061
|
[7] |
. BOLT,HEX
|
|
| 23-3. |
S2069261
|
[12] |
. BOLT,HEX FLANGE
|
|
| 23-4. |
120810-00092
|
[7] |
WASHER,PLAIN
|
|
| 23-4. |
130411-00038B
|
[2] |
. GEAR,DIFFERENTIAL
|
|
| 23-5. |
S4032941
|
[7] |
NUT,HEX
|
|
| 23-5. |
120808-00757
|
[4] |
. WASHER
|
|
| 23-6. |
130411-00013B
|
[3] |
. GEAR,DIFFERENTIAL
|
|
| 23-6. |
850434-00018A
|
[1] |
. SPIDER
|
|
| 23-7. |
120808-00180A
|
[4] |
. WASHER
|
|
| 23-7. |
130411-00044A
|
[4] |
. GEAR,DIFFERENTIAL
|
|
| 23-8. |
850434-00009A
|
[1] |
. SPIDER
|
|
| 23-8. |
110913-00295B
|
[1] |
. CASE,DIFFERENTIAL
|
|
| 24. |
120112-00479
|
[12] |
BOLT
|
|
| 25. |
120810-00092
|
[12] |
WASHER,PLAIN
|
|
| 26. |
S4032941
|
[12] |
NUT,HEX
|
|
| 27. |
130415-00019A
|
[1] |
GEAR,HELICAL;FRONT AXLE
|
|
| 27. |
130415-00020A
|
[1] |
GEAR,HELICAL;REAR AXLE
|
|
| 28. |
S6500351
|
[1] |
RING,RETAINING;SHAFT
|
|
| 29. |
120112-00480
|
[1] |
BOLT
|
120112-00480A
|
| 29. |
120112-00480A
|
[1] |
BOLT
|
430221-00195
|
| 29. |
430221-00195
|
[1] |
PLUG
|
|
| 3. |
430215-00237B
|
[1] |
FLANGE ASSY;FRONT AXLE
|
430215-00237C
|
| 3. |
430215-00237C
|
[1] |
FLANGE ASSY
|
|
| 3-1. |
430215-00238A
|
[1] |
. FLANGE;FRONT AXLE
|
430215-00238B
|
| 3-1. |
430215-00238B
|
[1] |
. FLANGE,INPUT
|
|
| 3-2. |
110910-00199A
|
[1] |
. CAP,DUST
|
|
| 30. |
S4035433
|
[1] |
NUT,HEX
|
|
| 31. |
120806-00031
|
[1] |
WASHER,LOCK
|
|
| 32. |
110949-00142
|
[1] |
SLEEVE
|
110949-00142A
|
| 32. |
110949-00142A
|
[1] |
SLEEVE
|
|
| 33. |
110947-00104
|
[2] |
SHIM；D66XD78X0.2T
|
|
| 34. |
110947-00105
|
[2] |
SHIM；D66XD78X0.15T
|
|
| 35. |
110947-00106
|
[2] |
SHIM；D66XD78X0.1T
|
|
| 36. |
110947-00107
|
[2] |
SHIM；D66XD78X0.05T
|
|
| 37. |
110949-00661
|
[1] |
SLEEVE
|
|
| 38. |
110949-00662
|
[1] |
SLEEVE
|
|
| 39. |
K1041989
|
[1] |
WASHER
|
|
| 4. |
401106-00171
|
[1] |
SEAL,OIL
|
|
| 5. |
401102-00029
|
[1] |
HOLDER,OIL SEAL
|
401102-00029A
|
| 5. |
401102-00029A
|
[1] |
HOLDER,OIL SEAL
|
|
| 6. |
S0563153
|
[8] |
BOLT M14X2.0X60
|
|
| 7. |
S5100803
|
[8] |
WASHER;SPRING
|
|
| 8. |
140107-00176
|
[1] |
BEARING ASSY,TAPER ROLLER
|
|
| 9. |
400612-00026A
|
[1] |
GASKET,FLANGE
|
400612-00072
|
| 9. |
400612-00072
|
[1] |
GASKET,FLANGE
|
|
