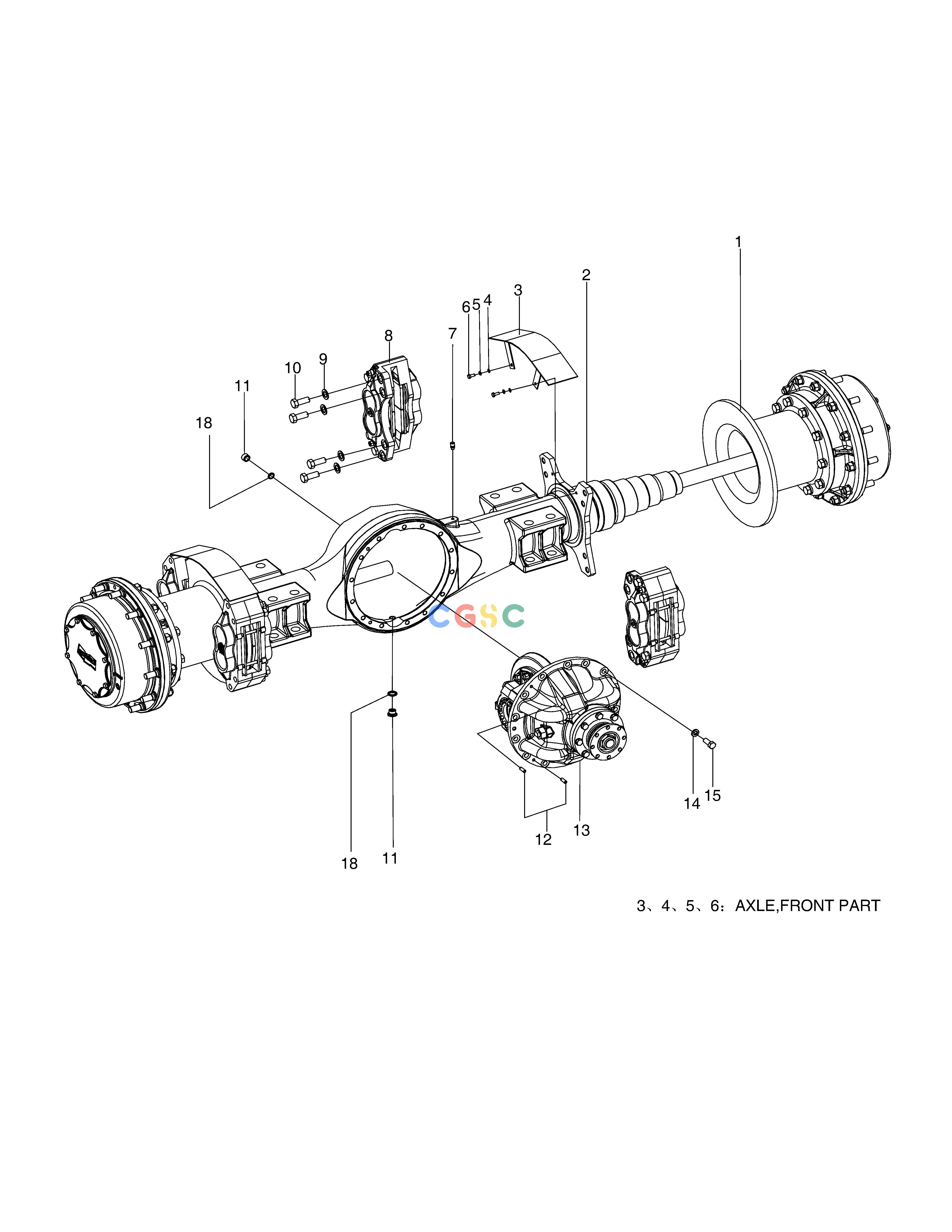

斗山零件查询AXLE ASS'Y - FRONT AND REAR AXLE(DISD) SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
682 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
190102-00098B
|
[1] |
AXLE,FRONT
|
|
| -. |
190103-00109C
|
[1] |
AXLE,REAR
|
|
| -. |
190102-00092A
|
[1] |
AXLE,FRONT
|
190102-00098B
|
| -. |
190103-00109A
|
[1] |
AXLE,REAR
|
190103-00109B
|
| -. |
190103-00109B
|
[1] |
AXLE,REAR
|
190103-00109C
|
| 1. |
130429-00081C
|
[2] |
REDUCER ASSY,WHEEL
|
|
| 1. |
130429-00081A
|
[2] |
REDUCER ASSY,WHEEL
|
|
| 1. |
130429-00081B
|
[2] |
REDUCER ASSY,WHEEL
|
130429-00081C
|
| 10. |
S0727763
|
[16] |
BOLT,HEX
|
|
| 11. |
430221-00755
|
[2] |
PLUG,MAGNETIC
|
|
| 12. |
120501-00759
|
[2] |
|
|
| 13. |
130429-00021G
|
[1] |
REDUCER ASSY,MAIN;REAR AXLE
|
130429-00021H
|
| 13. |
130429-00021H
|
[1] |
REDUCER ASSY,MAIN;REAR
|
|
| 13. |
130429-00020E
|
[1] |
REDUCER ASSY,MAIN;FRONTAXLE
|
|
| 13. |
130429-00021E
|
[1] |
REDUCER ASSY,MAIN;REAR AXLE
|
130429-00021G
|
| 14. |
S5100903
|
[14] |
|
|
| 15. |
S0721453
|
[14] |
|
|
| 18. |
120808-00614
|
[2] |
WASHER,SEAL
|
|
| 2. |
190113-00020C
|
[1] |
|
|
| 2. |
190113-00022C
|
[1] |
HOUSING ASSY;AXLE,REAR
|
190113-00022E
|
| 2. |
190113-00022E
|
[1] |
HOUSING ASSY;AXLE,REAR
|
|
| 3. |
110508-03636C
|
[2] |
COVER ASSY;AXLE,FRONT
|
|
| 3. |
110508-03636B
|
[2] |
COVER ASSY;AXLE,FRONT
|
110508-03636C
|
| 4. |
S5010503
|
[4] |
WASHER
|
|
| 5. |
S5100503
|
[4] |
WASHER
|
|
| 6. |
S0508853
|
[4] |
. BOLT
|
|
| 7. |
400811-00086
|
[1] |
BREATHER
|
|
| 7. |
400811-00021A
|
[1] |
BREATHER
|
|
| 8. |
130104-00096B
|
[4] |
BRAKE UNIT
|
|
| 9. |
S5101103
|
[16] |
WASHER;SPRING
|
|
