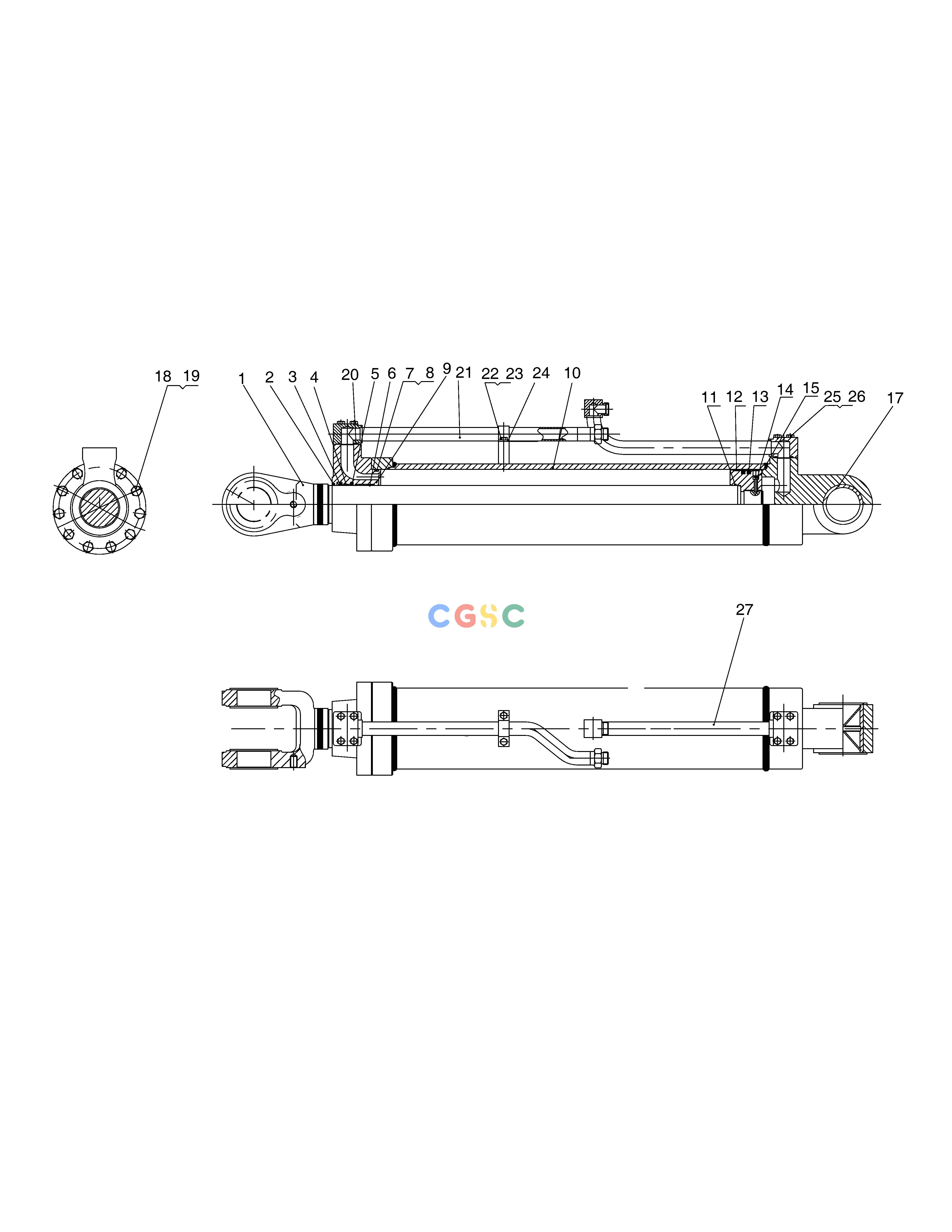

斗山零件查询BOOM CYLINDER(R.H) SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
568 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
101529-00004
|
[1] |
SEAL KIT;CYLINDER;BOOM
|
|
| . |
101529-00898
|
[1] |
SEAL KIT;CYLINDER;BOOM
|
|
| -. |
400309-00261A
|
[1] |
|
|
| 1. |
400337-00188
|
[1] |
|
|
| 10. |
150102-00486
|
[1] |
|
|
| 11. |
401002-00300
|
[1] |
RING,O
|
|
| 12. |
401003-00161
|
[2] |
|
|
| 13. |
K9008277
|
[2] |
|
|
| 14. |
K9008145
|
[1] |
BOLT
|
|
| 15. |
130602-00486
|
[1] |
|
|
| 17. |
K9008253
|
[1] |
|
|
| 18. |
120106-00334
|
[10] |
BOLT,HEX
|
|
| 18. |
120112-01687
|
[10] |
BOLT
|
|
| 19. |
120812-00057
|
[10] |
|
|
| 2. |
401003-00061
|
[1] |
RING,DUST
|
|
| 2. |
401003-00851
|
[1] |
RING,DUST
|
|
| 20. |
DS2851049
|
[2] |
O-RING
|
|
| 21. |
420207-00481A
|
[1] |
|
|
| 22. |
S0511653
|
[2] |
BOLT
|
|
| 23. |
S5010613
|
[2] |
WASHER
|
|
| 24. |
K1041046
|
[1] |
CLAMP
|
|
| 25. |
S0561053
|
[8] |
BOLT
|
|
| 26. |
S5010703
|
[8] |
WASHER;PLAIN
|
|
| 27. |
420207-00482
|
[1] |
|
|
| 28. |
401003-00853
|
[1] |
RING
|
|
| 3. |
K9008078
|
[1] |
SEAL RING
|
|
| 3. |
401109-00171
|
[1] |
SEALRING
|
|
| 4. |
K9008126
|
[1] |
SUPPORTING RING
|
|
| 5. |
K9008077
|
[1] |
SLOWING DOWN RING
|
|
| 6. |
401003-00160
|
[1] |
RING,SUPPORT
|
|
| 7. |
111104-00046
|
[1] |
|
|
| 8. |
401002-00299
|
[1] |
|
|
| 9. |
110910-00260
|
[1] |
|
|
