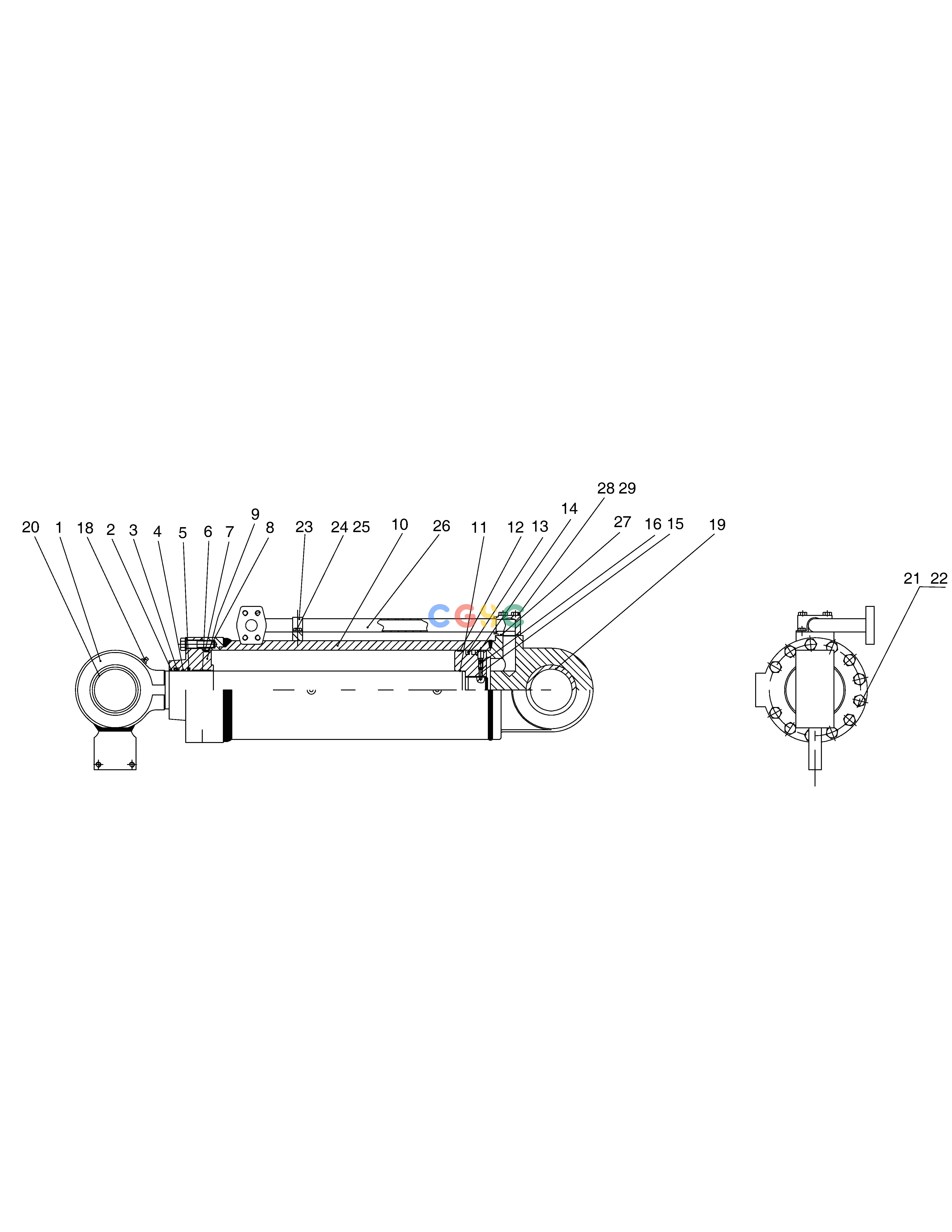

斗山零件查询BUCKET CYLINDER SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
358 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
101529-00005
|
[1] |
SEAL KIT;BUCKET CYLINDER
|
|
| . |
101529-00897
|
[1] |
SEAL KIT;BUCKET CYLINDER
|
|
| -. |
400310-00137C
|
[1] |
CYLINDER,BUCKET
|
|
| 1. |
400337-00187
|
[1] |
ROD,PISTON
|
|
| 10. |
150102-00322
|
[1] |
BLOCK,CYLINDER
|
|
| 11. |
401002-00300
|
[1] |
RING,O
|
|
| 12. |
401003-00162
|
[2] |
RING,SUPPORT
|
|
| 13. |
401001-00005
|
[2] |
RING,GLYD;D190
|
|
| 13. |
401001-00005
|
[1] |
RING,GLYD;D190
|
|
| 14. |
130602-00376
|
[1] |
PISTON
|
|
| 15. |
K9008145
|
[1] |
BOLT
|
|
| 16. |
120106-00363
|
[1] |
BOLT,HEX
|
|
| 16. |
120112-01685
|
[1] |
BOLT;M8X16
|
|
| 18. |
K9008269
|
[1] |
OIL CUP
|
|
| 19. |
K9008259
|
[1] |
SNAP RING
|
|
| 2. |
401003-00061
|
[1] |
RING,DUST
|
|
| 2. |
401003-00851
|
[1] |
RING,DUST
|
|
| 20. |
K9008260
|
[1] |
JOINT AXLE BEARING
|
|
| 21. |
120106-00337
|
[12] |
BOLT,HEX
|
|
| 21. |
120112-01686
|
[12] |
BOLT
|
|
| 22. |
K9008241
|
[12] |
WASHER,SPRING
|
|
| 23. |
K1041046
|
[1] |
CLAMP
|
|
| 24. |
S0511853
|
[2] |
BOLT
|
|
| 25. |
S5010613
|
[2] |
WASHER
|
|
| 26. |
420210-00146
|
[1] |
PIPE
|
|
| 27. |
DS2851049
|
[1] |
O-RING
|
|
| 28. |
S0561053
|
[4] |
BOLT
|
|
| 29. |
S5010703
|
[4] |
WASHER;PLAIN
|
|
| 3. |
K9008078
|
[1] |
SEAL RING
|
|
| 3. |
401109-00171
|
[1] |
SEALRING
|
|
| 30. |
401003-00852
|
[2] |
RING
|
|
| 4. |
K9008126
|
[1] |
SUPPORTING RING
|
|
| 5. |
K9008077
|
[1] |
SLOWING DOWN RING
|
|
| 6. |
401003-00160
|
[1] |
RING,SUPPORT
|
|
| 7. |
111104-00045
|
[1] |
RING,SNAP;190X180X2
|
|
| 8. |
401002-00301
|
[1] |
RING,O
|
|
| 9. |
110910-00224
|
[1] |
CAP,CYLINDER
|
|
