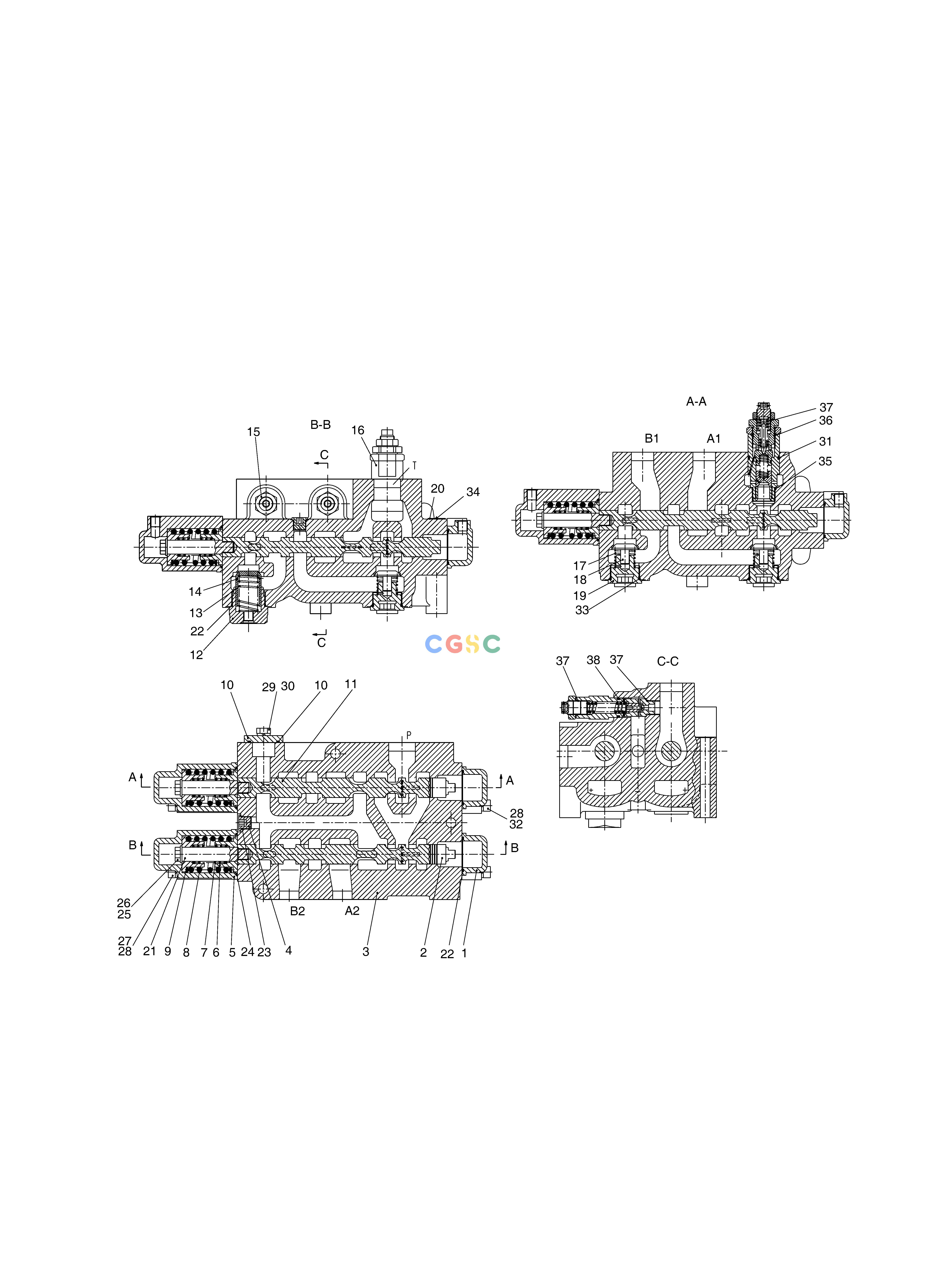

斗山零件查询CONTROL VALVE SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
779 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
401107-00743
|
[1] |
SEAL KIT;CONTROL VALVE(D32)
|
|
| -. |
410105-00132
|
[1] |
VALVE,CONTROL
|
|
| 1. |
110910-00058
|
[2] |
CAP,END
|
|
| 10. |
110514-00021
|
[1] |
COVER,HOUSING
|
|
| 11. |
110954-00004
|
[1] |
STEM
|
|
| 12. |
110502-00183
|
[1] |
COVER,BAFFLE
|
|
| 13. |
111601-00092
|
[1] |
SPRING
|
|
| 14. |
410127-00044
|
[1] |
VALVE ASSY,OVER LOAD RELIEF
|
|
| 15. |
410127-00045
|
[2] |
VALVE,OVER LOAD RELIEF
|
|
| 16. |
110979-00005
|
[1] |
HOUSING,RELIEF VALVE
|
|
| 17. |
111601-00085
|
[3] |
SPRING
|
|
| 18. |
410104-00033
|
[3] |
VALVE,CHECK
|
|
| 19. |
110508-00591
|
[3] |
COVER,VALVE
|
|
| 2. |
110954-00003
|
[1] |
STEM
|
|
| 20. |
950212-00012
|
[1] |
LABEL
|
|
| 21. |
430216-00030
|
[2] |
JOINT
|
|
| 22. |
K9009534
|
[3] |
O-RING 50 3.1
|
|
| 23. |
K9008168
|
[2] |
O-RING 20X2.4
|
|
| 24. |
401002-00156
|
[2] |
RING,O 60x3.1
|
|
| 25. |
K9009279
|
[2] |
WASHER 12
|
|
| 26. |
120106-00244
|
[2] |
BOLT,HEX
|
|
| 27. |
120106-00245
|
[4] |
BOLT,HEX
|
|
| 28. |
K9008329
|
[8] |
WASHER,SPRING 10
|
|
| 29. |
K9008239
|
[2] |
SPACER 12
|
|
| 3. |
100201-00104
|
[1] |
BLOCK,VALVE
|
|
| 30. |
120106-00246
|
[2] |
BOLT,HEX
|
|
| 31. |
401002-00157
|
[1] |
RING,O 45X3.1
|
|
| 32. |
120106-00247
|
[4] |
BOLT,HEX
|
|
| 33. |
401002-00158
|
[3] |
RING,O 44X3.5
|
|
| 34. |
120407-00011
|
[2] |
RIVET
|
|
| 35. |
401002-00373
|
[1] |
RING,O 30X2.65
|
|
| 36. |
401002-00374
|
[1] |
RING,O 35X3.5
|
|
| 37. |
401002-00375
|
[5] |
RING,O 22X2.4
|
|
| 38. |
401002-00376
|
[2] |
RING,O 28X3.1
|
|
| 4. |
430221-00128
|
[2] |
PLUG
|
|
| 5. |
110910-00059
|
[2] |
CAP,END
|
|
| 6. |
111601-00089
|
[4] |
SPRING,CARRIER
|
|
| 7. |
111601-00090
|
[2] |
SPRING
|
|
| 8. |
111601-00091
|
[2] |
SPRING
|
|
| 9. |
120808-00076
|
[1] |
WASHER,ADJUSTING
|
|
