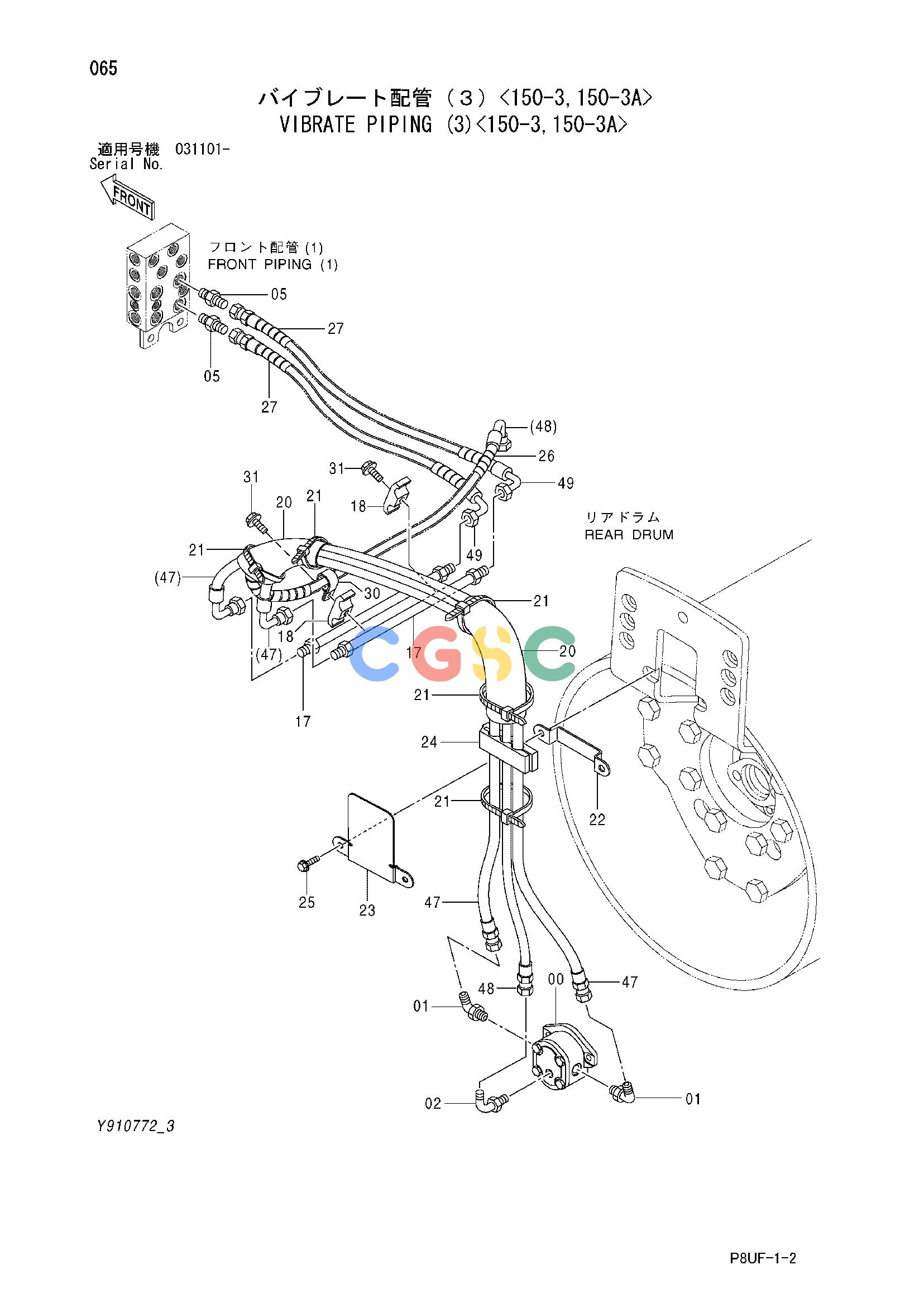

日立零件查询（CC150C-3A）VIBRATE PIPING (3)<150-3,150-3A> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
117 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y414931 | [1] | MOTOR;GEAR | |
| 01. | 4327300 | [2] | ELBOW;S | |
| 01A. | R26906R | [1] | O-RING | |
| 02. | 4277654 | [1] | ELBOW;S | |
| 02A. | R26448R | [1] | O-RING | |
| 05. | A852144 | [2] | ADAPTER;S | |
| 05A. | 4506418 | [1] | O-RING | |
| 17. | Y970739 | [2] | PIPE | |
| 18. | 4354753 | [2] | CLAMP;PIPE | |
| 20. | 4370544 | [2] | SEAT;RUBBER | |
| 21. | 4323613 | [5] | CLIP;BAND | |
| 22. | Y415989 | [1] | PLATE | |
| 23. | Y971733 | [1] | COVER | |
| 24. | Y415890 | [1] | CLAMP | |
| 25. | J271020 | [2] | BOLT;SEMS | |
| 25A. | J901020 | [1] | BOLT | |
| 25B. | J222010 | [1] | WASHER | |
| 26. | 4327294 | [1] | PROTECTOR | |
| 27. | 4446406 | [2] | PROTECTOR | |
| 30. | 4190274 | [1] | CLIP | |
| 31. | J271045 | [2] | BOLT;SEMS | |
| 31A. | J901045 | [1] | BOLT | |
| 31B. | J222010 | [1] | WASHER | |
| 47. | 4603709 | [2] | HOSE | |
| 48. | Y416233 | [1] | HOSE | |
| 49. | Y415849 | [2] | HOSE | |
