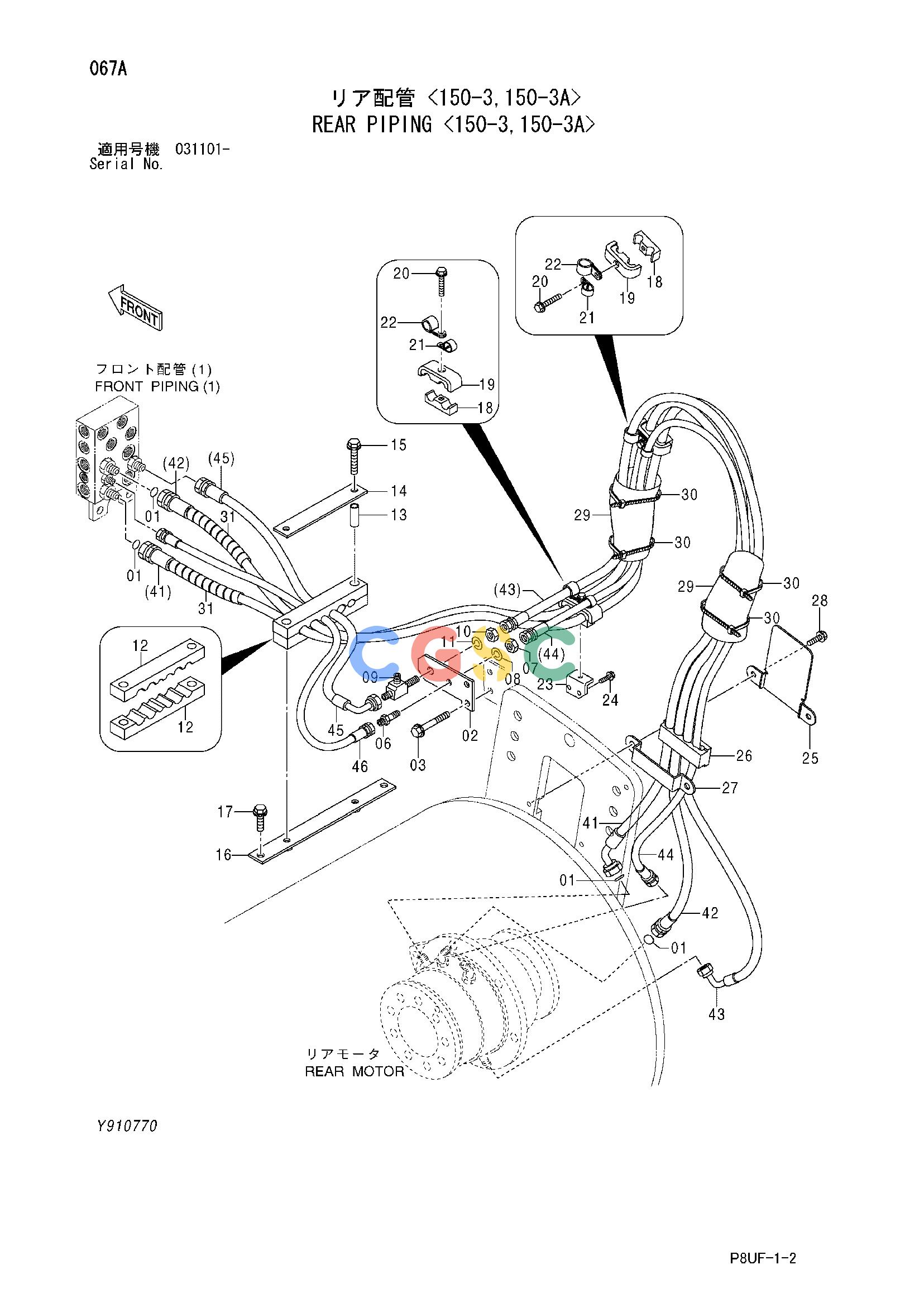

日立零件查询（CC150C-3A）REAR PIPING <150-3,150-3A> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
427 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 4138938 | [4] | O-RING | |
| 02. | Y415371 | [1] | PLATE | |
| 03. | J271030 | [2] | BOLT;SEMS | |
| 03A. | J901030 | [1] | BOLT | |
| 03B. | J222010 | [1] | WASHER | |
| 06. | 4248117 | [1] | ADAPTER;S | |
| 07. | 4209198 | [1] | NUT | |
| 08. | A590912 | [1] | WASHER;SPRING | |
| 09. | 4247260 | [1] | TEE;S | |
| 10. | 4202531 | [1] | NUT | |
| 11. | A590914 | [1] | WASHER;SPRING | |
| 12. | Y415370 | [2] | CLAMP | |
| 13. | Y404761 | [2] | SPACER | |
| 14. | Y404762 | [1] | PLATE | |
| 15. | J271080 | [2] | BOLT;SEMS | |
| 15A. | J901080 | [1] | BOLT | |
| 15B. | J222010 | [1] | WASHER | |
| 16. | Y971699 | [1] | BRACKET | |
| 17. | J271030 | [2] | BOLT;SEMS | |
| 17A. | J901030 | [1] | BOLT | |
| 17B. | J222010 | [1] | WASHER | |
| 18. | 4285722 | [2] | RUBBER | |
| 19. | 4285723 | [2] | CLAMP;PIPE | |
| 20. | J271270 | [2] | BOLT;SEMS | |
| 20A. | J901270 | [1] | BOLT | |
| 20B. | J222012 | [1] | WASHER | |
| 21. | 4190275 | [2] | CLIP | |
| 22. | 4190253 | [2] | CLIP | |
| 23. | Y407133 | [1] | BRACKET | |
| 24. | J271025 | [2] | BOLT;SEMS | |
| 24A. | J901025 | [1] | BOLT | |
| 24B. | J222010 | [1] | WASHER | |
| 25. | Y971733 | [1] | COVER | |
| 26. | Y416063 | [1] | CLAMP | |
| 27. | Y415989 | [1] | PLATE | |
| 28. | J271020 | [2] | BOLT;SEMS | |
| 28A. | J901020 | [1] | BOLT | |
| 28B. | J222010 | [1] | WASHER | |
| 29. | 4370544 | [2] | SEAT;RUBBER | |
| 30. | 4323613 | [4] | CLIP;BAND | |
| 31. | 4327294 | [2] | PROTECTOR | |
| 41. | Y415841 | [1] | HOSE | |
| 42. | Y415842 | [1] | HOSE | |
| 43. | 4313047 | [1] | HOSE | |
| 44. | Y407150 | [1] | HOSE | |
| 45. | 4229852 | [1] | HOSE | |
| 46. | 4269799 | [1] | HOSE <150> | |
| 46. | 4341692 | [1] | HOSE <150A> | |
