纽荷兰零件查询(DC95) - CRAWLER DOZER (8/04-) (02-07) - AIR CLEANER ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
823 次

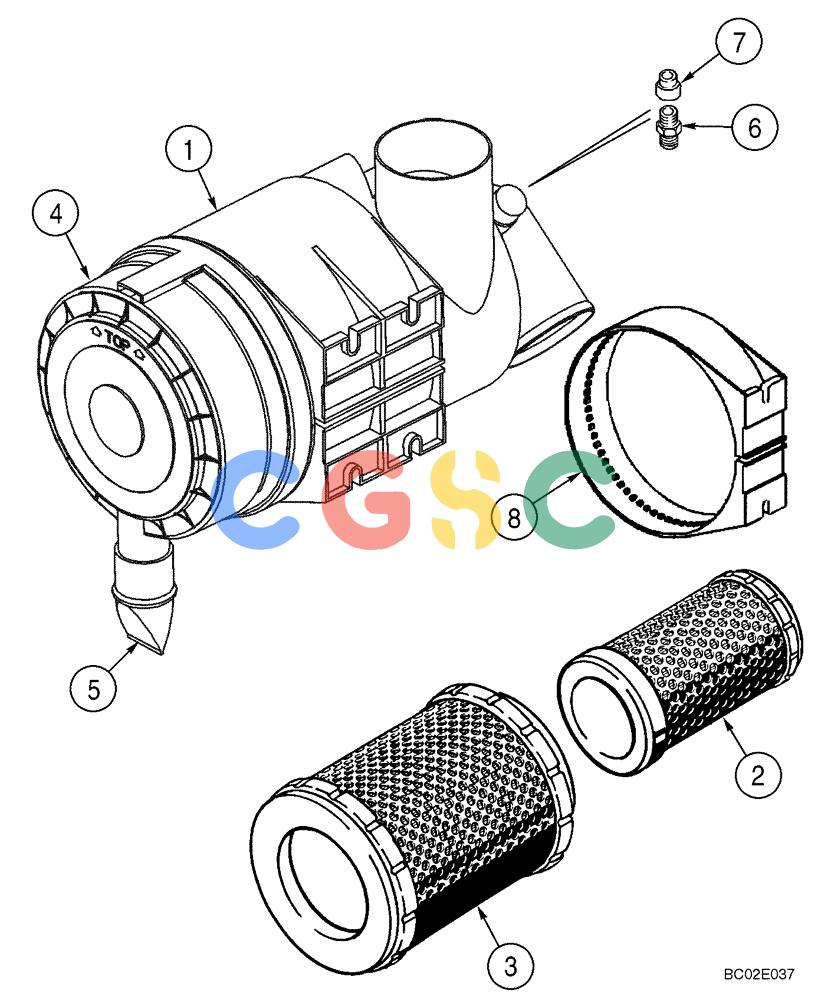

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 87434700 | [1] | AIR CLEANER | BURIncl. Ref 1 - 8 |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONHousing |
| 2. | 86993192 | [1] | FILTER, ELEMENT | FARSecondary, Inner, 4.27" OD x 15.87" Long ( 8602986 production pn ) Superseded by part number: 87683000 |
| 3. | 86993191 | [1] | FILTER, ELEMENT | FARPrimary, Outer, 8" OD x 16.12" Long ( 8602985 production pn ) Superseded by part number: 87682990 |
| 4. | 403766A1 | [1] | COVER | CAS Superseded by part number: 8604711 |
| 5. | A184939 | [1] | VALVE | CASRubber Superseded by part number: 8604231 |
| 6. | D36264 | [1] | FITTING | CASAir Restriction Indicator |
| 7. | 79081900 | [1] | SENSOR | LECAir |
| 8. | 76082938 | [1] | BRACKET | CASAir Restriction Superseded by part number: 87047322 |
