纽荷兰零件查询(DC95) - CRAWLER DOZER (8/04-) (02-13) - OIL PAN New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
970 次

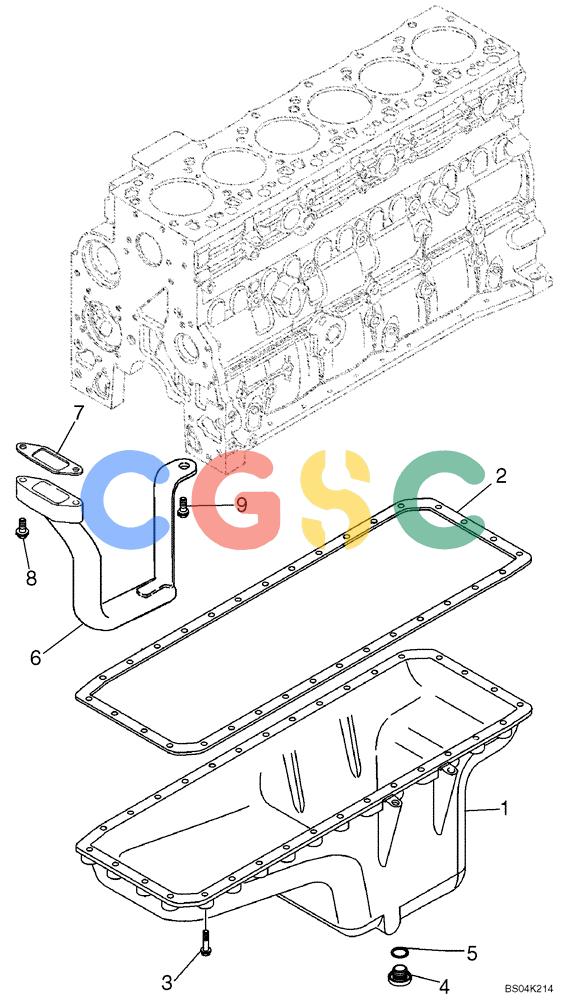

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2853460 | [1] | ENGINE OIL PAN | TOR |
| 2. | 2853461 | [1] | OIL PAN GASKET SET | TOROil Pan |
| 3. | 2853466 | [32] | SCREW | TORFlange, M8 x 30 Superseded by part number: J920400 |
| 4. | 2853464 | [1] | PLUG | TORM22, Threaded, Does Not Include Seal, Purchase Seal Separately, If Used Superseded by part number: J924148 |
| 4. | J924147 | [1] | PLUG,M18 x 1.5 | CASM18, If Used |
| 5. | 2853467 | [1] | PACKING RING | TOR Superseded by part number: J902425 |
| 6. | 2853463 | [1] | SUCTION PIPE | TOR |
| 7. | 2853462 | [1] | GASKET | TOR |
| 8. | 4899031 | [2] | BOLT,Flng, M8 x 1.25 x 25mm | TOR Superseded by part number: 4899079 |
| 9. | 2853465 | [1] | SCREW | TOR Superseded by part number: 87015905 |
