纽荷兰零件查询(DC95) - CRAWLER DOZER (8/04-) (02-14) - CYLINDER BLOCK - COVERS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
1016 次

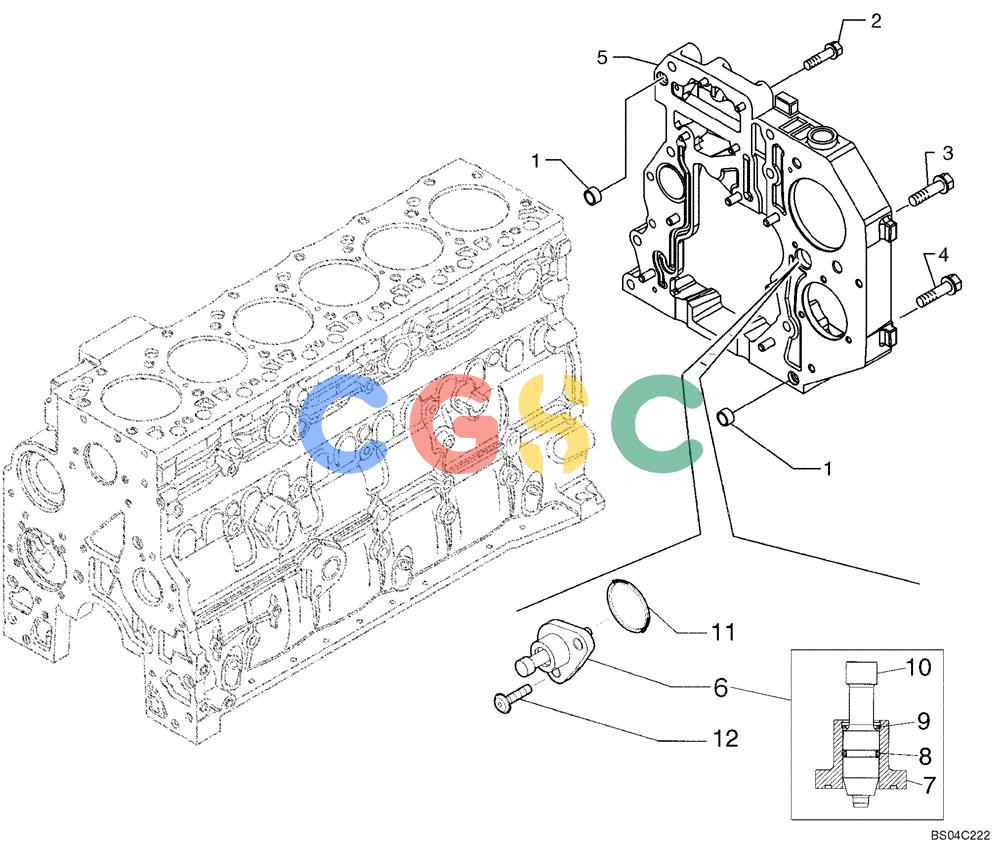

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899026 | [2] | DOWEL,M18 x 10 | TOR |
| 2. | 4899091 | [4] | SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm | BAS |
| 3. | 4899093 | [5] | BOLT,Hex Flange, M10 x 30.00mm, Cl 10.9, PHC | BAS |
| 4. | 4899073 | [2] | SCREW,Hex Flg, M12 x 1.75 x 30 | TOR |
| 5. | 2852620 | [1] | HOUSING | TORRear Gear Housing Superseded by part number: 504077359 |
| 6. | 2852515 | [1] | PIN | TORTiming; Incl. REF 7 - 10 Superseded by part number: 2855287, 2855295 |
| 7. | 2852518 | [1] | HOUSING | TORTiming Pin Superseded by part number: 2855295, 2855287 |
| 8. | 2852517 | [1] | O-RING | TOR |
| 9. | 2852759 | [1] | CIRCLIP | TORRetaining Superseded by part number: |
| 10. | 2852516 | [1] | PIN | TORTiming Superseded by part number: 2855295, 2855287 |
| 11. | 2852519 | [1] | O-RING,M21.95 ID x 1.78 Thk | TOR Superseded by part number: 17278781 |
| 12. | 4895355 | [2] | SCREW,M5 x 0.8 x 17mm, Cl 8.8 | TOR |
