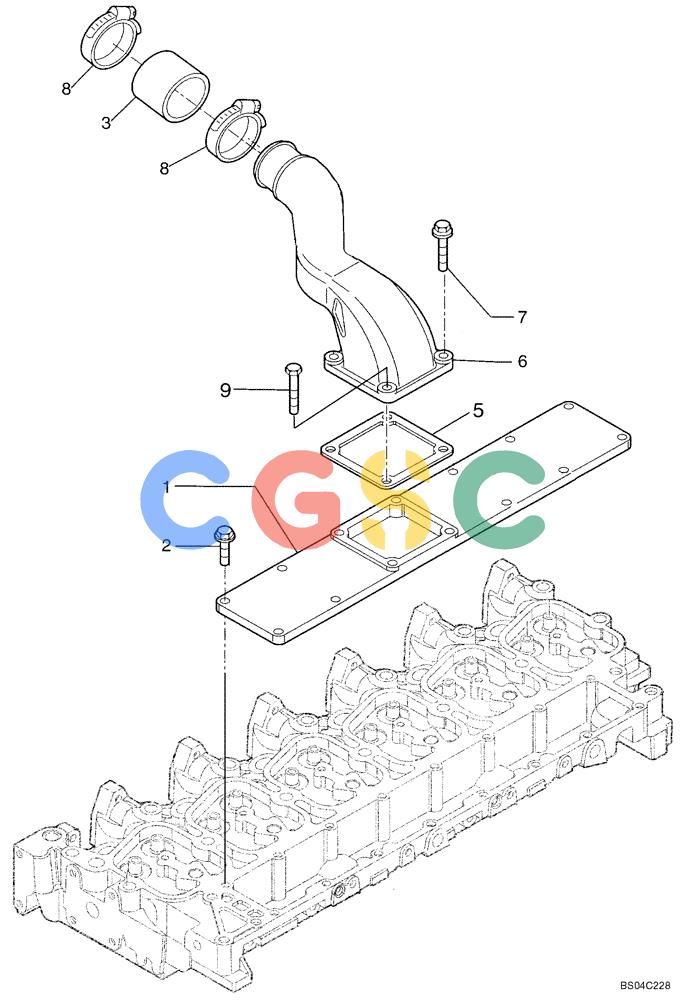

纽荷兰零件查询(DC95) - CRAWLER DOZER (8/04-) (02-21) - MANIFOLD - INTAKE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
324 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2852333 | [1] | COVER | TORIntake Manifold Superseded by part number: 2856513 |
| 2. | 4899039 | [10] | BOLT,Flng, M8 x 1.25 x 25mm, Cl 10.9 | TOR |
| 3. | 2853166 | [1] | SLEEVE | TOR Superseded by part number: 504072912 |
| 5. | 4899921 | [1] | GASKET,1.2mm Thk | TOR |
| 6. | 2853165 | [1] | MANIFOLD | TOR Superseded by part number: 504072911 |
| 7. | 2852267 | [2] | FLANGE BOLT,Hex, M8 x 1.25 x 90mm | TOR Superseded by part number: 16598224 |
| 8. | 2853167 | [2] | HOSE CLIP | TOR Superseded by part number: 13000990 |
| 9. | 2852266 | [2] | FLANGE BOLT,Hex, M8 x 1.25 x 140mm | TOR Superseded by part number: 16598625 |
