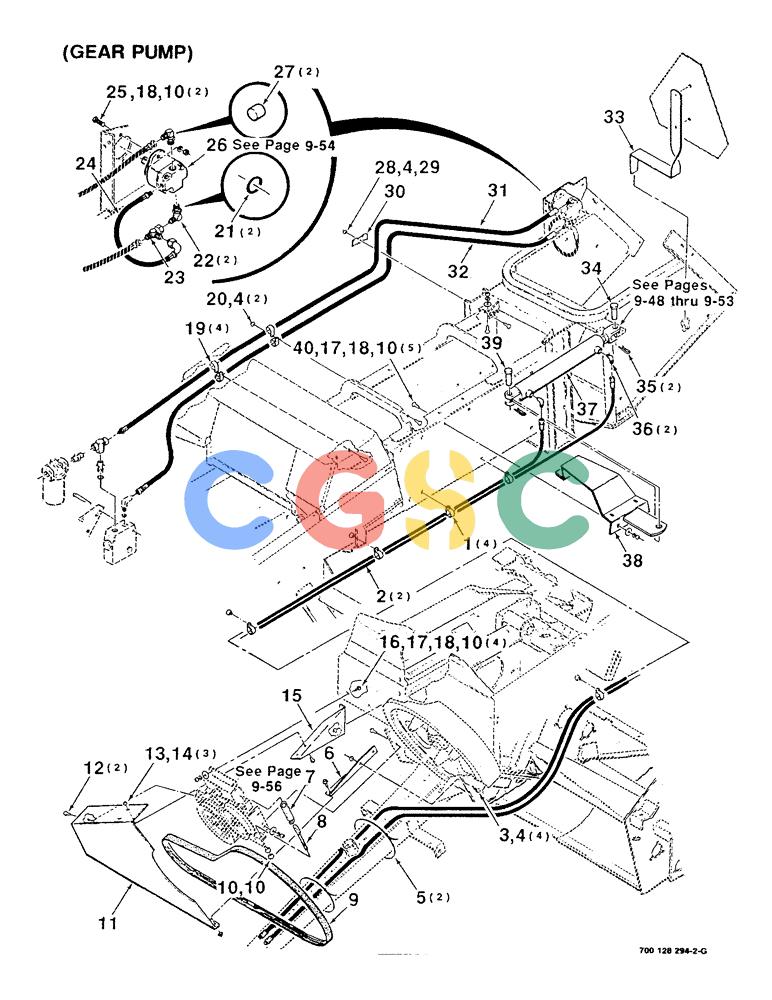

| 1. |
7898737
|
[4] |
CLAMP
|
CAS
- hose Superseded by part number: 9827902
|
| 2. |
700706425
|
[2] |
HOSE
|
CAS
- hydraulic
|
| 3. |
7703432
|
[4] |
BOLT,Hex, Serr, 3/8" - 16 x 3/4"
|
CAS
3/8-16 X 3/4 HFSS Superseded by part number: 255918
|
| 4. |
704247
|
[7] |
NUT
|
CAS
3/8-16 HFSLN Superseded by part number: 231-5146, 231-5146, 280736, 231-5146, 280736, 692965, 231-5146, 280736, 692965, 87362
|
| 5. |
7721798
|
[2] |
CABLE
|
CAS
TIE - cable
|
| 6. |
700110306
|
[1] |
SUPPORT
|
CAS
- shield, left
|
| 7. |
58180
|
[1] |
SPRING
|
CAS
- tension
|
| 8. |
6501167
|
[1] |
BOLT
|
CAS
3/8-16 DRAWBOLT
|
| 9. |
51200834
|
[1] |
BELT
|
CAS
V-BELT
|
| 10. |
704023
|
[13] |
NUT,3/8"-16, G5
|
CAS
3/8-16 H Superseded by part number: 280136
|
| 11. |
700111565
|
[1] |
SHIELD
|
CAS
- drive
|
| 12. |
7771322
|
[2] |
BOLT,Hex Serr, 5/16" - 18 x 1/2"
|
CAS
5/16-18 X 1/2 HFSS Superseded by part number: 256873
|
| 13. |
703132
|
[5] |
SERRATED SCREW
|
CAS
5/16-18 X 3/4 HFSS Superseded by part number: 145913
|
| 14. |
704239
|
[5] |
FRONT AXLE
|
NNA
5/16-18 HFSLN Superseded by part number: 231-5145, 231-5145, NLS
|
| 15. |
700110550
|
[1] |
SUPPORT
|
CAS
- shield, right
|
| 16. |
7703424
|
[4] |
FLANGE BOLT,Hex, Serr, 3/8" - 16 x 1"
|
CAS
3/8-16 X 1 HFSS Superseded by part number: 9706726
|
| 17. |
80702
|
[9] |
WASHER,0.44" ID x 1" OD x 0.08" Thk
|
NH
3/8 HARDENED PLAIN WASHER
|
| 18. |
705038
|
[11] |
CONTROL VALVE
|
CAS
3/8" Superseded by part number: 492-11038
|
| 19. |
755769
|
[4] |
CLAMP
|
HFI
- hose Superseded by part number: 87029955
|
| 20. |
7700065
|
[2] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5
|
CAS
3/8-16 X 3/4 RHSNB Superseded by part number: 280430
|
| 21. |
738484
|
[2] |
O-RING
|
IH
Superseded by part number: 167266
|
| 22. |
7046600
|
[2] |
ELBOW
|
HFI
90 DEGREE ELBOW (Includes item 21) Superseded by part number: 87329785
|
| 23. |
7846850
|
[1] |
TEE
|
CAS
- swivel run Superseded by part number: 86511870
|
| 24. |
700706426
|
[1] |
HOSE
|
CAS
- hydraulic
|
| 25. |
702035
|
[2] |
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd
|
CAS
3/8-16 X 1-1/4 C
|
| 26. |
7796386
|
[1] |
HYDRAULIC MOTOR
|
HFI
MOTOR - hydraulic Superseded by part number: 86629586, 700723556, 700723563, 76350
|
| 27. |
700051702
|
[2] |
PLUG
|
HFI
CAP (Shipping dust cap) Superseded by part number: 262159
|
| 28. |
700054
|
[1] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
|
CAS
3/8-16 X 1-1/4 RHSNB Superseded by part number: 86508773
|
| 29. |
88902
|
[1] |
NUT,3/8"-16
|
NH
3/8-16 HCLN
|
| 30. |
451641
|
[1] |
CLAMP
|
CAS
- line
|
| 31. |
700709942
|
[1] |
HYDRAULIC HOSE,12.70 mm ID x 2600.00 mm, SAE 100R2
|
CAS
12.70 mm ID x 2600.00 mm, SAE 100R2
|
| 32. |
700709941
|
[1] |
HYDRAULIC HOSE,12.70 mm ID x 2600.00 mm, SAE 100R1
|
CAS
12.70 mm ID x 2600.00 mm, SAE 100R1
|
| 33. |
1661172
|
[1] |
SUPPORT
|
CAS
SPADE - SMV
|
| 34. |
7037682
|
[1] |
PIN
|
CAS
- clevis, special Superseded by part number: B17284
|
| 35. |
S120261
|
[2] |
PIN
|
CAS
.148 X 2-3/4 HAIRPIN COTTER
|
| 36. |
7746381
|
[2] |
ELBOW
|
CAS
3/8 X 90 DEGREE ELBOW Superseded by part number: 218-1054
|
| 37. |
796102
|
[1] |
CYLINDER
|
CAS
- hydraulic Superseded by part number: 700711032, 700711078
|
| . . |
700704934
|
[1] |
CYLINDER
|
CAS
- hydraulic Superseded by part number: 700711078, 700711032
|
| . . |
700711032
|
[1] |
CYLINDER ASSY.
|
L
CYLINDER - hydraulic
|
| 38. |
700112726
|
[1] |
SUPPORT
|
CAS
BRACKET - mounting, cylinder
|
| 39. |
700711078
|
[1] |
PIN
|
CAS
1 X 3-7/32 CLEVIS PIN, special
|
| 40. |
700047
|
[5] |
BOLT
|
CAS
3/8-16 X 1 RHSNB Superseded by part number: 80280503
|
