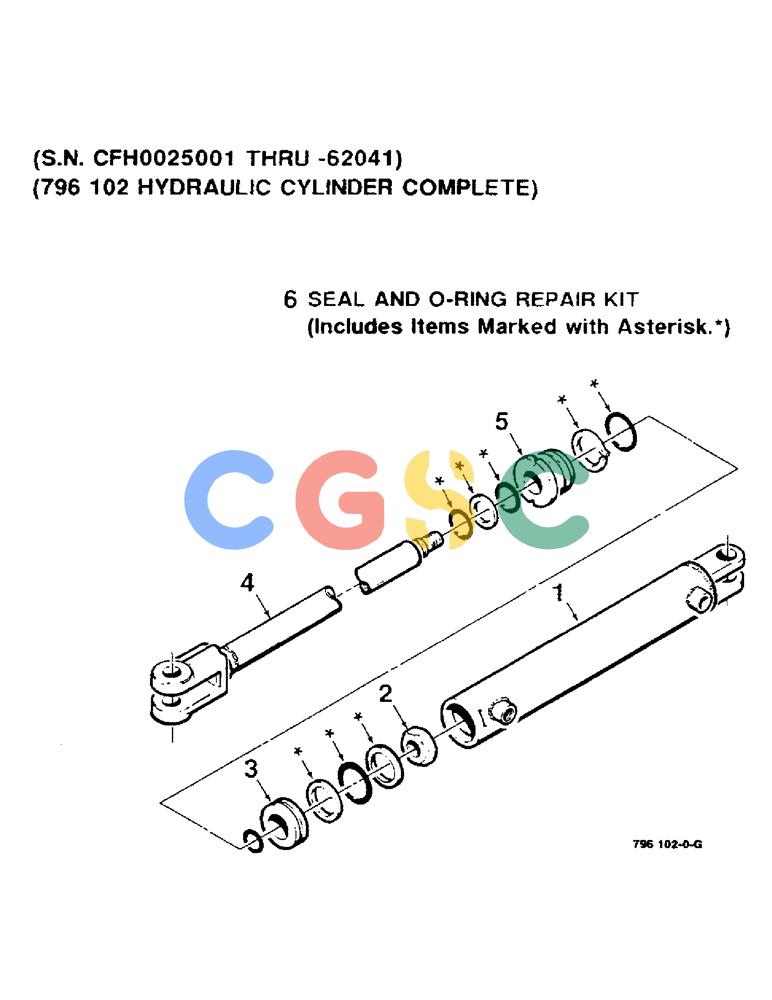

凯斯零件查询(8520) - CASE IH RECTANGULAR BALER (1/88-12/99) (9-48) - BALE THROWER HYD CYLINDER ASSY, (S.N. CFH0025001 - CFH0062041) (796102 HYDRAULIC CYLINDER COMPLETE) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
610 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
796102
|
[1] |
CYLINDER
|
CAS
HYDRAULIC CYLINDER COMPLETE Superseded by part number: 700711032, 700711078
|
| 1. |
7733033
|
[1] |
CYLINDER
|
HFI
BARREL
|
| 2. |
7733058
|
[1] |
LOCK NUT
|
HFI
LOCKNUT Superseded by part number: 230-46112
|
| 3. |
7032485
|
[1] |
PISTON
|
HFI
Superseded by part number: H347757
|
| 4. |
7733041
|
[1] |
ROD
|
CAS
- piston
|
| 5. |
7733025
|
[1] |
GLAND
|
CAS
RETAINER (Gland)
|
| 6. |
7733066
|
[1] |
SEAL KIT
|
CAS
AND O-RING REPAIR KIT, Includes items in art marked with asterisk
|
