纽荷兰零件查询(DC95) - CRAWLER DOZER (8/04-) (02-33) - PIPING - ENGINE OIL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
545 次

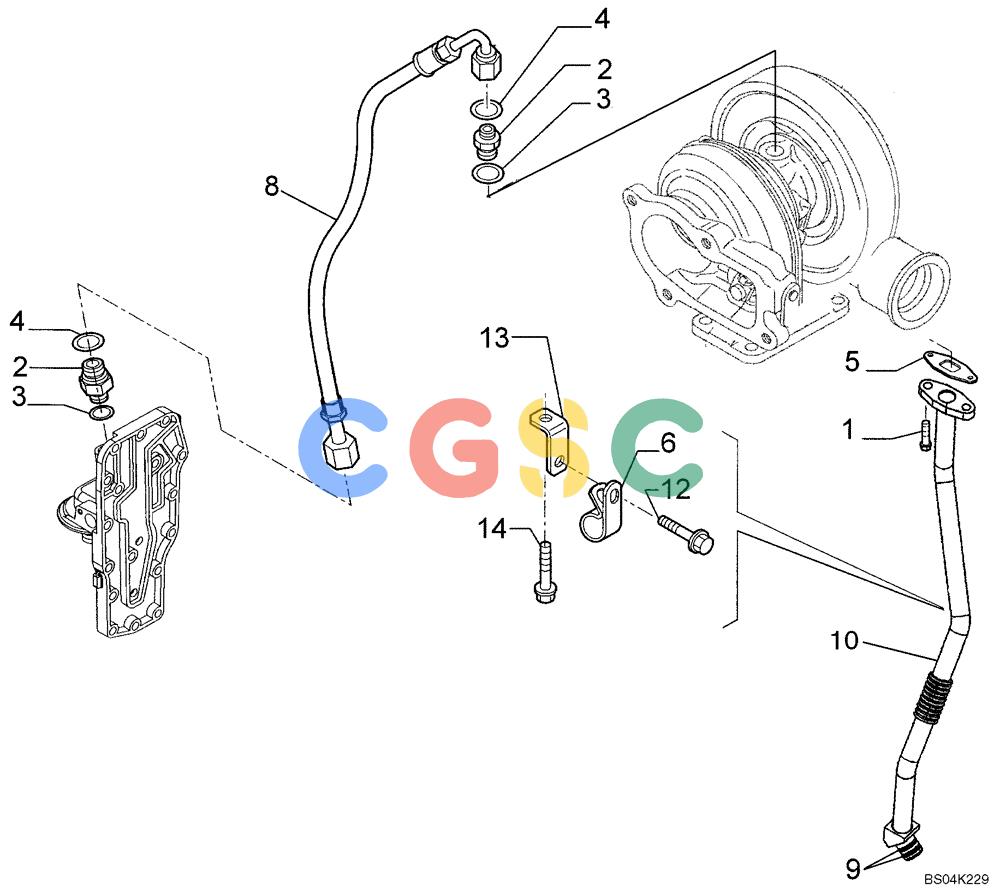

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2852100 | [2] | FLANGE BOLT,Hex, M8 x 1.25 x 16mm | TOR Superseded by part number: 16586225 |
| 2. | 4895107 | [2] | HYD CONNECTOR,11/16"-16 x M12 | TORIncl. Ref 3, 4 Superseded by part number: |
| 3. | 4899107 | [1] | O-RING,1.8mm Thk x 10.52mm ID | TOR |
| 4. | 4899108 | [1] | O-RING,0.364mm ID x 0.07mm Width | TOR Superseded by part number: 17277981 |
| 5. | 4891288 | [1] | GASKET,0.8mm Thk | TOROil Drain |
| 6. | 2852380 | [1] | BRACKET | TORClamp Superseded by part number: 99477631 |
| 8. | 2852746 | [1] | HOSE,6.35mm ID x 698mm L | TOR Superseded by part number: 504084096 |
| 9. | 4899058 | [2] | O-RING,0.674" ID x 0.88" OD x 0.103" | TOR Superseded by part number: 17281881 |
| 10. | 2852384 | [1] | PIPE | TORIncl. Ref 9 Superseded by part number: 47547976 |
| 12. | 4895291 | [1] | SCREW,Hex Flg, M10 x 1.5 x 20 | TOR |
| 13. | 2852390 | [1] | BRACKET | TORFlange Superseded by part number: 98459285 |
| 14. | 4899068 | [1] | BOLT,Flng, M8 x 1.25 x 16mm | BAS |
| . . | 4895462 | [1] | CLAMP | TOR |
| . . | 4896893 | [1] | CLAMP | TOR |
| . . | 2852389 | [1] | FLANGE NUT | TOR |
| . . | 4895089 | [1] | PLUG | TOR.886" OD |
| . . | 4899031 | [1] | BOLT,Flng, M8 x 1.25 x 25mm | TOR Superseded by part number: 4899079 |
