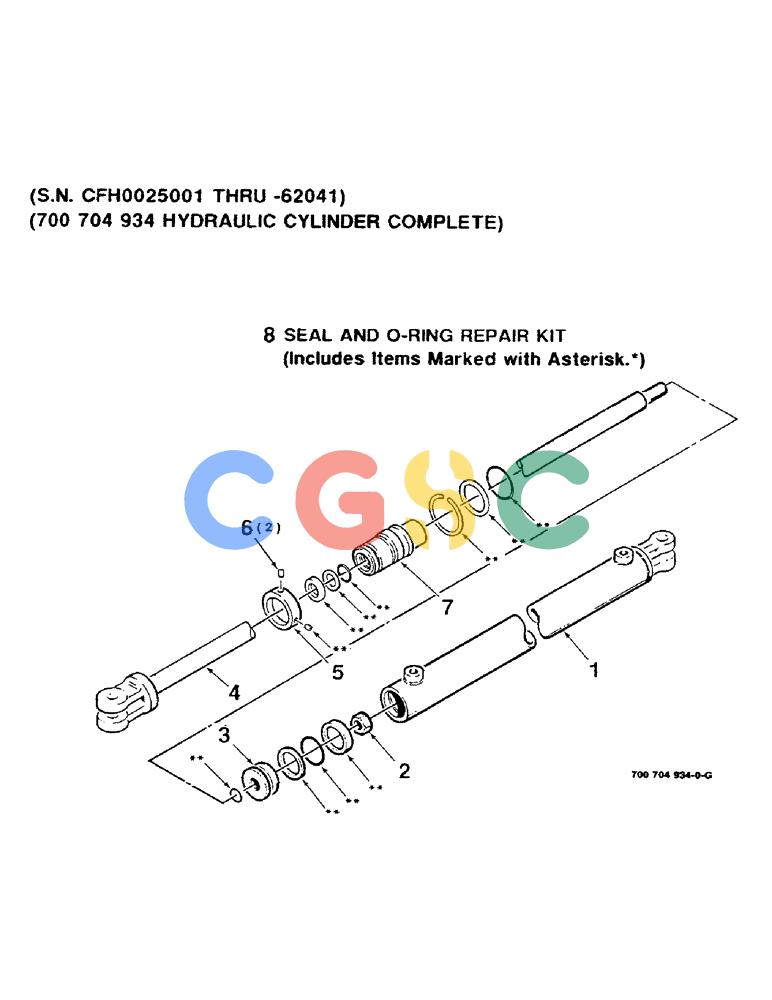

凯斯零件查询(8520) - CASE IH RECTANGULAR BALER (1/88-12/99) (9-50) - BALE THROWER HYD CYLINDER ASSY (S.N. CFH0025001 - CFH0062041) (700704934 HYDRAULIC CYLINDER COMPLETE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
217 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
700704934
|
[1] |
CYLINDER
|
CAS
HYDRAULIC CYLINDER COMPLETE Superseded by part number: 700711078, 700711032
|
| 1. |
700704936
|
[1] |
SLEEVE CYLINDER
|
CAS
BARREL
|
| 2. |
700704938
|
[1] |
LOCK NUT
|
CAS
LOCKNUT
|
| 3. |
700704942
|
[1] |
PISTON
|
CAS
|
| 4. |
700704937
|
[1] |
ROD
|
CAS
- piston
|
| 5. |
700704939
|
[1] |
RETAINER
|
CAS
|
| 6. |
NLS
|
[2] |
NO LONGER SERVICED
|
BAS
1/4-20 X 1/4 CPHSSS
|
| 7. |
700704935
|
[1] |
BUSHING
|
CAS
BEARING
|
| 8. |
700704941
|
[1] |
SEAL KIT
|
CAS
AND O-RING REPAIR KIT, Includes items in art marked with asterisk
|
