沃尔沃零件查询KAD32P; TAMD42WJ-A; KAD43P-A; KAMD43P; KAMD43P-A; KAMD43P-B; KAD44P; KAD44P-B; KAD44P-C; KAMD44P-A; KAMD44P-C; KAD300-A; KAMD300-A; HS1A; HS1EControlsMS Unit 16-pole: KAMD44P-B SN-2204403421, KAD44P-B SN-2204403360EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
700 次

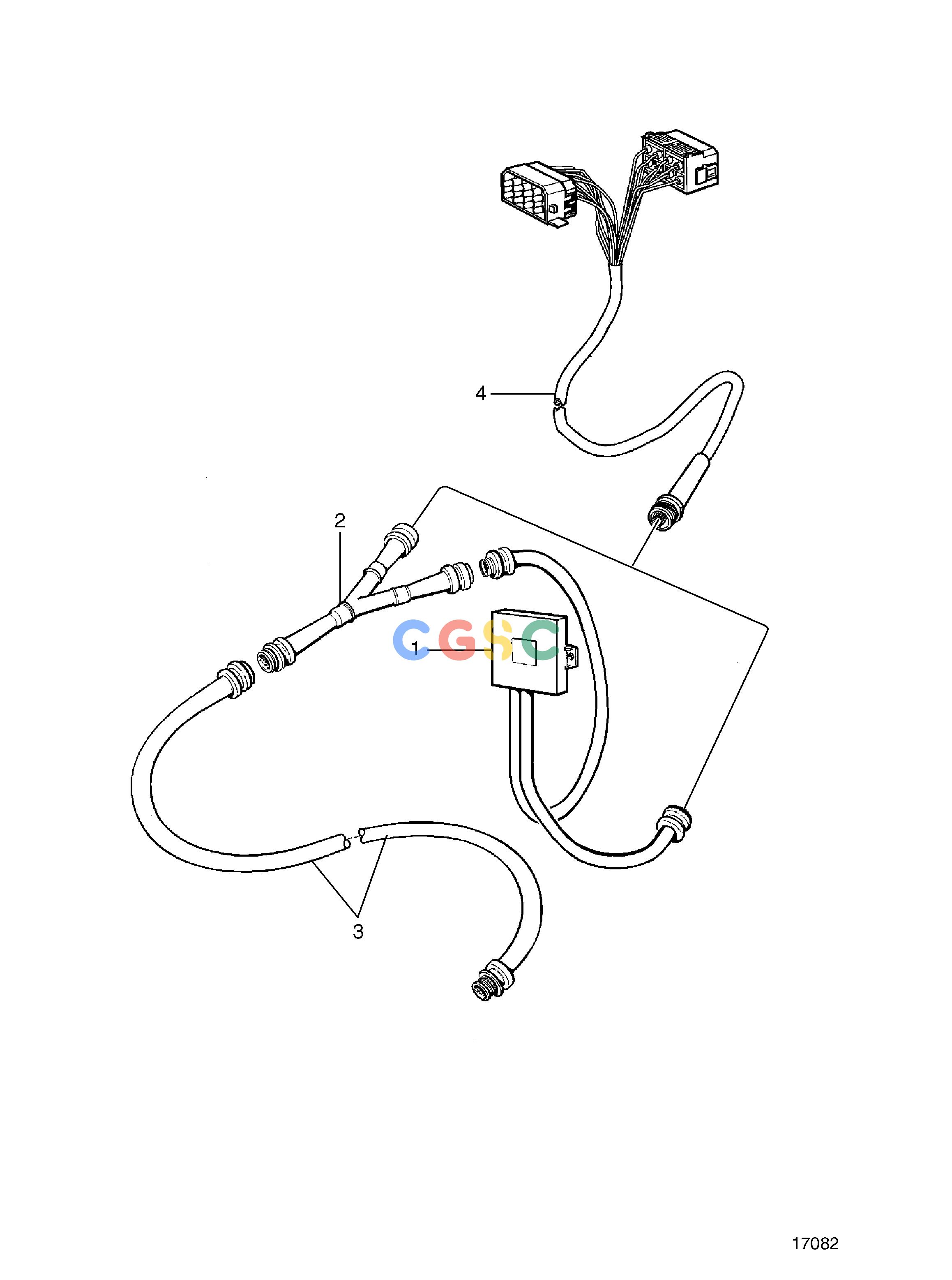

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
873873
|
[1] |
Electronic unit
|
Nb! also avaible as 2x8-pole system., 16-pole
|
| 2. |
873637
|
[1] |
Wiring harness
|
|
| 3. |
846648
|
[1] |
Extension cable
|
L=3000mm, 16-pole
|
| 3. |
846649
|
[1] |
Extension cable
|
L=5000mm, 16-pole
|
| 3. |
846650
|
[1] |
Extension cable
|
L=7000mm, 16-pole
|
| 3. |
873838
|
[1] |
Extension cable
|
L=9000mm, 16-pole
|
| 3. |
873839
|
[1] |
Extension cable
|
L=11000mm, 16-pole
|
| 4. |
873912
|
[1] |
Extension cable
|
Matched connection from 16-pole to 2x8-pole., L=3000mm, 2x8-pole
|
| 4. |
873861
|
[1] |
Extension cable
|
Matched connection from 16-pole to 2x8-pole., L=5000mm, 2x8-pole
|
| 4. |
873905
|
[1] |
Extension cable
|
Matched connection from 16-pole to 2x8-pole., L=7000mm, 2x8-pole
|
| 4. |
873906
|
[1] |
Extension cable
|
Matched connection from 16-pole to 2x8-pole., L=9000mm, 2x8-pole
|
| 4. |
873907
|
[1] |
Extension cable
|
Matched connection from 16-pole to 2x8-pole., L=11000mm, 2x8-pole
|
