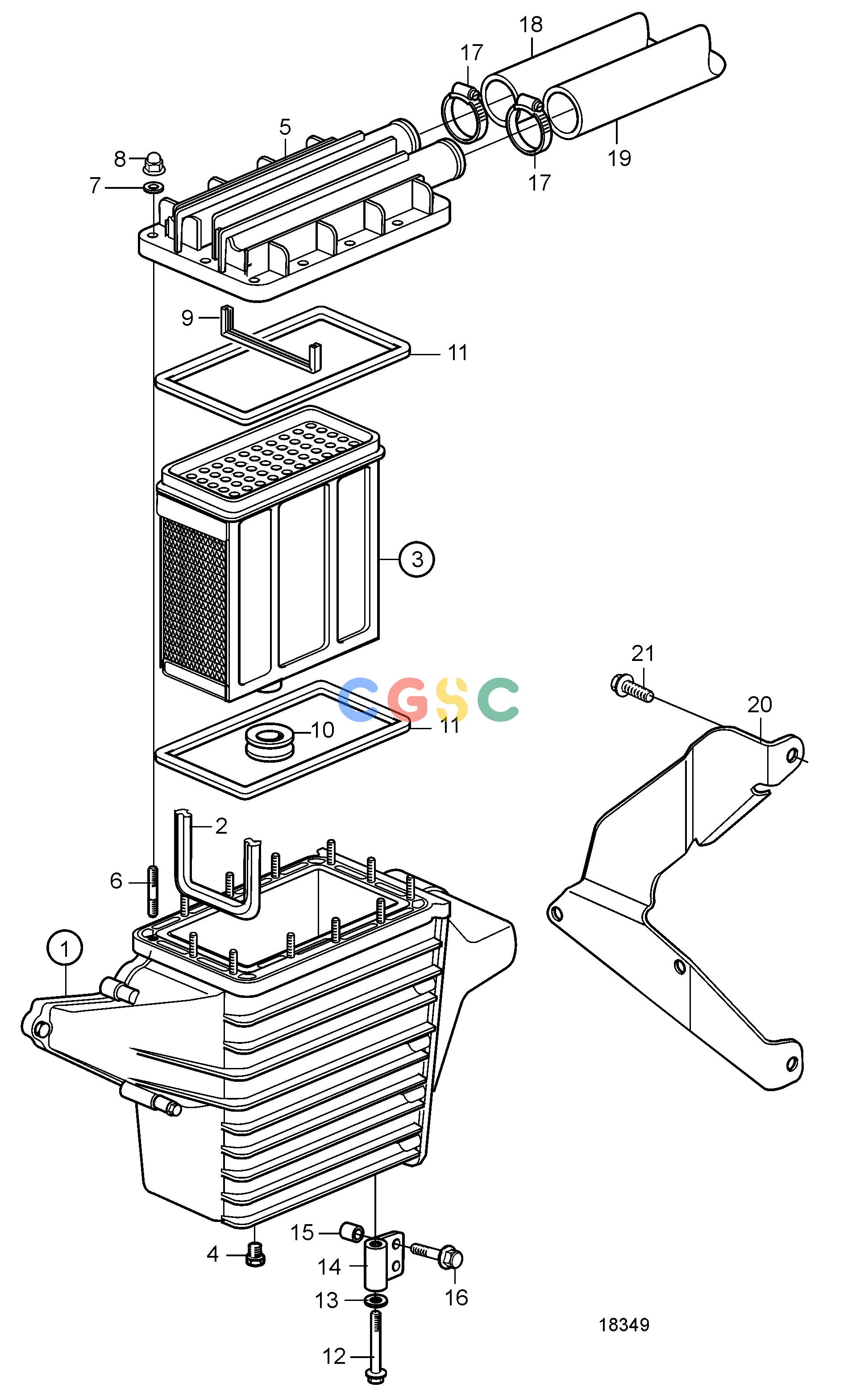

沃尔沃零件查询KAD32P; TAMD42WJ-A; KAD43P-A; KAMD43P; KAMD43P-A; KAMD43P-B; KAD44P; KAD44P-B; KAD44P-C; KAMD44P-A; KAMD44P-C; KAD300-A; KAMD300-A; HS1A; HS1ECooling SystemAftercoolerEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
376 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
861657
|
[1] |
Housing
|
|
| 2. |
3582639
|
[1] |
Sealing strip
|
(838831)
|
| 3. |
3582598
|
[1] |
Insert
|
(861553)
|
| 4. |
861551
|
[1] |
Plug
|
|
| 5. |
860409
|
[1] |
Cover
|
|
| 6. |
953036
|
[12] |
Stud
|
|
| 7. |
955893
|
[12] |
Washer
|
|
| 8. |
968458
|
[12] |
Flange cap nut
|
|
| 9. |
847573
|
[1] |
Sealing strip
|
|
| 10. |
858979
|
[1] |
Sealing ring
|
|
| 11. |
860920
|
[2] |
Gasket
|
|
| 12. |
965183
|
[1] |
Flange screw
|
|
| 13. |
976944
|
[1] |
Washer
|
|
| 14. |
3580762
|
[1] |
Bracket
|
|
| 15. |
861554
|
[2] |
Spacer
|
|
| 16. |
965226
|
[2] |
Flange screw
|
|
| 17. |
994560
|
[2] |
Hose clamp
|
|
| 18. |
860644
|
[1] |
Hose
|
After cooler-oil cooler.
|
| 19. |
860405
|
[1] |
Hose
|
Heat exchanger-after cooler.
|
| 20. |
3581025
|
[1] |
Bracket
|
|
| 21. |
946173
|
[2] |
Flange screw
|
|
