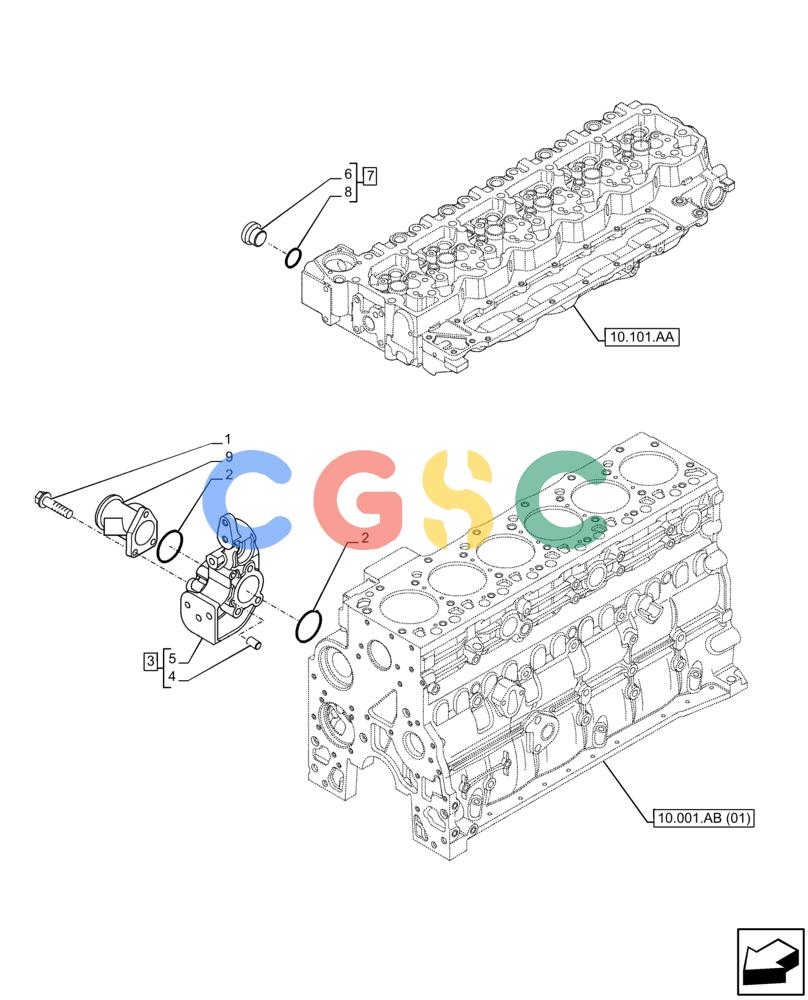

神钢零件查询(F4HFE6136 B003) - ENGINE 5801939277 47603479 SPRAYER PATRIOT 2250 T4B (7/15-) (10.400.AE) - COOLANT HEATING LINES Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
858 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2852325 | [3] | SCREW | TOR Superseded by part number: 16592925 |
| 2. | 4899824 | [2] | SEALING WASHER,18.2mm ID x 21.9mm OD x 1.5mm Thk | TOR Superseded by part number: 16508360 |
| 4. | 98405182 | [2] | DOWEL | TOR |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONSupport, Incl in 3 |
| 7. | 4895080 | [1] | HEX SOCKET PLUG,M22 x 1.5 | TORASSY, Incl 6, 8 |
| 8. | 2854072 | [1] | SEALING RING,Square, 5.16mm Thk x 50.17mm ID | TOR Superseded by part number: 504062710 |
