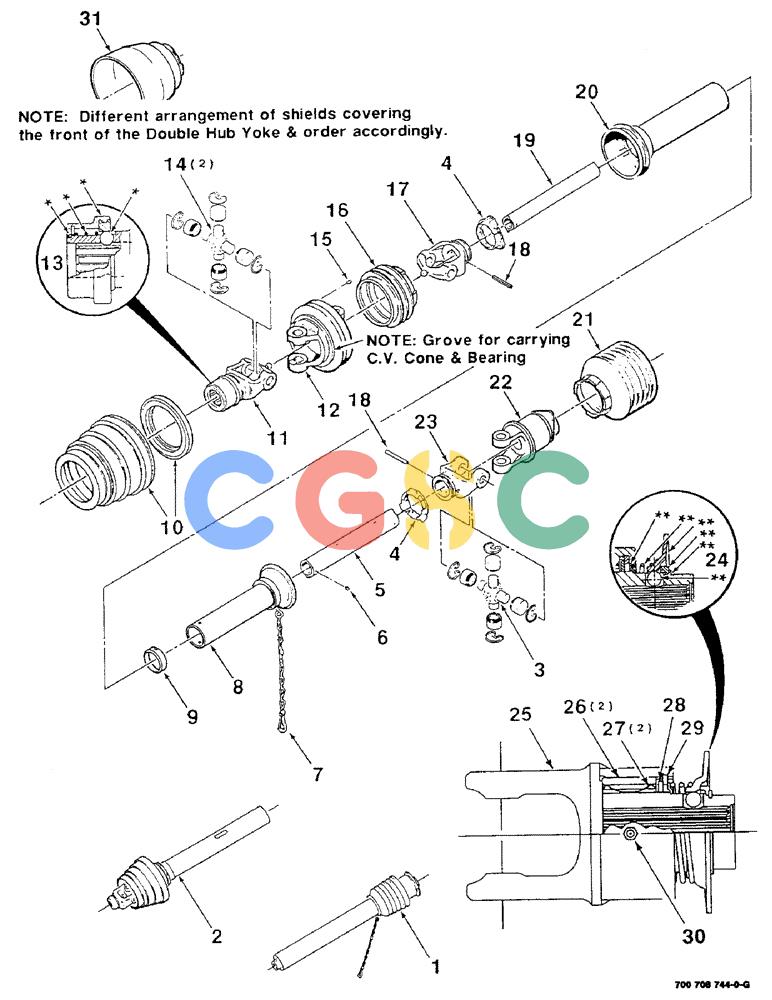

凯斯零件查询(8520) - CASE IH RECTANGULAR BALER (1/88-12/99) (2-04) - IMPLEMENT DRIVELINE (WALTERSHIED) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
210 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700708794
|
[1] |
YOKE
|
CAS
U-JOINT ASSEMBLY - implement half
|
| 2. |
700708795
|
[1] |
YOKE
|
CAS
U-JOINT ASSEMBLY - implement half
|
| 3. |
700707540
|
[1] |
KIT
|
CAS
JOURNAL REPAIR KIT - clutch end Superseded by part number: 84355315
|
| 4. |
700707545
|
[2] |
OIL SEAL
|
CAS
RING - bearing, shield Superseded by part number: 1281450C1
|
| 5. |
700707542
|
[1] |
PROFILE
|
HFI
TUBE - inner, drive
|
| 6. |
700707556
|
[1] |
NIPPLE, LUBE
|
IH
ZERK Superseded by part number: 80750220
|
| 7. |
1281453C1
|
[1] |
CHAIN (AG)
|
IH
CHAIN - safety Superseded by part number: 87586692
|
| 8. |
700707548
|
[1] |
SHIELD
|
HFI
TUBE - shield, inner
|
| 9. |
700707550
|
[1] |
SUPPORT
|
HFI
BEARING - support Superseded by part number: 9803337
|
| 10. |
700708598
|
[1] |
CONE
|
CAS
CV CONE AND BEARING ASSEMBLY
|
| 11. |
700707534
|
[1] |
YOKE
|
HFI
- splined, front Superseded by part number: 87532978
|
| 12. |
700707535
|
[1] |
YOKE
|
HFI
HUB YOKE - double
|
| 13. |
700707557
|
[1] |
KIT
|
IH
COLLAR KIT - quick disconnect, Includes items in art marked with asterisk Superseded by part number: 86525265
|
| 14. |
700707537
|
[2] |
KIT
|
CAS
JOURNAL REPAIR KIT - front Superseded by part number: 84355360
|
| 15. |
77552
|
[1] |
NIPPLE, LUBE
|
CAS
ZERK - grease Superseded by part number: 84447449
|
| 16. |
700708599
|
[1] |
SHIELD
|
CAS
- cone, 2 rib
|
| 17. |
700707536
|
[1] |
JOINT ASSY.
|
HFI
YOKE - inboard, front
|
| 18. |
700707538
|
[2] |
PIN, ROLL
|
CAS
SLOTTED SPRING PIN Superseded by part number: 838-31065
|
| 19. |
700707541
|
[1] |
PROFILE
|
HFI
TUBE - outer, drive
|
| 20. |
700707546
|
[1] |
SHIELD
|
HFI
TUBE - shield, outer
|
| 21. |
700707551
|
[1] |
SHIELD
|
HFI
- cone, ribbed, clutch end
|
| 22. |
700707544
|
[1] |
CLUTCH
|
HFI
- overrunning
|
| 23. |
700707543
|
[1] |
JOINT ASSY.
|
HFI
YOKE - inboard, clutch end
|
| 24. |
700707558
|
[1] |
KIT
|
HFI
FLANGE KIT - clutch, quick disconnect, Includes items in art marked with double asterisk Superseded by part number: 86514860
|
| 25. |
700710682
|
[1] |
HOUSING
|
CAS
- clutch
|
| 26. |
700710683
|
[2] |
KEY
|
CAS
Superseded by part number: 449316
|
| 27. |
700710684
|
[2] |
SPRING
|
L
- leaf Superseded by part number: 449317
|
| 28. |
700710685
|
[1] |
OIL SEAL
|
CAS
RING - supporting Superseded by part number: 449318
|
| 29. |
700710686
|
[1] |
OIL SEAL
|
CAS
RING - retaining Superseded by part number: 370018
|
| 30. |
8800476
|
[1] |
FITTING
|
HFI
45 DEGREE ZERK
|
| 31. |
700707549
|
[1] |
SHIELD
|
HFI
CONE - front
|
