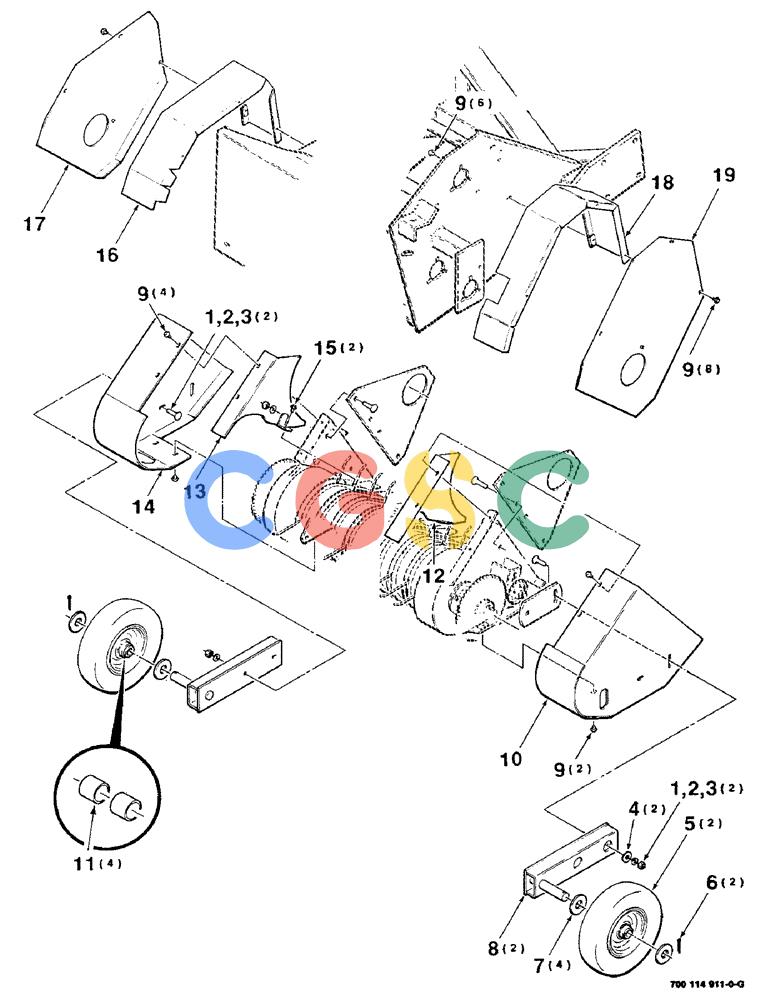

凯斯零件查询(8520) - CASE IH RECTANGULAR BALER (1/88-12/99) (3-12) - PICKUP GAUGE WHEELS AND SHIELDS ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
760 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
68619
|
[4] |
BOLT,Round, 1/2" - 13 x 1 1/4", Grade 5
|
CAS
1/2-13 X 1-1/4 RHSNB Superseded by part number: 87868
|
| 2. |
80679
|
[4] |
LOCK WASHER,1/20.507 CST ZND
|
NH
WASHER, LOCK, 1/2"
|
| 3. |
704031
|
[4] |
NUT
|
NNA
1/2-13 H Superseded by part number: 425-108, 425-108, NLS
|
| 4. |
705541
|
[2] |
WASHER,0.53" ID x 1.06" OD x 0.14" Thk
|
CAS
1/2 HARDENED PLAIN WASHER
|
| 5. |
700707953
|
[2] |
RIM
|
CAS
WHEEL - gauge (Includes item 11) Superseded by part number: 705574, 84351108
|
| 6. |
432-1224
|
[2] |
COTTER PIN,3/16" x 1-1/2"
|
CAS
3/16 X 1-1/2 COTTER PIN Superseded by part number: 80754
|
| 7. |
705574
|
[4] |
WASHER,1 1/8" x 2" x .156", HDN
|
CAS
|
| 8. |
700112269
|
[2] |
STRUT
|
CAS
WA - gauge wheel
|
| 9. |
7771322
|
[20] |
BOLT,Hex Serr, 5/16" - 18 x 1/2"
|
CAS
5/16-18 X 1/2 HFSS Superseded by part number: 256873
|
| 10. |
700112285
|
[1] |
SHIELD
|
HFI
WA - end, left
|
| 11. |
700712011
|
[4] |
BUSHING
|
CAS
|
| 12. |
700111510
|
[1] |
SHIELD
|
HFI
WA - auger, left
|
| 13. |
700111511
|
[1] |
SHIELD
|
HFI
WA - auger, right
|
| 14. |
700112288
|
[1] |
SHIELD
|
HFI
SHEILD WA - right
|
| 15. |
703132
|
[2] |
SERRATED SCREW
|
CAS
5/16-18 X 3/4 HFSS Superseded by part number: 145913
|
| 16. |
700112280
|
[1] |
SHIELD
|
HFI
WA - right
|
| 17. |
700112274
|
[1] |
SHIELD
|
HFI
- side, right
|
| 18. |
700112278
|
[1] |
SHIELD
|
HFI
WA - left
|
| 19. |
700112273
|
[1] |
SHIELD
|
HFI
- side, left
|
