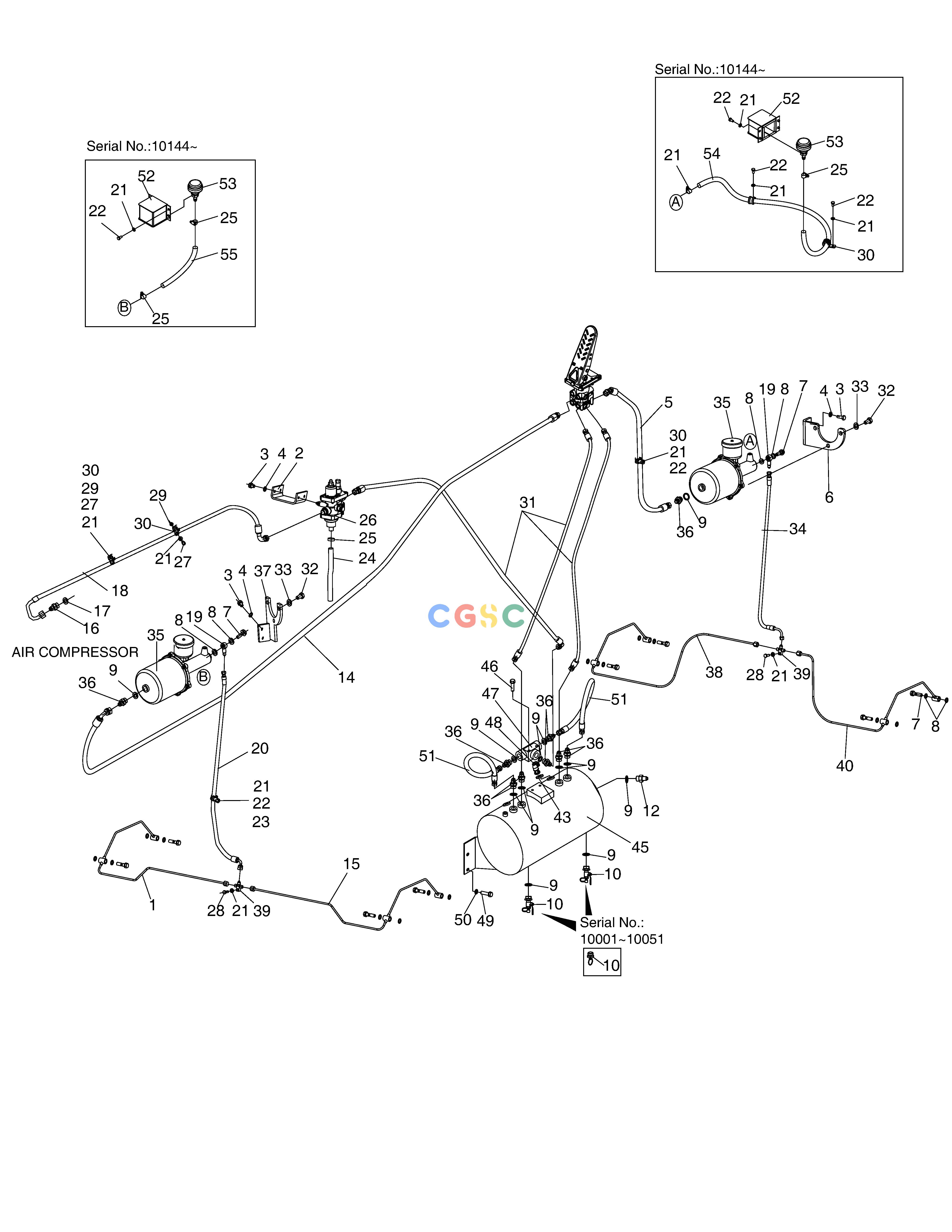

斗山零件查询DUAL BRAKE SYSTEM ASS'Y-PARKING(ZF/DISD) SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
455 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-11654
|
[-] |
|
|
| 1. |
420207-01779E
|
[1] |
PIPE
|
420207-01779G
|
| 1. |
420207-01779G
|
[1] |
PIPE
|
|
| 1. |
420207-01779B
|
[1] |
PIPE
|
|
| 1. |
420207-01779C
|
[1] |
PIPE
|
420207-01779E
|
| 10. |
410116-00167
|
[2] |
VALVE
|
410116-00984
|
| 10. |
410116-00984
|
[2] |
VALVE,AIR
|
|
| 12. |
410116-00119A
|
[1] |
VALVE,AIR
|
|
| 14. |
420101-00840
|
[1] |
HOSE,AIR
|
|
| 15. |
420207-01778E
|
[1] |
PIPE
|
420207-01778G
|
| 15. |
420207-01778G
|
[1] |
PIPE
|
|
| 15. |
420207-01778B
|
[1] |
PIPE
|
|
| 15. |
420207-01778C
|
[1] |
PIPE
|
420207-01778E
|
| 16. |
430201-00250
|
[1] |
ADAPTER
|
|
| 17. |
120810-00149A
|
[1] |
WASHER,PLAIN
|
|
| 18. |
420101-00624
|
[1] |
HOSE,AIR
|
|
| 18. |
420101-00624A
|
[1] |
HOSE,AIR
|
|
| 19. |
430201-00522A
|
[2] |
ADAPTER;HOLLOW
|
|
| 19. |
430201-00522
|
[2] |
ADAPTER;HOLLOW
|
430201-00522A
|
| 2. |
250201-01657
|
[1] |
|
|
| 20. |
420105-00926A
|
[1] |
HOSE
|
|
| 20. |
420105-00926
|
[1] |
HOSE
|
420105-00926A
|
| 21. |
S5000513
|
[10] |
. WASHER;PLAIN
|
|
| 21. |
S5000513
|
[20] |
. WASHER;PLAIN
|
|
| 22. |
S0508653
|
[2] |
BOLT
|
|
| 22. |
S0508653
|
[12] |
BOLT
|
|
| 23. |
124-00208D2
|
[1] |
CLAMP
|
|
| 24. |
420101-00107
|
[1] |
HOSE,AIR
|
|
| 25. |
S8450016
|
[1] |
. CLAMP
|
|
| 25. |
S8450016
|
[5] |
. CLAMP
|
|
| 26. |
410116-00017A
|
[1] |
SEPARATOR;WATER
|
|
| 27. |
S0508853
|
[2] |
. BOLT
|
|
| 28. |
S0509053
|
[2] |
. BOLT
|
|
| 29. |
S4012533
|
[2] |
NUT
|
|
| 3. |
S0512063
|
[6] |
WASHER
|
|
| 30. |
124-00208D3
|
[3] |
CLIP
|
|
| 30. |
124-00208D3
|
[5] |
CLIP
|
|
| 31. |
420101-01070
|
[3] |
|
|
| 32. |
S0518053
|
[6] |
BOLT
|
|
| 33. |
S5010803
|
[6] |
WASHER;PLAIN
|
|
| 34. |
420105-00927A
|
[1] |
HOSE
|
|
| 34. |
420105-00927
|
[1] |
HOSE
|
420105-00927A
|
| 35. |
400916-00133A
|
[2] |
BRAKE PUMP
|
|
| 35. |
400916-00401
|
[2] |
PUMP
|
|
| 36. |
430201-00198
|
[9] |
ADAPTER
|
|
| 37. |
110406-01760A
|
[1] |
|
|
| 38. |
420207-01776E
|
[1] |
PIPE
|
420207-01776G
|
| 38. |
420207-01776G
|
[1] |
PIPE
|
|
| 38. |
420207-01776C
|
[1] |
PIPE
|
420207-01776E
|
| 38. |
420207-01776B
|
[1] |
PIPE
|
|
| 39. |
430225-00140
|
[2] |
TEE
|
|
| 39. |
430225-00041
|
[2] |
TEE
|
|
| 4. |
S5010613
|
[6] |
WASHER
|
|
| 40. |
420207-01777C
|
[1] |
PIPE
|
420207-01777E
|
| 40. |
420207-01777E
|
[1] |
PIPE
|
420207-01777G
|
| 40. |
420207-01777G
|
[1] |
PIPE
|
|
| 40. |
420207-01777B
|
[1] |
PIPE
|
|
| 43. |
K1041083D1
|
[1] |
|
|
| 45. |
400804-00069
|
[1] |
|
|
| 46. |
S0556653
|
[2] |
BOLT M8X1.25X65
|
|
| 47. |
410116-00834
|
[1] |
|
|
| 48. |
K1041091
|
[1] |
SWITCH;PRESSURE
|
|
| 49. |
S0515053
|
[4] |
BOLT M12X1.75X25
|
|
| 5. |
420101-00180
|
[1] |
HOSE,AIR
|
|
| 50. |
S5102703
|
[4] |
WASHER
|
|
| 51. |
420101-01071
|
[2] |
|
|
| 52. |
110508-18520A
|
[2] |
COVER
|
|
| 53. |
400408-00046
|
[2] |
FILTER,SUCTION
|
|
| 54. |
420101-01084
|
[1] |
HOSE,AIR;WEICHAI
|
|
| 55. |
420101-01148
|
[1] |
HOSE,AIR;WEICHAI
|
|
| 6. |
250201-00657
|
[1] |
PLATE
|
|
| 7. |
120106-00381
|
[10] |
BOLT,HEX
|
|
| 8. |
DS2851089
|
[20] |
RING,O Φ8
|
|
| 9. |
120808-00090
|
[12] |
WASHER,SEAL
|
|
