斗山零件查询ELECTRIC ASSY-Fuel Filler Pump SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
380 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

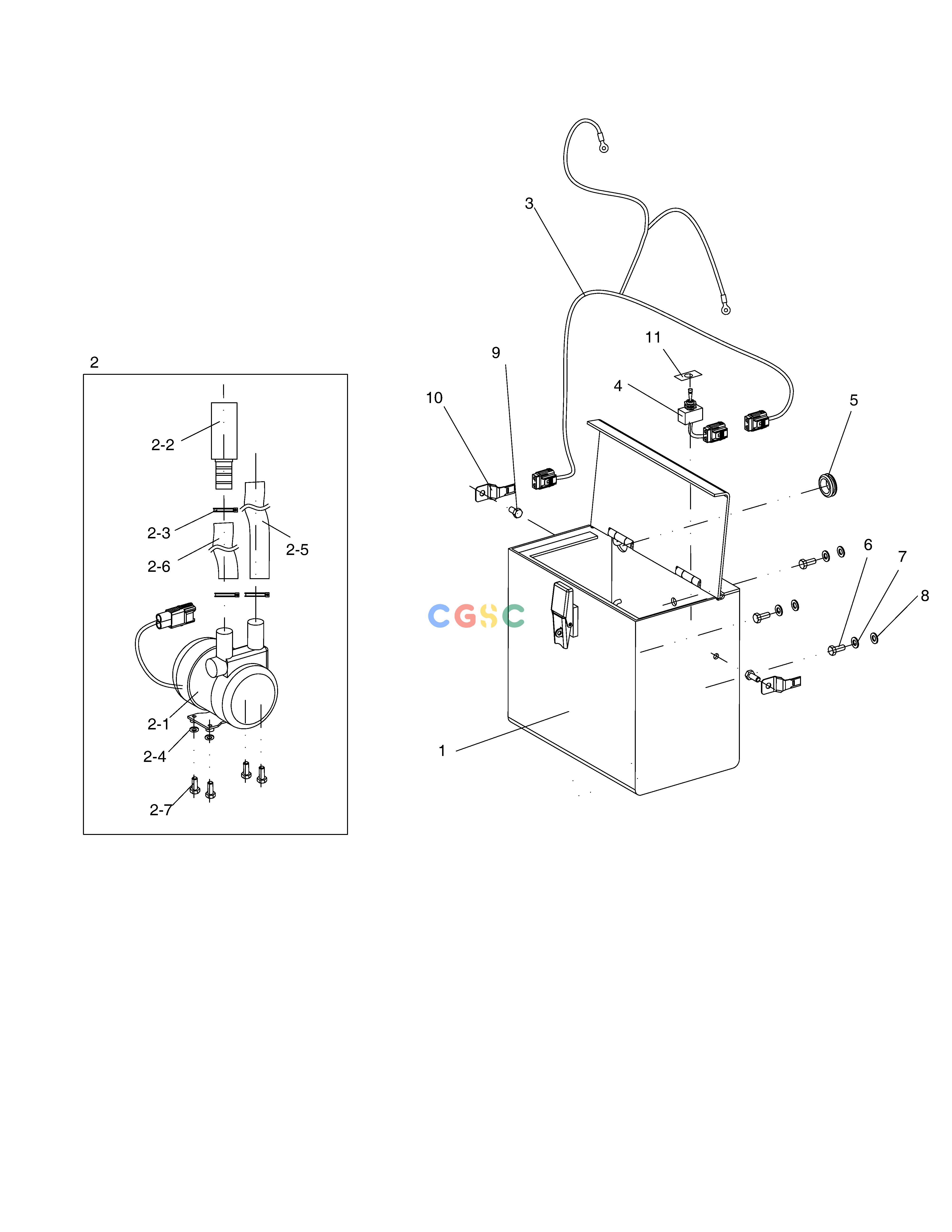

300619-02668
|
[-] |
ELECTRIC ASSY
|
|
| 1. |
110906-00742A
|
[1] |
BOX
|
110906-00742B
|
| 1. |
110906-00742B
|
[1] |
BOX
|
|
| 10. |
110406-01873
|
[2] |
BRACKET,HOUSING
|
|
| 11. |
950209-04751
|
[1] |
PLATE,NAME;SWITCH
|
|
| 12. |
301202-00310
|
[1] |
RELAY
|
|
| 13. |
S3460863
|
[1] |
SCREW
|
|
| 14. |
S5000213
|
[1] |
. WASHER
|
|
| 2. |
400909-00156
|
[1] |
PUMP,FUEL TRANSFER
|
|
| 2-1. |
400909-00169
|
[1] |
. PUMP,FUEL
|
|
| 2-2. |
400406-00665
|
[1] |
. FILTER
|
|
| 2-3. |
120203-00601
|
[3] |
. CLAMP
|
|
| 2-4. |
101555-00435
|
[4] |
. PAD
|
|
| 2-5. |
420108-01159
|
[1] |
. HOSE,PUMP
|
|
| 2-6. |
420108-01160
|
[1] |
. HOSE
|
|
| 2-7. |
S3456983
|
[4] |
. SCREW
|
|
| 3. |
310207-03127A
|
[1] |
HARNESS
|
|
| 3. |
310207-03127C
|
[1] |
HARNESS
|
|
| 4. |
301405-00194
|
[1] |
SWITCH
|
|
| 4. |
301405-00194A
|
[1] |
SWITCH
|
|
| 5. |
131009-00079
|
[1] |
BUSHING
|
|
| 6. |
S0515053
|
[3] |
BOLT M12X1.75X25
|
|
| 7. |
S5010713
|
[3] |
WASHER;PLAIN
|
|
| 8. |
S5102703
|
[3] |
WASHER
|
|
| 9. |
S0508653
|
[2] |
BOLT
|
|
