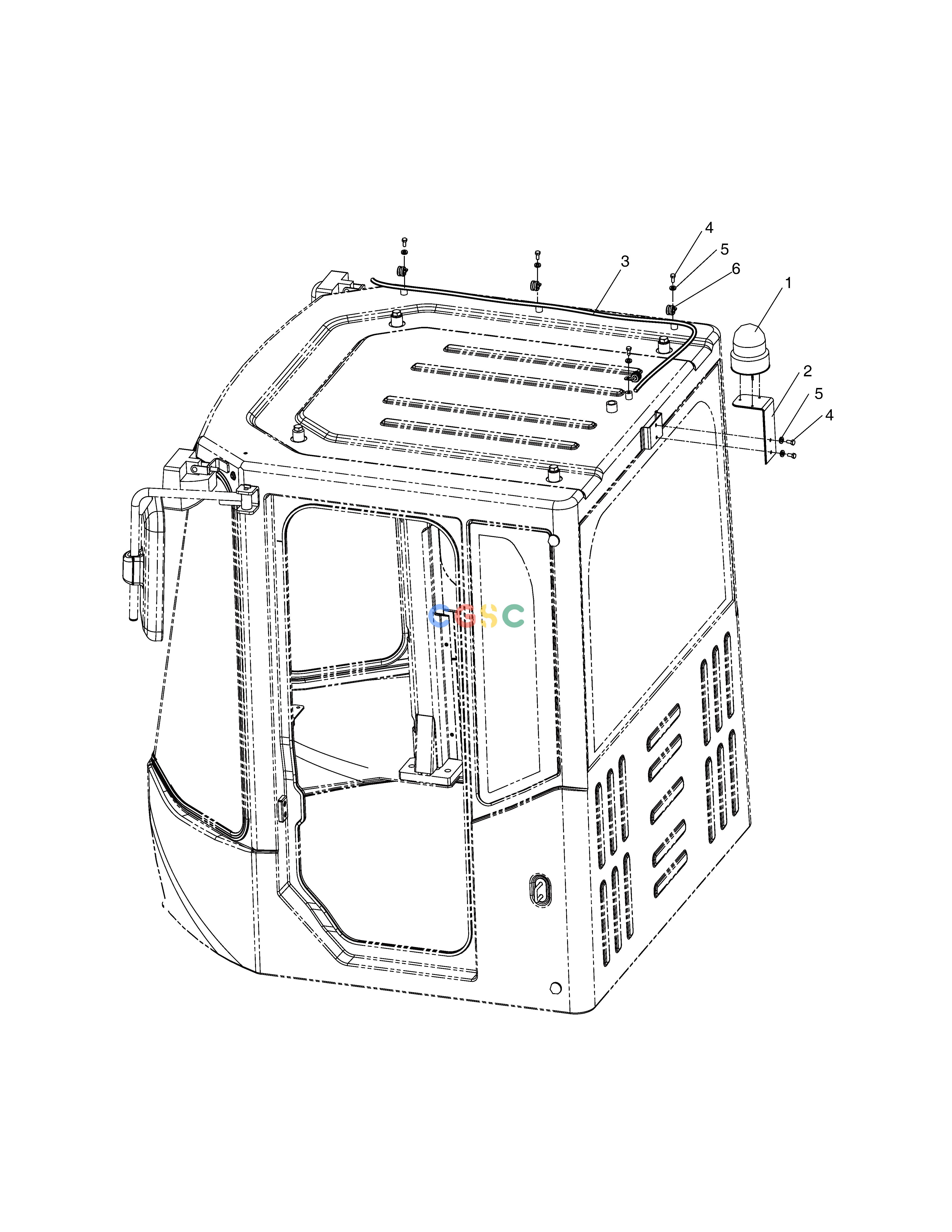

斗山零件查询ELECTRIC PARTS(3) - ROTATION BEACON SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
776 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300619-01195
|
[-] |
ELECTRIC ASSY;ROTATING BEACON
|
|
| -. |
300619-01195A
|
[-] |
ELECTRIC ASSY,CABIN
|
|
| 1. |
300705-00047
|
[1] |
BEACON,ROTATING
|
|
| 10. |
S4012533
|
[1] |
NUT
|
|
| 2. |
110402-00047A
|
[1] |
BRACKET,COMPRESSOR
|
|
| 2. |
110406-03183A
|
[1] |
BRACKET,LAMP MOUNTING;ROTATING
|
|
| 3. |
310207-02001
|
[1] |
HARNESS
|
|
| 4. |
S0508653
|
[6] |
BOLT
|
|
| 5. |
S5010513
|
[6] |
WASHER
|
|
| 5. |
S5010513
|
[7] |
WASHER
|
|
| 6. |
124-00208D1
|
[4] |
CLIP
|
|
| 7. |
110406-03184A
|
[1] |
BRACKET,LAMP;CABIN
|
|
| 8. |
131009-00052
|
[1] |
BUSHING
|
|
| 9. |
S0556163
|
[1] |
BOLT
|
|
