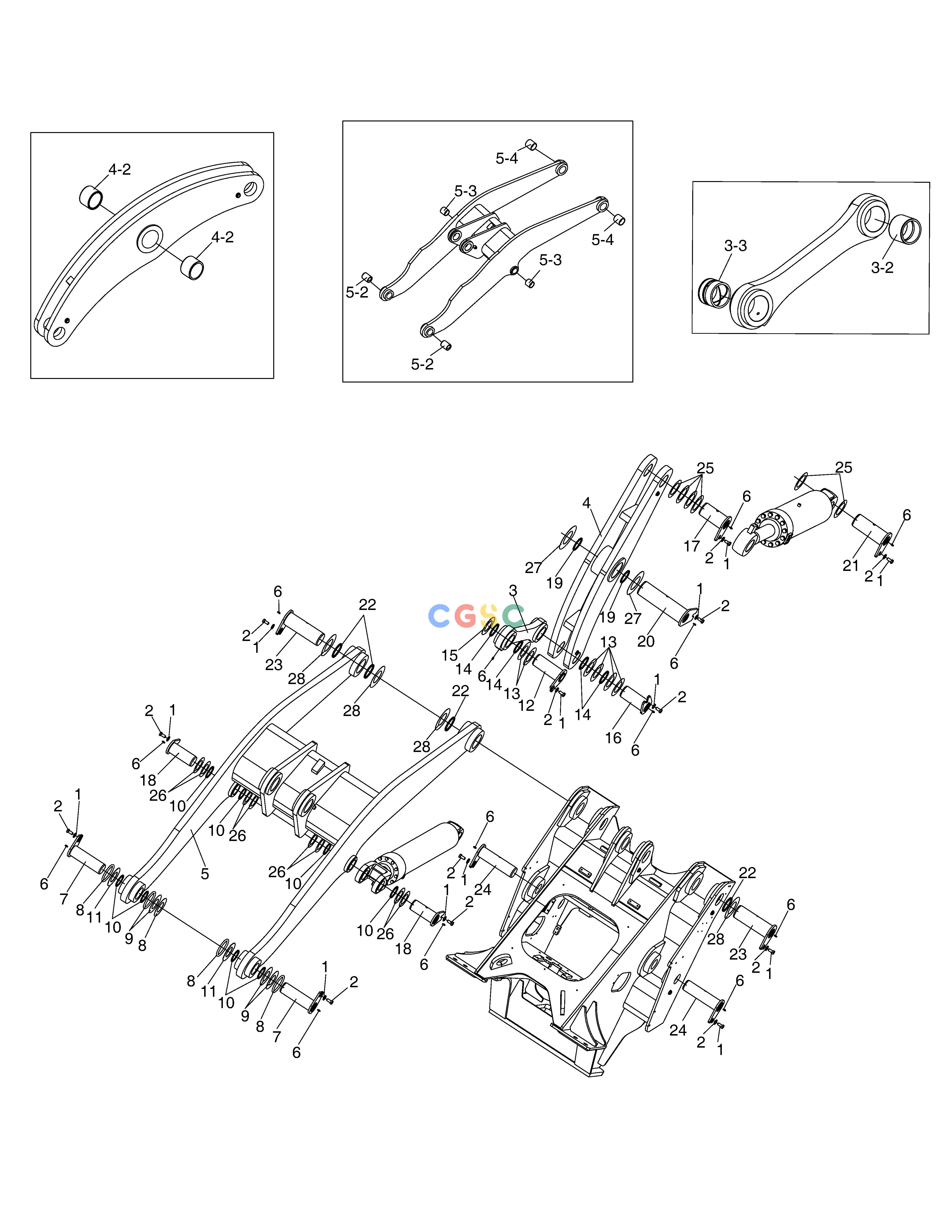

斗山零件查询FRONT ASSY-SUPER LONG BOOM SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
823 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
650102-00213
|
[-] |
|
|
| 1. |
DS0401023
|
[13] |
WASHER,PLAIN
|
|
| 10. |
DS5501005
|
[8] |
SEAL,DUST
|
|
| 11. |
DS7701298
|
[4] |
SHIM
|
|
| 12. |
120501-00373E
|
[1] |
PIN
|
|
| 13. |
DS7701475
|
[6] |
SHIM
|
|
| 14. |
DS5501006
|
[4] |
SEAL,DUST
|
|
| 15. |
DS7701476
|
[2] |
SHIM
|
|
| 16. |
120501-00387C
|
[1] |
PIN
|
|
| 17. |
120501-00386C
|
[1] |
PIN
|
|
| 18. |
120501-01309A
|
[2] |
PIN
|
|
| 19. |
DS5501015
|
[2] |
SEAL,DUST
|
|
| 2. |
S0521363
|
[13] |
BOLT
|
|
| 20. |
120501-00385B
|
[1] |
PIN
|
|
| 21. |
120501-00391C
|
[1] |
PIN
|
|
| 22. |
DS5501014
|
[4] |
SEAL,DUST
|
|
| 23. |
120501-00392C
|
[2] |
PIN
|
|
| 24. |
120501-00393C
|
[2] |
PIN
|
|
| 25. |
DS7701511
|
[6] |
SHIM
|
|
| 26. |
DS7701331
|
[8] |
SHIM
|
|
| 27. |
DS7701228
|
[2] |
SHIM
|
|
| 28. |
DS7701098
|
[4] |
SHIM
|
|
| 3. |
101539-00178A
|
[1] |
|
|
| 3-2. |
130702-00079
|
[1] |
. BUSHING
|
|
| 3-3. |
130702-00071A
|
[1] |
. BUSHING,SHAFT
|
|
| 4. |
101101-00175A
|
[1] |
|
|
| 4-2. |
131002-00158
|
[2] |
. BUSHING
|
|
| 5. |
230201-00523B
|
[1] |
|
|
| 5-2. |
130702-00070A
|
[2] |
. BUSHING
|
|
| 5-3. |
130702-00080
|
[2] |
. BUSHING
|
|
| 5-4. |
130702-00081
|
[2] |
. BUSHING
|
|
| 6. |
S6710041
|
[13] |
NIPPLE,GREASE
|
|
| 7. |
120501-00372C
|
[2] |
PIN
|
|
| 8. |
K1040552
|
[4] |
O-RING
|
|
| 9. |
DS7701474
|
[4] |
SHIM
|
|
