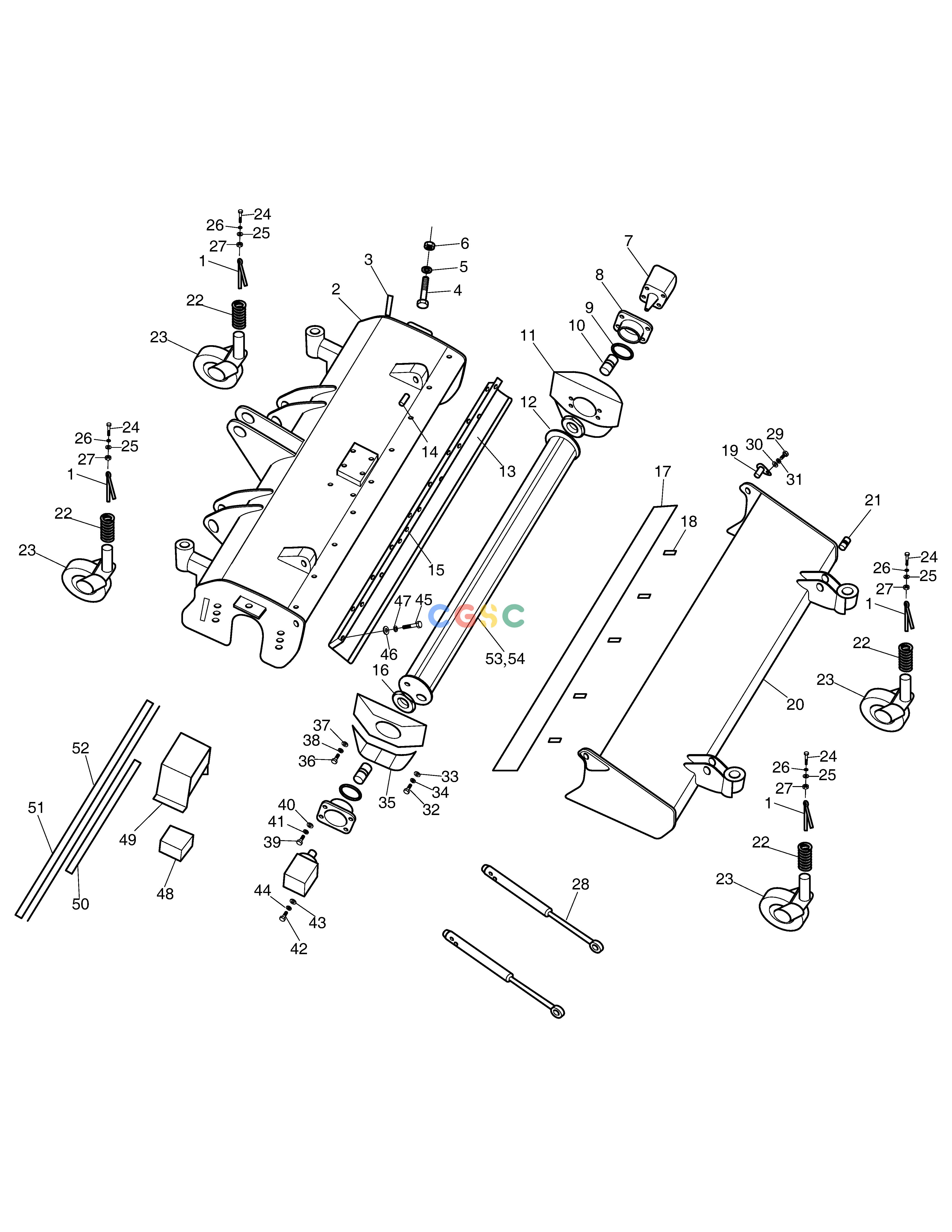

斗山零件查询FRONT CHIP SWEEPE(5T) SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
231 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
110960-00020
|
[1] |
SWEEPER,CHIP;FRONT 5T
|
|
| 1. |
100201-02964
|
[4] |
BLOCK
|
|
| 10. |
130712-02095
|
[2] |
SHAFT
|
|
| 11. |
110949-00899
|
[2] |
SLEEVE,GOVERNOR
|
|
| 12. |
110901-00188
|
[2] |
BAFFLE
|
|
| 13. |
110901-00189
|
[1] |
BAFFLE
|
|
| 14. |
120501-03804
|
[2] |
PIN;I
|
|
| 15. |
250201-04265
|
[1] |
PLATE,PRESSURE
|
|
| 16. |
110949-00900
|
[2] |
SLEEVE
|
|
| 17. |
250201-04266
|
[1] |
PLATE,WEAR
|
|
| 18. |
110927-00482
|
[5] |
HINGE
|
|
| 19. |
120501-03805
|
[2] |
PIN
|
|
| 2. |
110508-26771
|
[1] |
COVER,REAR
|
|
| 20. |
230104-02358
|
[1] |
BUCKET;FRONT
|
|
| 21. |
120501-03806
|
[2] |
PIN;II
|
|
| 22. |
111601-01058
|
[4] |
SPRING
|
|
| 23. |
900138-00739
|
[4] |
TIRE
|
|
| 24. |
120106-00891
|
[4] |
BOLT,HEX
|
|
| 25. |
120810-00295
|
[4] |
WASHER,PLAIN
|
|
| 26. |
120810-00296
|
[4] |
WASHER,SPRING
|
|
| 27. |
120301-00029
|
[4] |
NUT,CAP
|
|
| 28. |
400310-00545
|
[2] |
CYLINDER,BUCKET
|
|
| 29. |
120106-00892
|
[2] |
BOLT,HEX
|
|
| 3. |
102001-00634
|
[2] |
SCALE,LINEAR
|
|
| 30. |
120810-00297
|
[2] |
WASHER,PLAIN
|
|
| 31. |
120810-00298
|
[2] |
WASHER,SPRING
|
|
| 32. |
120106-00893
|
[4] |
BOLT,HEX
|
|
| 33. |
120810-00299
|
[4] |
WASHER,PLAIN
|
|
| 34. |
120810-00300
|
[4] |
WASHER,SPRING
|
|
| 35. |
100201-02965
|
[2] |
BLOCK,RUBBER
|
|
| 36. |
120106-00894
|
[10] |
BOLT,HEX
|
|
| 37. |
120810-00301
|
[10] |
WASHER,PLAIN
|
|
| 38. |
120810-00302
|
[10] |
WASHER,SPRING
|
|
| 39. |
120106-00895
|
[8] |
BOLT,HEX
|
|
| 4. |
120112-01727
|
[2] |
BOLT,CARTRIDGE
|
|
| 40. |
120810-00303
|
[8] |
WASHER,PLAIN
|
|
| 41. |
120810-00304
|
[8] |
WASHER,SPRING
|
|
| 42. |
120106-00896
|
[8] |
BOLT,HEX
|
|
| 43. |
120810-00305
|
[8] |
WASHER,PLAIN
|
|
| 44. |
120810-00306
|
[8] |
WASHER,SPRING
|
|
| 45. |
120106-00897
|
[9] |
BOLT,HEX
|
|
| 46. |
120810-00307
|
[9] |
WASHER,PLAIN
|
|
| 47. |
120810-00308
|
[9] |
WASHER,SPRING
|
|
| 48. |
300743-00099
|
[1] |
SOLENOID
|
|
| 49. |
102203-00130
|
[1] |
SHIELD
|
|
| 5. |
120810-00294
|
[4] |
WASHER,PLAIN
|
|
| 50. |
420207-03913
|
[2] |
PIPE,HYDRAULIC;1
|
|
| 51. |
420207-03914
|
[2] |
PIPE,HYDRAULIC;2
|
|
| 52. |
420207-03915
|
[1] |
PIPE,HYDRAULIC;3
|
|
| 53. |
120501-03807
|
[1] |
PIN
|
|
| 54. |
300709-00034
|
[54] |
BRUSH
|
|
| 6. |
120301-00028
|
[4] |
NUT,CAP
|
|
| 7. |
300506-00538
|
[2] |
MOTOR
|
|
| 8. |
110909-00077
|
[2] |
CAGE
|
|
| 9. |
110522-00128
|
[2] |
COVER,END
|
|
