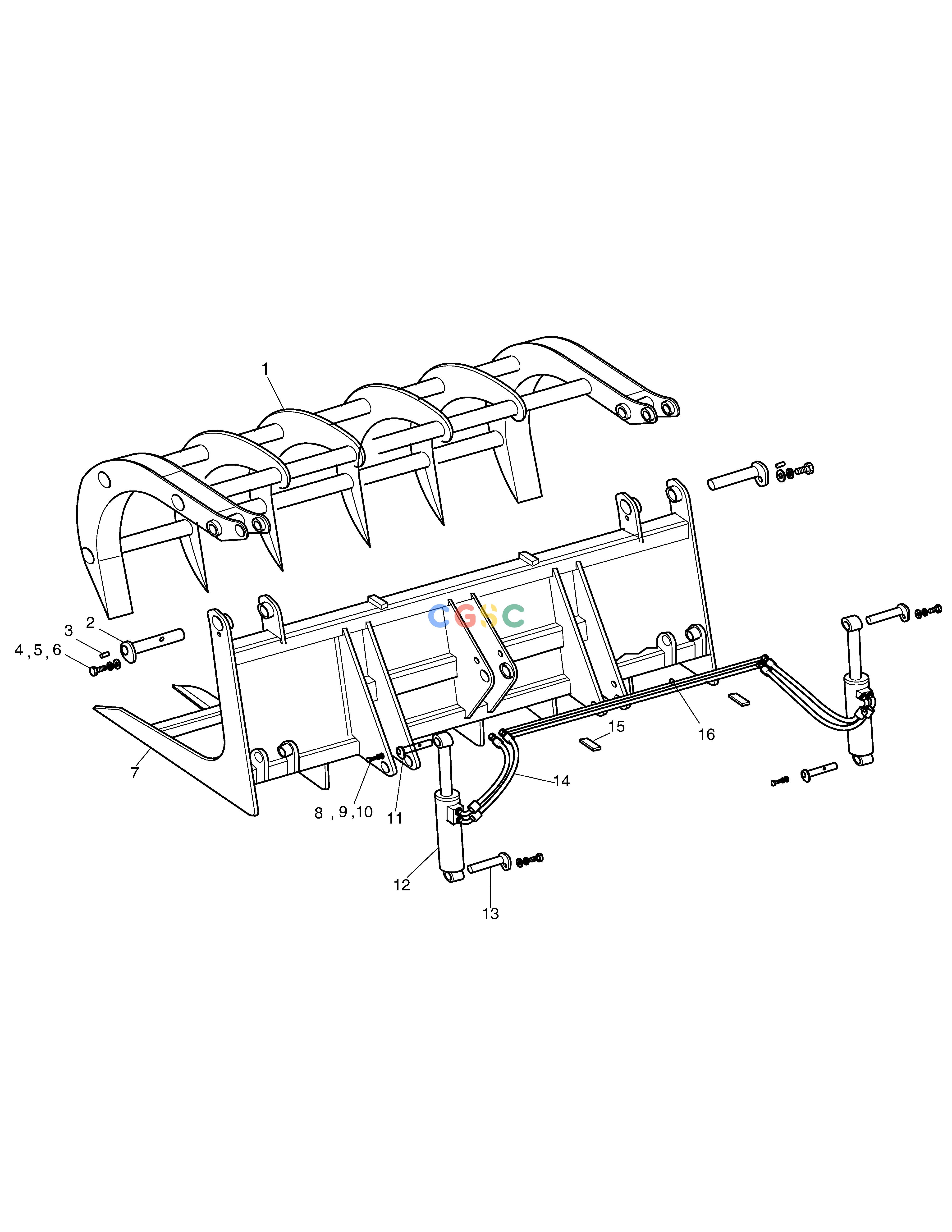

斗山零件查询GRASS GRAPPLE SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
388 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
230101-00255
|
[1] |
GRAPPLE,MULTI;GRASS GRAPPLE
|
|
| 1. |
230106-00357
|
[1] |
FORK;LOG FORK
|
|
| 10. |
S5010713
|
[4] |
WASHER;PLAIN
|
|
| 11. |
120501-03246
|
[2] |
PIN
|
|
| 12. |
400323-00391
|
[2] |
CYLINDER
|
|
| 13. |
120501-03247
|
[2] |
PIN
|
|
| 14. |
420107-00524
|
[4] |
HOSE,OIL
|
|
| 15. |
120203-00641
|
[2] |
CLAMP
|
|
| 16. |
420210-01844
|
[2] |
PIPE
|
|
| 2. |
120501-03323
|
[2] |
PIN
|
|
| 3. |
101552-00418
|
[2] |
NIPPLE,GREASE
|
|
| 4. |
S5010913
|
[2] |
WASHER
|
|
| 5. |
2114-1816A
|
[2] |
WASHER
|
|
| 6. |
S0521263
|
[2] |
BOLT M16X2.0X30
|
|
| 7. |
230104-01980
|
[1] |
BUCKET
|
|
| 8. |
S0515263
|
[4] |
BOLT;HEX
|
|
| 9. |
S5102705
|
[4] |
WASHER,SPRING
|
|
