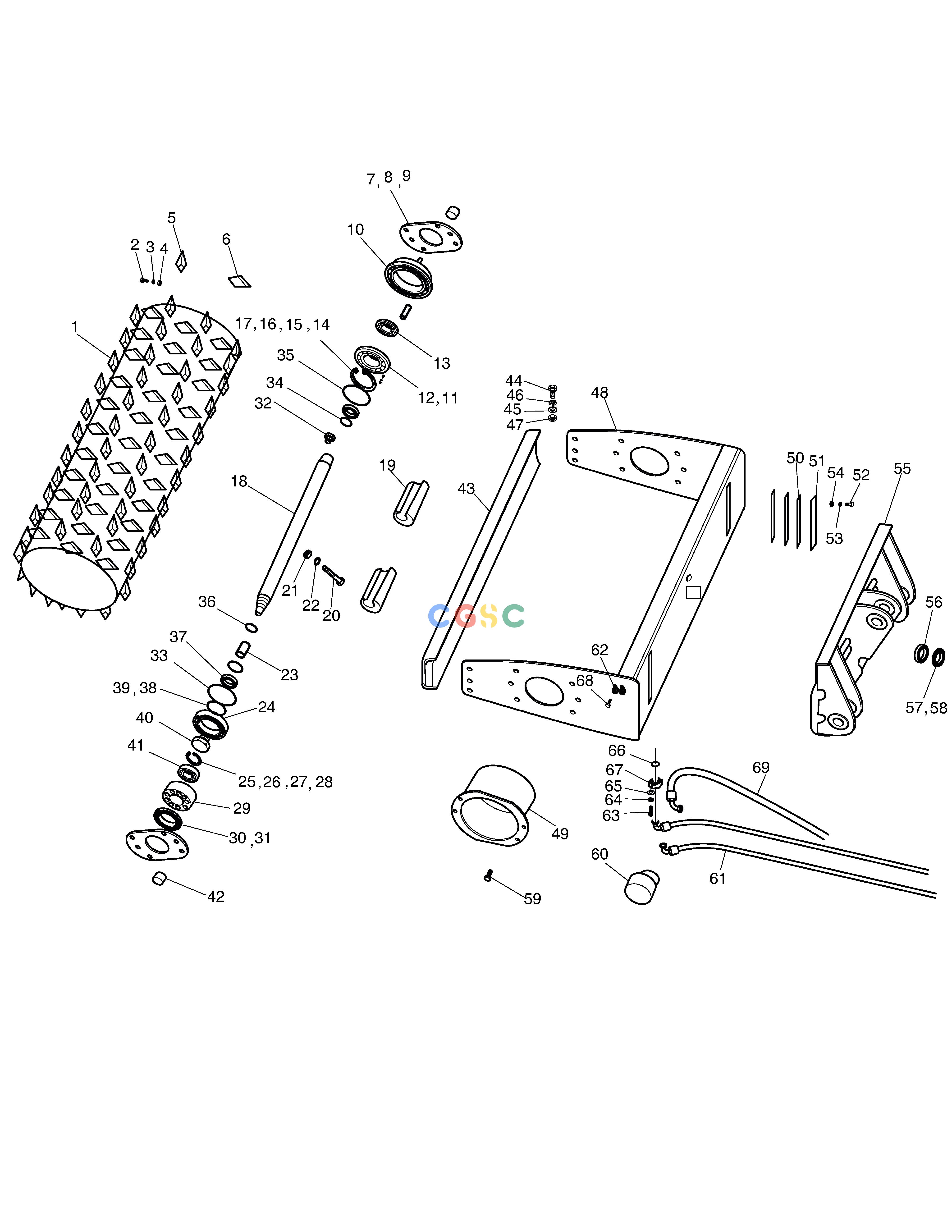

斗山零件查询ICE BREAKER SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
674 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
230101-00294
|
[1] |
ICE BREAKER;5T
|
|
| 1. |
920603-00055
|
[1] |
IRON
|
|
| 10. |
130712-02026
|
[1] |
SHAFT,DRIVE
|
|
| 11. |
401003-00848
|
[1] |
RING
|
|
| 12. |
S0515263
|
[12] |
BOLT;HEX
|
|
| 13. |
140105-00907
|
[1] |
BEARING
|
|
| 14. |
110909-00070
|
[1] |
CAGE
|
|
| 15. |
S0509063
|
[6] |
BOLT M8X1.25X25
|
|
| 16. |
S5102506
|
[12] |
WASHER,SPRING
|
|
| 17. |
S5010513
|
[6] |
WASHER
|
|
| 18. |
130712-02027
|
[1] |
SHAFT
|
|
| 19. |
800202-00188
|
[2] |
BLOCK
|
|
| 2. |
S0560566
|
[480] |
BOLT
|
|
| 20. |
120106-00820
|
[4] |
BOLT,HEX
|
|
| 21. |
120312-00614
|
[4] |
NUT;SLOTTED
|
|
| 22. |
110971-00036
|
[4] |
COTTER
|
|
| 23. |
110903-00029
|
[1] |
BOOT
|
|
| 24. |
110909-00071
|
[1] |
CAGE;RIGHT A
|
|
| 25. |
401003-00849
|
[1] |
RING,CHECK
|
|
| 26. |
S0505053
|
[8] |
BOLT
|
|
| 27. |
S5102303
|
[8] |
. WASHER
|
|
| 28. |
S5000313
|
[8] |
WASHER
|
|
| 29. |
110909-00072
|
[1] |
CAGE;RIGHT B
|
|
| 3. |
S5102705
|
[540] |
WASHER,SPRING
|
|
| 30. |
250201-04110
|
[1] |
PLATE
|
|
| 31. |
S0509063
|
[6] |
BOLT M8X1.25X25
|
|
| 32. |
100201-02797
|
[1] |
BLOCK,INLET
|
|
| 33. |
401003-00842
|
[1] |
RING;O
|
|
| 34. |
401003-00843
|
[2] |
RING;O
|
|
| 35. |
401003-00844
|
[1] |
RING;O
|
|
| 36. |
401003-00845
|
[1] |
RING;O
|
|
| 37. |
140105-00908
|
[1] |
BEARING;97516E
|
|
| 38. |
401003-00846
|
[1] |
RING;O
|
|
| 39. |
401106-00497
|
[1] |
SEAL,OIL
|
|
| 4. |
120312-00613
|
[498] |
NUT,RETAINING
|
|
| 40. |
430221-01306
|
[1] |
PLUG
|
|
| 41. |
140105-00909
|
[2] |
BEARING;3512
|
|
| 42. |
180301-00053
|
[12] |
ABSORBER
|
|
| 43. |
250101-00112
|
[1] |
PLATE,BAFFLE
|
|
| 44. |
S0521853
|
[6] |
BOLT
|
|
| 45. |
S5010913
|
[20] |
WASHER
|
|
| 46. |
2114-1816A
|
[20] |
WASHER
|
|
| 47. |
S4012933
|
[6] |
NUT
|
|
| 48. |
110406-04267
|
[1] |
BRACKET
|
|
| 49. |
430201-01691
|
[2] |
ADAPTER
|
|
| 5. |
850206-00037
|
[120] |
BLADE,CUTTER;LENGTHWAYS
|
|
| 50. |
250201-04111
|
[6] |
PLATE
|
|
| 51. |
250201-04112
|
[2] |
PLATE
|
|
| 52. |
S0527866
|
[8] |
BOLT
|
|
| 53. |
2114-1961D3
|
[8] |
WASHER;SPRING M20
|
|
| 54. |
S5011813
|
[8] |
WASHER;PLAIN M39
|
|
| 55. |
110423-08152
|
[1] |
BRACKET
|
|
| 56. |
140105-00910
|
[1] |
BEARING
|
|
| 57. |
250201-04113
|
[1] |
PLATE
|
|
| 58. |
S0521363
|
[2] |
BOLT
|
|
| 59. |
S0521653
|
[12] |
BOLT
|
|
| 6. |
850206-00038
|
[120] |
BLADE,CUTTER;CROSSWISE
|
|
| 60. |
400819-00030
|
[1] |
UNIT,POWER
|
|
| 61. |
420210-02393
|
[2] |
PIPE
|
|
| 62. |
120203-00762
|
[1] |
CLAMP
|
|
| 63. |
S0558366
|
[8] |
BOLT M10X1.5X40
|
|
| 64. |
S5102606
|
[10] |
WASHER,SPRING
|
|
| 65. |
S5010616
|
[10] |
WASHER
|
|
| 66. |
401003-00847
|
[2] |
RING;O
|
|
| 67. |
430215-01450
|
[2] |
FLANGE
|
|
| 68. |
S0558466
|
[2] |
BOLT
|
|
| 69. |
420108-01604
|
[3] |
HOSE
|
|
| 7. |
250201-04109
|
[1] |
PLATE;CONNECTING
|
|
| 8. |
S0560466
|
[32] |
BOLT
|
|
| 9. |
S5010713
|
[540] |
WASHER;PLAIN
|
|
