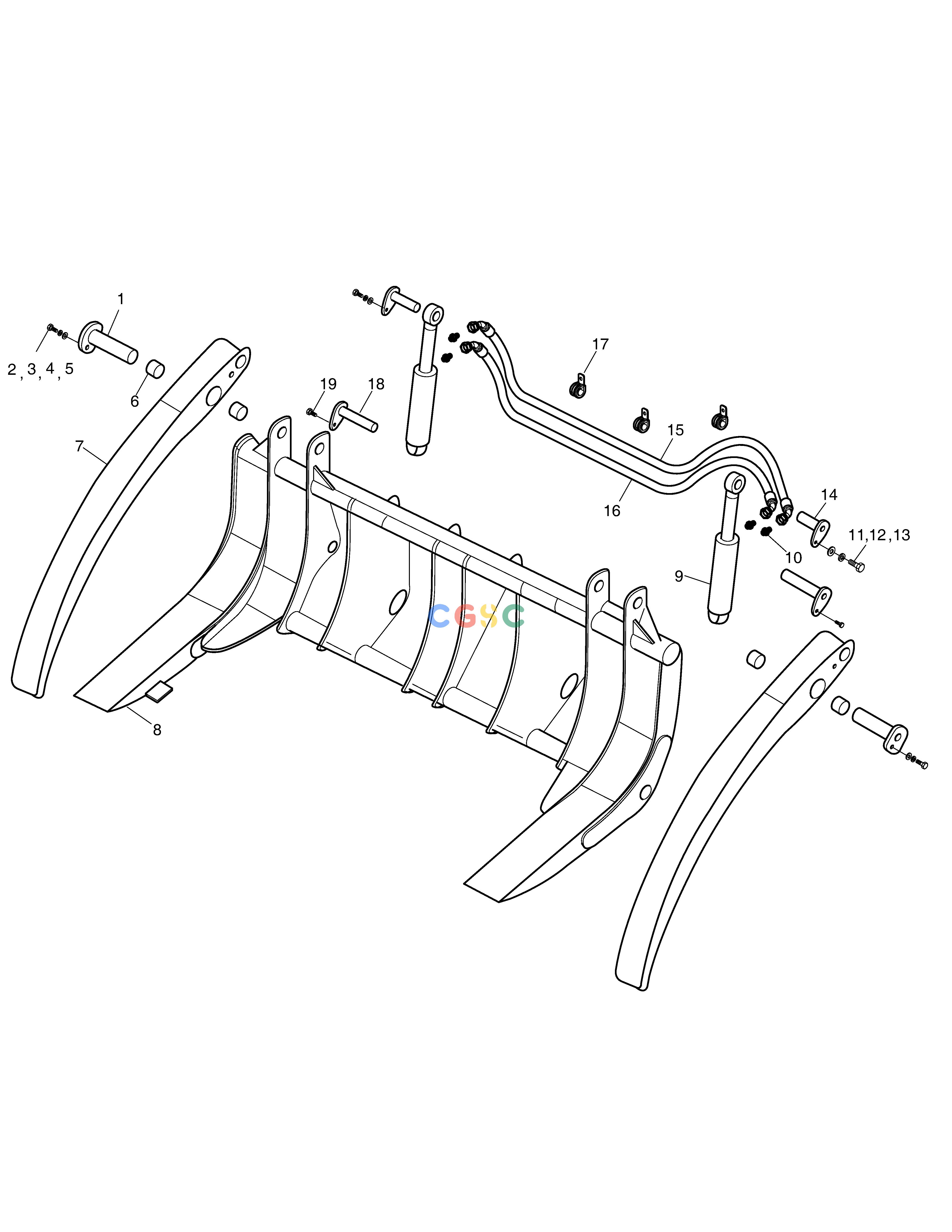

斗山零件查询LOG FORK SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
250 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
230106-00339
|
[1] |
FORK
|
|
| 1. |
120501-03327
|
[2] |
PIN
|
|
| 10. |
101552-00413
|
[4] |
NIPPLE
|
|
| 11. |
S0521063
|
[2] |
BOLT
|
|
| 12. |
S5010913
|
[6] |
WASHER
|
|
| 13. |
2114-1816A
|
[6] |
WASHER
|
|
| 14. |
120501-03478
|
[2] |
PIN
|
|
| 15. |
420108-01264
|
[4] |
HOSE
|
|
| 16. |
420210-01846
|
[2] |
PIPE
|
|
| 17. |
120203-00643
|
[3] |
CLAMP
|
|
| 18. |
120501-03479
|
[2] |
PIN
|
|
| 19. |
S0521253
|
[4] |
BOLT M16X2.0X30
|
|
| 2. |
S0521253
|
[4] |
BOLT M16X2.0X30
|
|
| 3. |
S5010913
|
[6] |
WASHER
|
|
| 4. |
2114-1816A
|
[6] |
WASHER
|
|
| 5. |
101552-00415
|
[2] |
NIPPLE,GREASE
|
|
| 6. |
101538-00025
|
[4] |
LINING
|
|
| 7. |
230201-00978
|
[2] |
ARM
|
|
| 8. |
160609-03723
|
[1] |
FRAME
|
|
| 9. |
400323-00432
|
[2] |
CYLINDER
|
|
