7892128
|
[1] |
VALVE
|
CAS

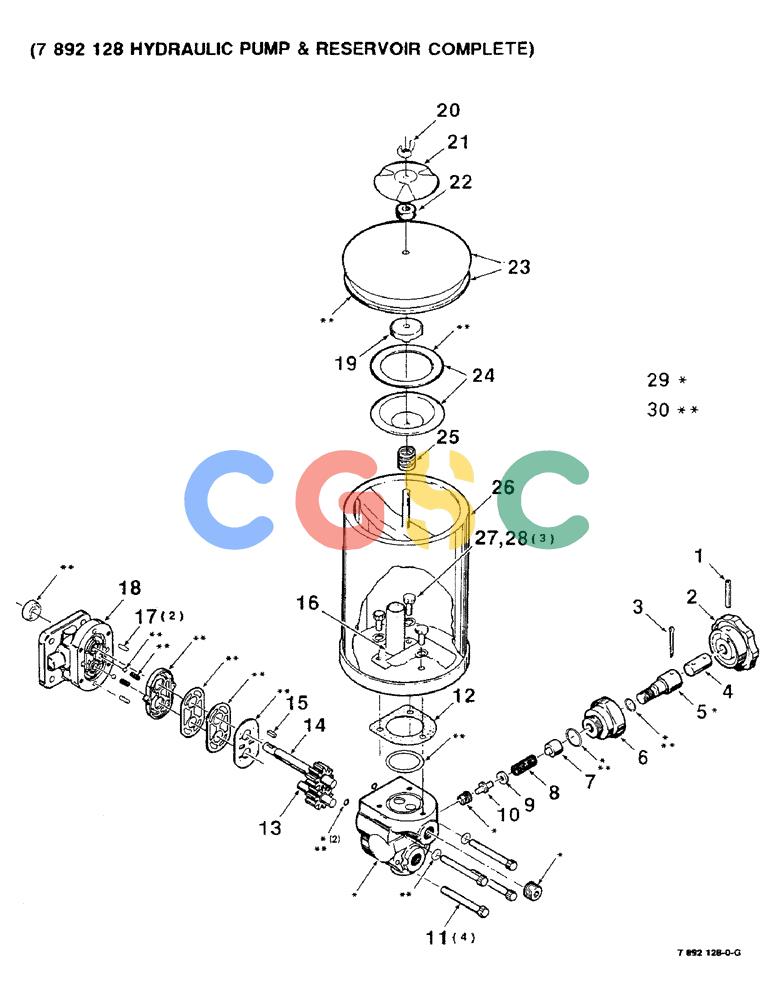

HYDRAULIC PUMP & RESERVOIR COMPLETE
|
| 1. |
19711R1
|
[1] |
PIN,3.17mm OD x 31.75mm L, Coiled
|
IH
1/8 X 1-1/4 SLOTTED SPRING PIN
|
| 2. |
8040552
|
[1] |
KNOB
|
CAS
|
| 3. |
62117
|
[1] |
PIN
|
CAS
1/8 X 1-1/4 COTTER PIN Superseded by part number: 87395
|
| 4. |
8040545
|
[1] |
ROD
|
CAS
- connecting
|
| 5. |
8040560
|
[1] |
ADJUSTMENT SCREW
|
CAS
- adjusting
|
| 6. |
8040578
|
[1] |
PLUG
|
CAS
ASSEMBLY - (Includes o-ring)
|
| 7. |
8040503
|
[1] |
GUIDE
|
CAS
- spring
|
| 8. |
8040495
|
[1] |
SPRING
|
CAS
|
| 9. |
730820
|
[1] |
SHIM
|
CAS
Superseded by part number: 64759
|
| 10. |
731679
|
[1] |
VALVE POPPET
|
CAS
POPPET ASSEMBLY Superseded by part number: H83931
|
| 11. |
7071871
|
[4] |
12 PT SCREW
|
HFI
1/4-20 X 2-1/4 FLANGED 12 POINT SCREW Superseded by part number: 166-11
|
| 12. |
730259
|
[1] |
GASKET
|
CAS
- reservoir Superseded by part number: 668399R1
|
| 13. |
8040537
|
[1] |
GEAR
|
CAS
- idler Superseded by part number: 668389R91
|
| 14. |
8040529
|
[1] |
GEAR
|
CAS
- drive Superseded by part number: 668388R91
|
| 15. |
8040487
|
[1] |
KEY
|
CAS
|
| 16. |
730275
|
[1] |
FILTER
|
CAS
ASSEMBLY Superseded by part number: 668398R91
|
| 17. |
730804
|
[2] |
DOWEL,1/4" x 1/2"
|
CAS
PIN Superseded by part number: 37-148
|
| 18. |
731067
|
[1] |
LARGE PLATE
|
CAS
PLATE ASSEMBLY - front Superseded by part number: H646265
|
| 19. |
730895
|
[1] |
CAP
|
CAS
- filter Superseded by part number: 668396R1
|
| 20. |
NLS
|
[1] |
NO LONGER SERVICED
|
BAS
1/4-20 WING NUT
|
| 21. |
668394R1
|
[1] |
CAP
|
CAS
- breather
|
| 22. |
730887
|
[1] |
FILTER
|
CAS
- air Superseded by part number: 668400R1
|
| 23. |
733774
|
[1] |
COVER
|
CAS
LID AND GASKET - reseroir Superseded by part number: 668393R11
|
| 24. |
733766
|
[1] |
FILTER
|
CAS
FILER AND GASKET ASSEMBLY Superseded by part number: 668395R11
|
| 25. |
2700073
|
[1] |
SPRING
|
CAS
- compression Superseded by part number: 823148C1
|
| 26. |
CAS2700072
|
[1] |
RESERVOIR, HYDRAULIC
|
CAS
RESERVOIR - hydraulic
|
| 27. |
2700074
|
[3] |
12 PT SCREW,Flg, 5/16" - 18 x 5/8", Gr 8
|
CAS
5/16-18 X 5/8 FLANGED 12 POINT SCREW Superseded by part number: 166-23
|
| 28. |
705020
|
[3] |
LOCK WASHER
|
CAS
5/16" Superseded by part number: 492-11031, 492-11031, NLS
|
| 29. |
8040479
|
[1] |
LARGE PLATE
|
CAS
BACK PLATE REPAIR KIT, Includes items in art marked with asterisk
|
| 30. |
8040586
|
[1] |
SEAL KIT
|
CAS
SEAL REPAIR KIT, Includes items in art marked with double asterisk Superseded by part number: 200420C91
|
