HK50393
|
[1] |

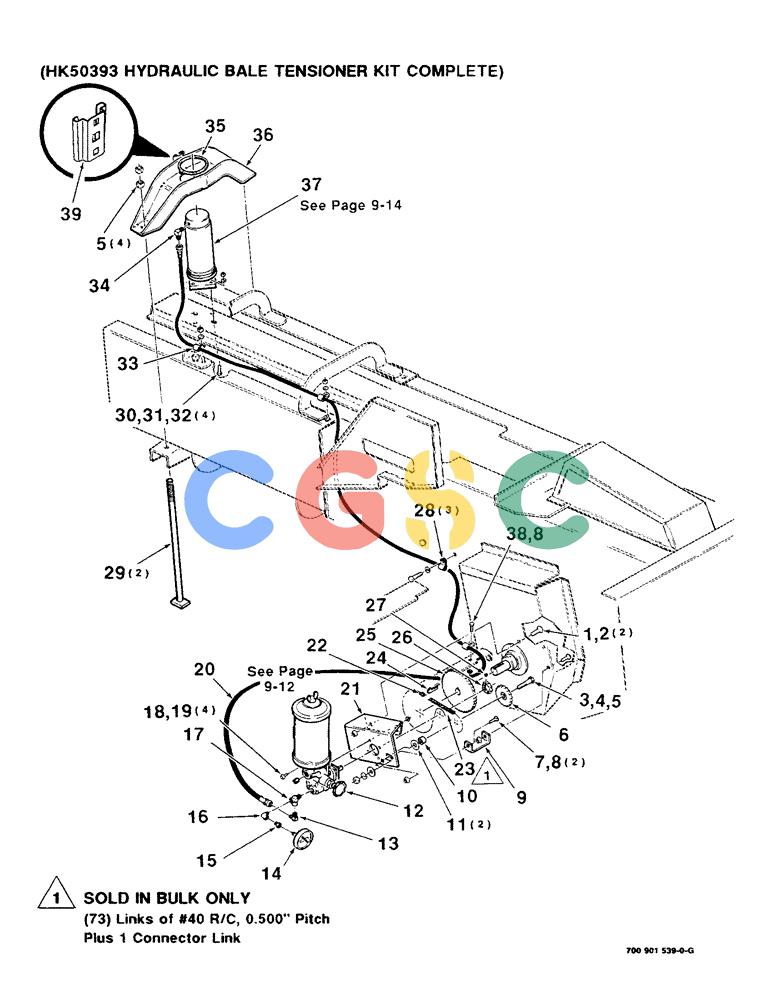

HYDRAULIC BALE TENSIONER KIT COMPLETE
|
|
| 1. |
433-816
|
[2] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5
|
CAS
1/2-13 X 1 RHSNB Superseded by part number: 280486
|
| 2. |
704254
|
[2] |
NUT,Flg, USR, 1/2"-13
|
CAS
1/2-13 HFSLN Superseded by part number: 86512371
|
| 3. |
7701659
|
[1] |
BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5
|
CAS
5/8-11 X 2-1/2 C Superseded by part number: 280233
|
| 4. |
705061
|
[1] |
PLUG
|
NNA
5/8" Superseded by part number: 492-11062
|
| 5. |
704130
|
[5] |
NUT,5/8"-11, G5
|
CAS
5/8-11 H Superseded by part number: 280374
|
| 6. |
88732
|
[1] |
BEARING
|
CAS
SPROCKET - idler 40B18 Superseded by part number: 820963C91
|
| 7. |
7700065
|
[2] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5
|
CAS
3/8-16 X 3/4 RHSNB Superseded by part number: 280430
|
| 8. |
704247
|
[3] |
NUT
|
CAS
3/8-16 HFSLN Superseded by part number: 231-5146, 231-5146, 280736, 231-5146, 280736, 692965, 231-5146, 280736, 692965, 87362
|
| 9. |
700112640
|
[1] |
SUPPORT
|
CAS
BRACE - strap Superseded by part number: 700136685, 700136684
|
| 10. |
312801
|
[1] |
SPACER
|
CAS
Superseded by part number: 320993R1
|
| 11. |
705582
|
[2] |
WASHER
|
CAS
5/8 HARDENED PLAIN WASHER Superseded by part number: 396-21066, 396-21066, NLS
|
| 12. |
7892128
|
[1] |
VALVE
|
CAS
PUMP - hydraulic
|
| 13. |
7746365
|
[1] |
ELBOW
|
CAS
90 DEGREE ELBOW Superseded by part number: 235131
|
| 14. |
700703817
|
[1] |
GAUGE
|
CAS
- pressure
|
| 15. |
221-86
|
[1] |
REDUCER,Hex, 3/8" x 1/4" NPT
|
CAS
BUSHING - reducer,HOSE
|
| 16. |
846394
|
[1] |
ELBOW
|
CAS
3/8 STREET ELL Superseded by part number: 86521965
|
| 17. |
7046113
|
[1] |
TEE
|
CAS
SERVICE TEE Superseded by part number: 217-1063
|
| 18. |
7883333
|
[4] |
BOLT,Hex, 5/16" - 18 x 1", Gr 120M
|
CAS
5/16-18 X 1 HWHMS Superseded by part number: 121-108
|
| 19. |
231-5145
|
[4] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
5/16-18 HFSLN Superseded by part number: 72187067, 145458
|
| 20. |
700706300
|
[1] |
FLEXIBLE HOSE
|
CAS
HOSE - hydraulic
|
| 21. |
700112644
|
[1] |
MOUNTING PARTS
|
CAS
MOUNTING - pump Superseded by part number: 700136685, 700136684
|
| 22. |
241-1314
|
[1] |
CHAIN LINK
|
CAS
LINK - connector, #40 R/C Superseded by part number: 25195
|
| 23. |
1790D
|
[1] |
CHAIN (AG)
|
IH
CHAIN - roller, #40 (10 foot bulk) Superseded by part number: 1790DX
|
| 24. |
61424
|
[1] |
KEY
|
CAS
1/4 X 1-1/4 KEY - gib
|
| 25. |
700112643
|
[1] |
SPROCKET ASSY.
|
CAS
SPROCKET - 40B46
|
| 26. |
7851082
|
[1] |
SPROCKET ASSY.
|
CAS
SPROCKET - 40B10
|
| 27. |
69765
|
[1] |
SET SCREW,Hex Soc, 1/4"-20 x 3/8"
|
CAS
1/4-20 X 3/8 CPHSSS Superseded by part number: 83-1256
|
| 28. |
755744
|
[3] |
CLAMP
|
CAS
- hose Superseded by part number: 86594406
|
| 29. |
700112641
|
[2] |
BOX
|
CAS
- tension Superseded by part number: CAS700112641, CAS700112641, ZED700112641
|
| 30. |
702035
|
[4] |
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd
|
CAS
3/8-16 X 1-1/4 C
|
| 31. |
705038
|
[4] |
CONTROL VALVE
|
CAS
3/8" Superseded by part number: 492-11038
|
| 32. |
704023
|
[4] |
NUT,3/8"-16, G5
|
CAS
3/8-16 H Superseded by part number: 280136
|
| 33. |
700703825
|
[1] |
CLAMP
|
HFI
- hose
|
| 34. |
846170
|
[1] |
ELBOW
|
CAS
90 DEGREE ELBOW Superseded by part number: 578384
|
| 35. |
7852148
|
[1] |
RING, SNAP
|
IH
RING - retainer
|
| 36. |
700108433
|
[1] |
SUPPORT
|
CAS
TRUSS (Includes item 39)
|
| 37. |
700703899
|
[1] |
CYLINDER
|
CAS
- hydraulic, tensioner
|
| 38. |
703199
|
[1] |
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
|
CAS
3/8-16 X 3/4 C
|
| 39. |
A59457
|
[1] |
BRACKET
|
CAS
Superseded by part number: 847590
|
